EZ Series® Plugger Post panel provides convenient wiring connection and easy installation.

The EZ Series® Plugger Post is an easy to install control panel providing a convenient wiring connection for use with one single phase pump in effluent and sewage installations. It features a receptacle to accept a 120V or 240V pump and piggy-back pump switch.

The mounting post features an access door and includes a Simplex Installation Kit (2" hub assembly, 2" cord seal to seal 1-4 cables, 3/4" hub assembly) and Riser Mounting Kit (2: hub assembly, 2X6" PVC pipe and connecting hardware, and conduit for routing the pump and float from the tank riser to the post. The post can be mounted in the ground, directly over a 4x4, or conduit.

This system includes the Tank Alert® AB indoor remote alarm and 15' SJE SignalMaster® control switch.

EZ Series® Plugger Post Panel Features

• Receptacle accepts 120V or 240V pump and piggy-back pump switch plugs
• Includes Tank Alert® AB remote indoor alarm
• Includes 15' SJE SignalMaster® control switch
• 34" mounting post has access door for easy wiring
• Includes Simplex Installation Kit:
  • 2" hub assembly
  • 2" cord seal (seals 1-4 cables)
  • 3/4" hub assembly
• Includes Riser Mounting Kit:
• 2" hub assembly
• 2x6" PVC pipe and connecting hardware
• Conduit for routing pump and float from tank riser to post
• Elapsed time meter

UL/cUL Listed

Five-Year Limited Warranty

SJE-Rhombus EZ Series® Plugger Post- Single Phase Simplex Pump Control Panel Technical Details

• ENCLOSURE:10 x 8 x 6 inches (25.4 x 20.32 x 15.24 cm) NEMA 4X (ultraviolet stabilized thermoplastic for indoor/outdoor use)
• The EZ Series® simplex control panel is designed to control one 120, or 240 VAC single phase pump in sewage installations.

SJE-Rhombus EZ Series® Plugger Post- Single Phase Simplex Pump Control Panel Features

• RECEPTACLE FOR PUMP AND PUMP CIRCUIT:
  120V or 240V
• RISER EXTENSION COUPLING AND WASHERS
• CORD SEAL:
  Custom engineered to provide liquid tight seal and provide strain relief for pump and float cords
• ELECTRICAL CONDUIT HUB
• UL/cUL Listed
• Five-year limited warranty

SJE-Rhombus EZ Series® Plugger Post- Single Phase Simplex Pump Control Panel Components

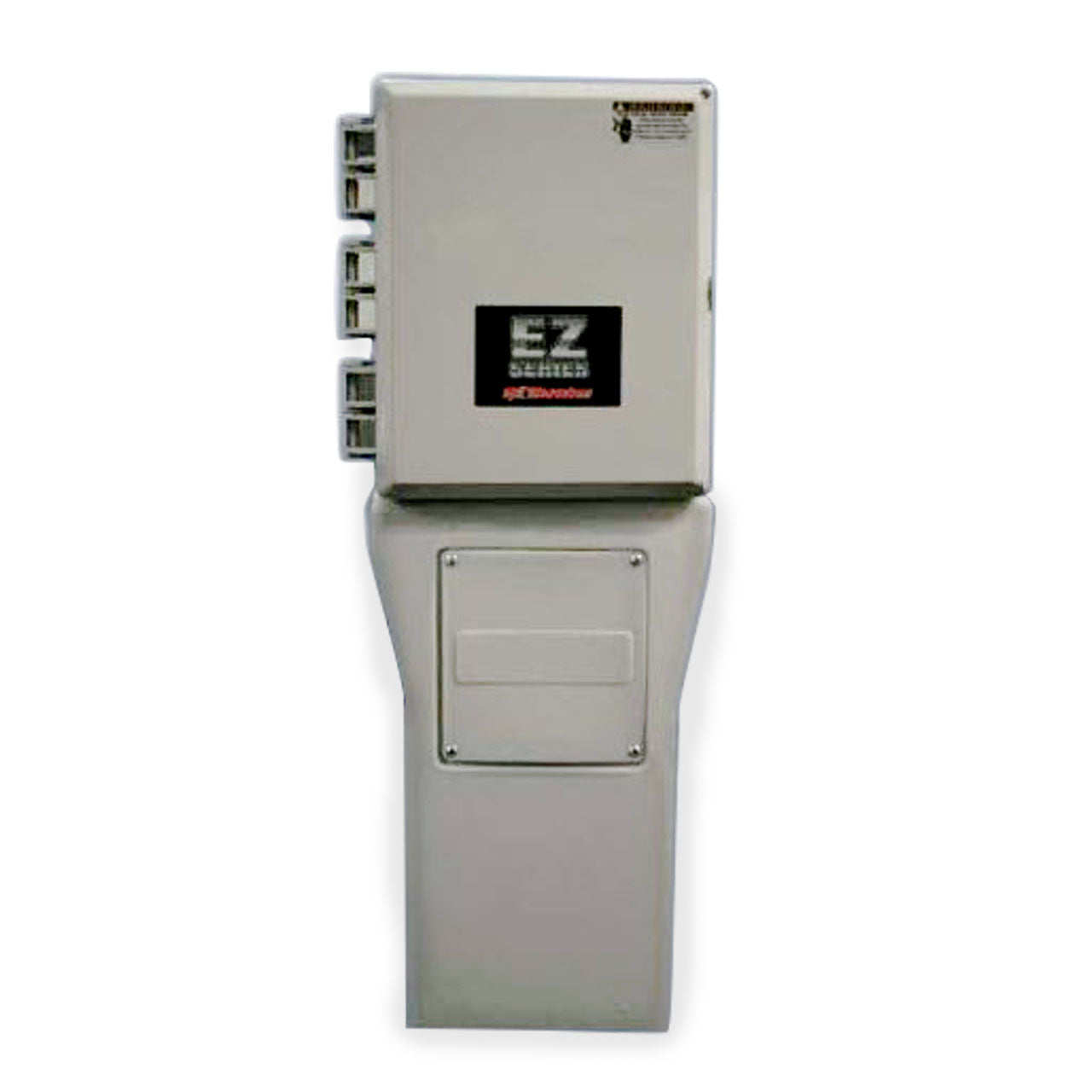

1. Enclosure measures 10 x 8 x 6 inch (25.40 x 20.30 x 15.2 cm) with removable mounting feet, NEMA 4X rated, ultraviolet stabilized thermoplastic for indoor and outdoor use.
2. Removable Plate for easy wiring/installation.
3. Receptacle for use with piggy-back pump switch.
4. Simplex Installation Kit:
• 2" Hub Assembly and Cord Seal for pump switch, pump, and alarm float.
• 3/4" Hub Assembly for incoming power for pump and alarm wiring (must be sealed to prevent gases and moisture from entering enclosure).
5. Incoming Power and Indoor Remote Alarm Terminal Block
6. Mounting Post.
7. Access Door.
8. Ground Lug.
9. Riser Mounting Kit (not shown):
• 2" Hub Assemblies (2)
• 2" x 6" PVC pipe and connecting hardware
• Conduit for routing pump and float from tank riser to post

NOTE: Schematic/Wiring Diagram and Pump Specification Label are located inside the panel

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

SJE-Rhombus EZ Series® - Plugger Post- Single Phase Simplex Pump Control Panel Resources

SJE-Rhombus EZ Series® Plugger Post- Single Phase Simplex Pump Control Panel Catalog Page

SJE-Rhombus EZ Series® Plugger Post- Single Phase Simplex Pump Control Panel Installation Instructions

SJE-Rhombus EZ Series® Plugger Post- Single Phase Simplex Pump Control Panel Features
