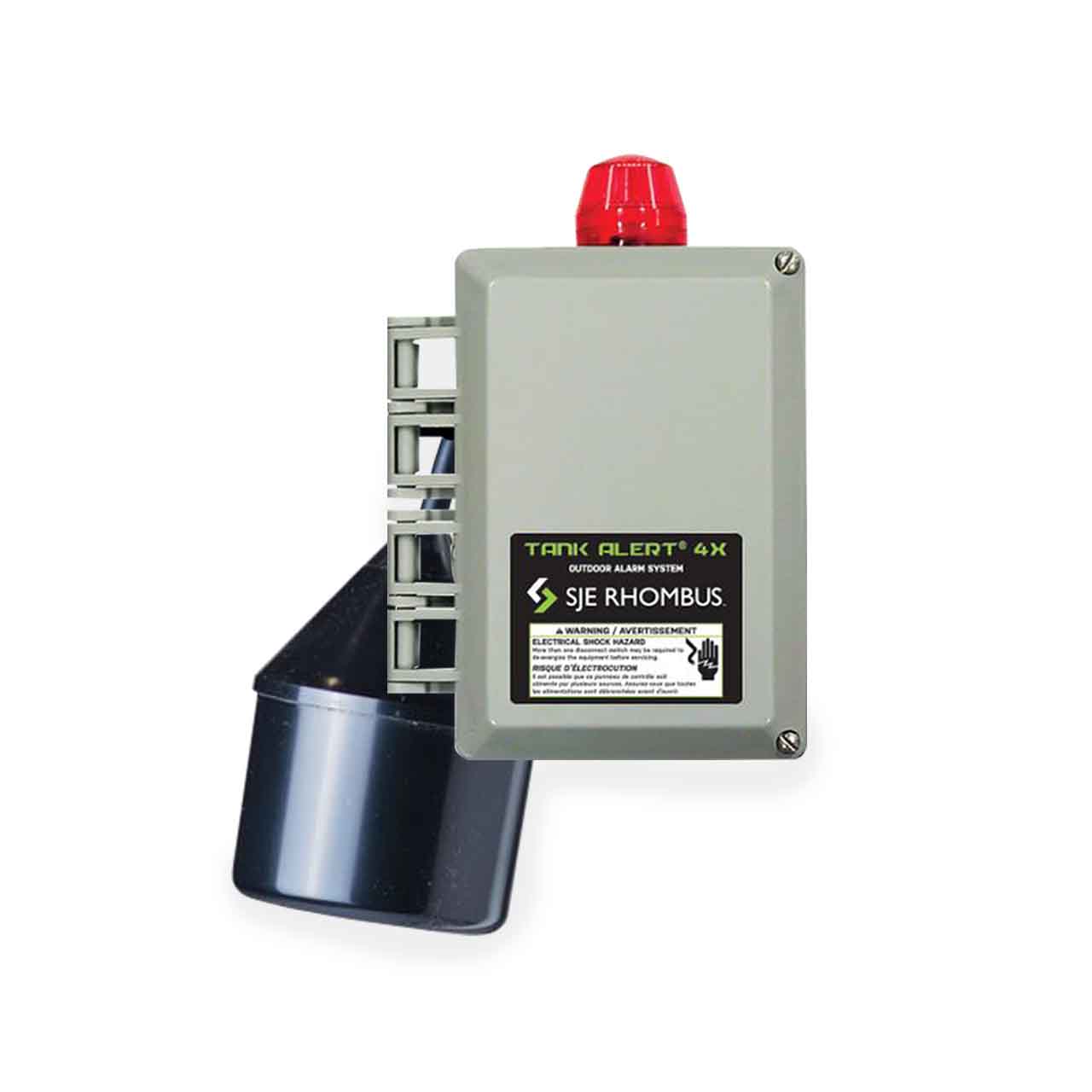

SJE-Rhombus 4X-01H Tank Alert 4X 120 VAC w/15’ Sensor Float® High Level
SJE-Rhombus 4X-01H Tank Alert 4X 120 VAC w/15’ Sensor Float® High Level
SKU : SJE1008023
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
DISCONTINUED: SJE Alarm Systems
SJE-Rhombus Tank Alert 4X Alarm System Description
Easy-to-Install Liquid Level Alarm System which has a NEMA 4X enclosure for indoor or outdoor use.
Tank Alert® alarms provide audio/visual warning of potential threatening liquid level conditions.
The Tank Alert® 4X indoor/outdoor alarm system provides audio/visual warning of potential threatening liquid level conditions in lift pump chambers, sump pump basins, holding tanks, sewage, agricultural and other non-potable water applications.
If an alarm condition occurs, the stainless steel alarm horn sounds and red beacon activates. The horn can be turned off, but the alarm beacon remains on until the condition is remedied. Once the condition is cleared the alarm will automatically reset.
SJE-Rhombus Tank Alert 4X Alarm System Typical Applications
- Lift Pump Chambers
- Sump Pump Basins
- Holding Tanks
- Sewage, Agricultural and other Water Applications
SJE-Rhombus Tank Alert 4X Alarm System Features
- NEMA 4X Enclosure Rated for Indoor or Outdoor Use.
- Automatic Alarm Reset and Alarm Test/Normal/Silence Switch.
- Alarm Horn Sounds at 88 Decibels at 10 feet (3 meters)
- Alarm System (when installed on separate circuit) Operates Even if the Pump Circuit Fails
- Dual Safety Certification for the United States and Canada
- Five-Year Limited Warranty
Specifications
Specifications
SJE-Rhombus Tank Alert 4X Alarm System Specifications
- VOLTAGE: 120 VAC, 50/60 Hz
- ALARM ENCLOSURE: 6.4 x 5.3 x 5 inch (16.2 x 13.5 x 13.34 cm), NEMA 4X, Indoor-Outdoor, Weatherproof, UV Stabilized Thermoplastic
- ALARM HORN: 88 Decibels at 10 feet (3 meters),
- ALARM BEACON: UL Listed, Type 4X Beacon Assembly.
- AUXILIARY ALARM CONTACTS (OPTIONAL): 120 VAC, 5 Amps Max, 50/60 Hz
- FLOAT SWITCH: SJE Sensor Float Control Switch with Mounting Clamp.
- CABLE: 15 feet (4.57 meters), Flexible 18 Gauge, 2 Conductor (UL) SJOW, Water-Resistant (CPE)
- FLOAT: 2.74 Inch Diameter x 4.83 Inch Long (7cm x 12.3 cm), High Impact, Corrosion Resistant Polypropylene Housing for use in Sewage and Non-Potable Water up to 140°F (60°C).
- MAXIMUM WATER DEPTH: 30 feet (9 meters), 13 psi
- ELECTRICAL: 5 Amps, 125 VAC/250 VAC, 50/60 Hz
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
SJE-Rhombus Tank Alert 4X Alarm System Product Resources
SJE-Rhombus Tank Alert 4X Alarm System Catalog Page
SJE-Rhombus Tank Alert 4X Alarm System Installation Instructions
SJE-Rhombus Mercury Restricted State Map (See next document for mercury alternatives)
