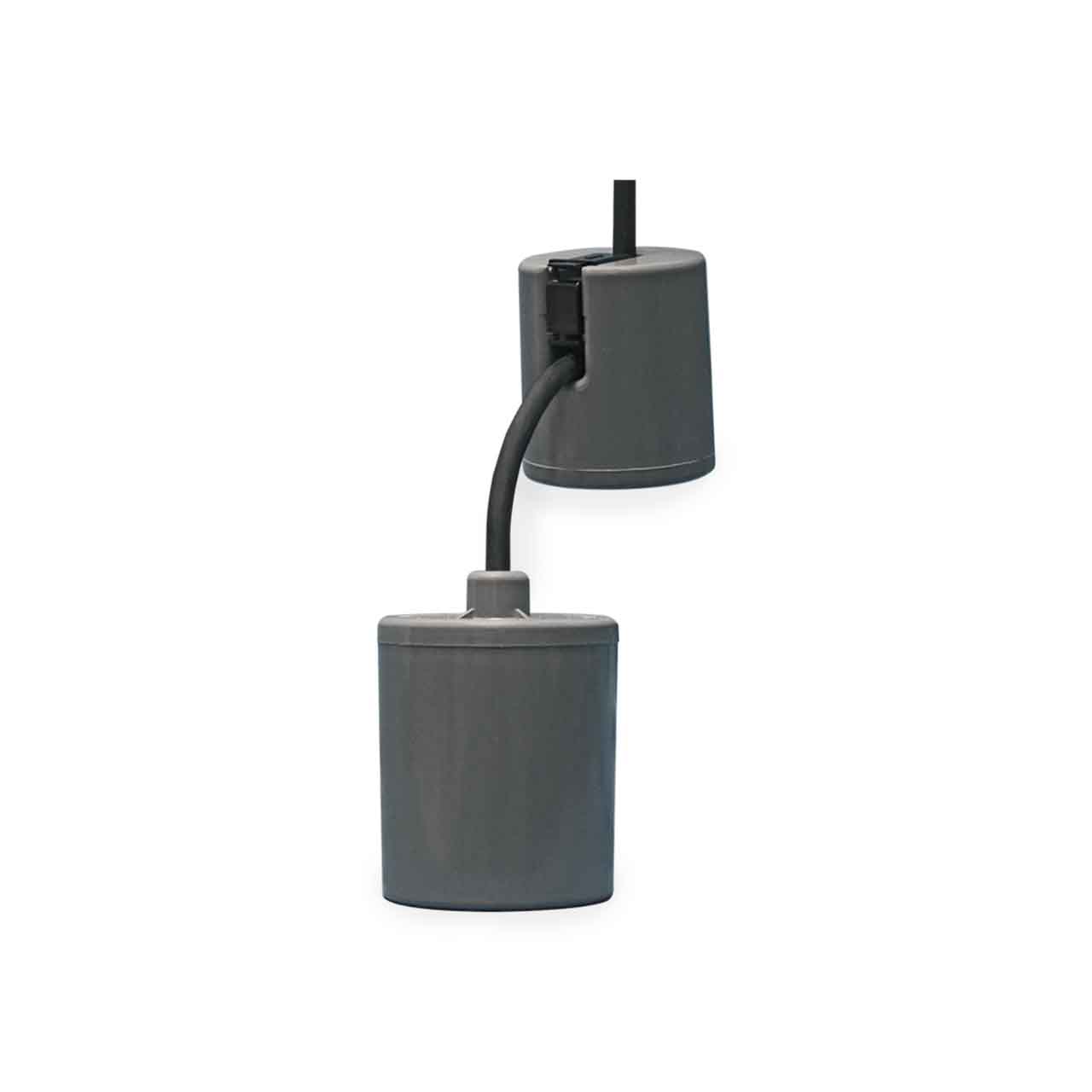

SJE-Rhombus 30PMWPSWE PumpMaster WPS Pump Switch Pump Up or Down 30' Cord Weighted Externally
SJE-Rhombus 30PMWPSWE PumpMaster WPS Pump Switch Pump Up or Down 30' Cord Weighted Externally
SKU : SJE1053697
In Stock Quantity:16
:
Brand
:
Regular price
$156.85 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
SJE-Rhombus PumpMaster® WPS Pump Switch Description
CSA Certified Potable Water Switch Mechanically-Activated, Wide Angle Float Switch for Potable Water Applications.
The SJE PumpMaster® WPS is a mechanically-activated, wide-angle float switch providing automatic control in potable water and water applications. It provides direct control of pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC or control applications as low as 120 VAC, 100 Ma.
It is CSA Certified to meet NSF/ANSI 61 standard for use in potable water and approved for use in tanks of 250 US gallons (950L) in volume or greater per float.
It can be wired to work in either pump down (normally open) or pump up (normally closed) applications. It is not sensitive to rotation or turbulence allowing it to be used in both calm and turbulent applications.
SJE-Rhombus PumpMaster® WPS Pump Switch Typical Application
- Potable Water Applications
- Water Applications
SJE-Rhombus PumpMaster® WPS Pump Switch Typical Application
- Potable Water Applications
- Water Applications
SJE-Rhombus PumpMaster® WPS Pump Switch Features
- Controls Pump up to 1/2 HP at 120 VAC and 1 HP at 230 VAC or Control Applications as Low as 120 VAC, 100mA.
- CSA Certified to Meet NSF/ANSI 61 Standard for use in Potable Water. Approved for use in Tanks of 250 US Gallons (950L) in Volume or Greater Per Float.
- Heavy-Duty Contacts.
- Adjustable Pumping Range of 7 to 36 Inches (18 -91 cm)
- For Direct Wiring Applications.
- Can be Wired to Work in Either Pump Down (normally open) or Pump Up (normally closed) Applications (Single Pole, Double Throw)
- Includes External Cable Weight
- Boxed Packaging is Standard
- CSA Certified for Potable Water
- Five-Year Limited Warranty
Specifications
Specifications
SJE-Rhombus PumpMaster® WPS Pump Switch Specifications
- CABLE: Flexible 16 Gauge, 3 Conductor (UL, CSA) SJOW, Water-Resistant (CPE)
- FLOAT: 3.05" Diameter x 3.56" Long (7.75 x 9.04 cm) High Impact, Corrosion Resistant, PVC Housing for Use in Sewage and Water up to 140°F (60°C)
- ELECTRICAL:
- 120/230 VAC 50/60 Hz
- 13 FLA, 85 LRA
NOTE: This switch must be used with pumps that provide integral thermal overload protection.
MINIMUM ELECTRICAL LOAD: 120 VAC, 100 mA
NOTE: This Switch is not Intended to Control Non-Arcing Loads
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
SJE-Rhombus PumpMaster® WPS Pump Switch Product Resources
SJE-Rhombus PumpMaster® WPS Pump Switch Catalog Page
