SJE-Rhombus 30DFD1WP Double Float Pump Switch 120V Pump Down 30' Cord W/ Plug
SJE-Rhombus 30DFD1WP Double Float Pump Switch 120V Pump Down 30' Cord W/ Plug
SKU : SJE1002054
In Stock Quantity:0
:
Brand
:
Regular price
$289.09 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
SJE-Rhombus Double Float Pump Switch Descriptions
Mercury activated, wide-angle switch designed to control pumps up to 1 HP at 120 VAC and 2 HP at 230 VAC.
The Double Float® pump switch is designed to directly control pumps up to 1HP at 120 VAC and 2HP at 230 VAC in non-potable water, water and sewage applications.

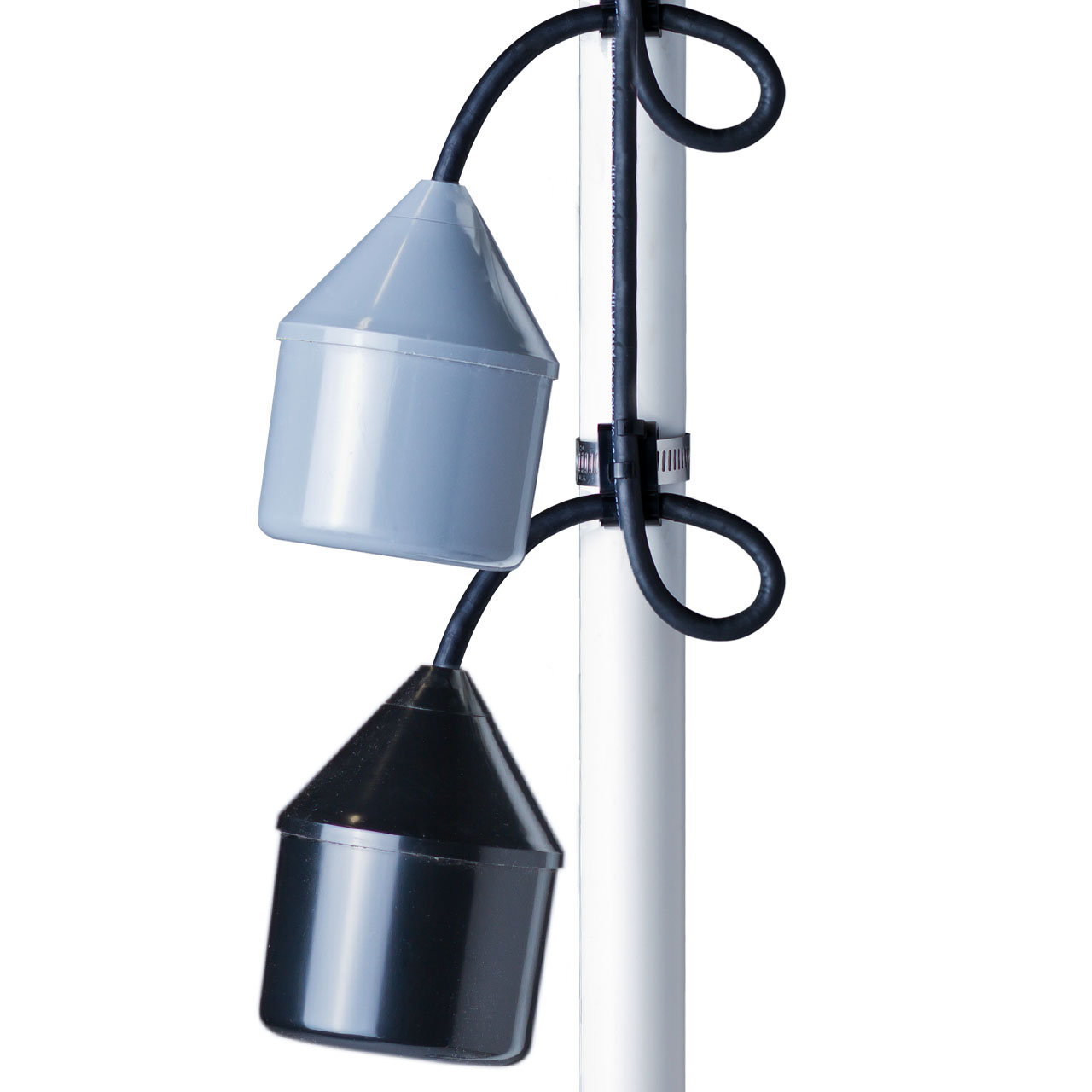

The Double Float® pump switch consists of two floats and a splice tube. Each float contains a heavy-duty mercury switch. The splice tube contains a holding relay which enables the floats to function in series. The holding relay eliminates pump chatter in turbulent conditions allowing the Double Float® pump switch to operate relay control panels for larger pump applications.
This switch is well suited for confined space applications requiring an accurate pumping range. It is not sensitive to rotation or turbulence. This switch is voltage sensitive - use with correct voltage.
SJE-Rhombus Double Float Pump Switch Typical Application
- Non-Potable Water Applications
- Sewage Applications
SJE-Rhombus Double Float Pump Switch Features
- Controls Pumps Up to 1 HP at 120 VAC and 2 HP at 230 VAC
- Adjustable Pumping Range of 1.75 to 48 Inches(4.45 to 122 cm) with Increased Pumping Range Up to 6 Feet (1.8 meters) Available.
- Includes Standard Mounting Clamp and Boxed Packaging.
- UL Recognized for Use in Non-Potable Water and Sewage
- CSA Certified
- Five-Year Limited Warranty
Specifications
Specifications
SJE-Rhombus Double Float Pump Switch Specifications
- CABLE ATTACHED TO FLOAT HOUSING: Flexible 14 Gauge, 2 Conductor (UL, CSA) SJOW, Water-Resistant (CPE)
- CABLE ABOVE SPLICE: Flexible 14 Gauge, 3 Conductor (UL, CSA) SJTW, Water-Resistant, Thermoplastic
- FLOATS: 3.38" Diameter x 4.55" Long (8.58 x 11.56 cm) High Impact, Corrosion Resistant, PVC Housing for Use in Sewage and Non-Potable Water up to 140°F (60°C)
- MERCURY SWITCH: Mercury-to-Mercury Contacts, Hermetically Sealed in a Steel Capsule
- ELECTRICAL: 120 VAC 50/60Hz Single Phase
- Maximum Pump Running Current: 15 amps
- Maximum Pump Starting Current: 55 amps
- Recommended Pump HP: 1 HP or less
- ELECTRICAL: 230 VAC 50/60Hz Single Phase
- Maximum Pump Running Current: 12 amps
- Maximum Pump Starting Current: 35 amps
- Recommended Pump HP: 2 HP or less
NOTE: This switch must be used with pumps that provide integral thermal overload protection
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
SJE-Rhombus Double Float Pump Switch Product Resources
SJE-Rhombus Double Float Pump Switch Catalog Page
SJE-Rhombus Double Float Pump Switch Installation Instructions
SJE-Rhombus Mercury Restricted State Map (See next document for mercury alternatives)
