SJE-Rhombus MegaMaster® Control Switch Description

Mechanically-Activated, Internally Weighted Control Switch

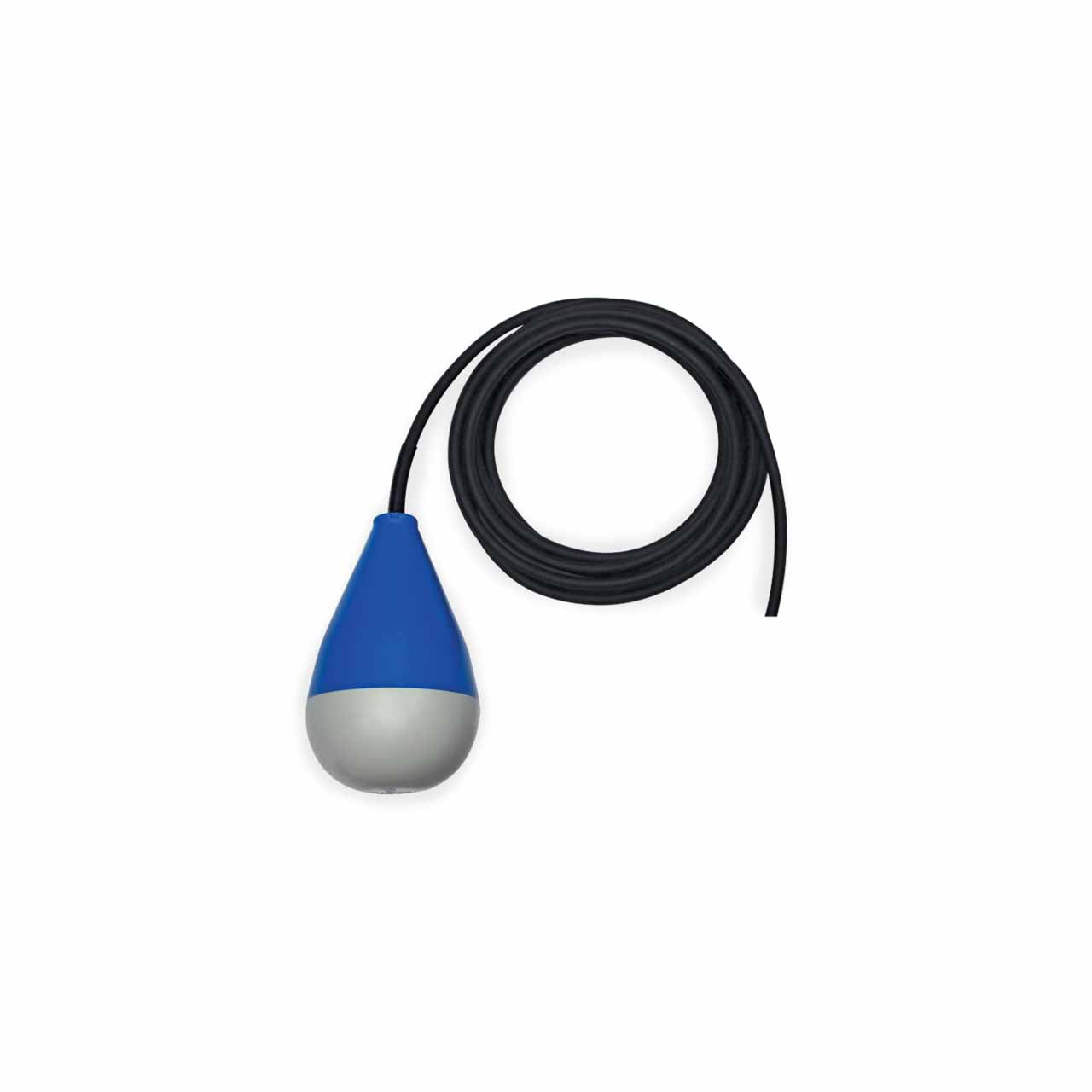

The SJE MegaMaster® is a mechanically-activated, narrow-angle, internally weighted float switch designed for level control in municipal sewage pumping stations. The internal switching mechanism contains a unique gold cross-point contacts, providing precision and reliable control signals up to 1 amp.

The SJE MegaMaster® control switch can be wired to work in either normally open or normally closed applications. It is not sensitive to rotation.

Normally Open Models (high level): The control switch turns on (closes) when the float tips slightly above horizontal signaling a high level and turns off (opens) when the float drops slightly below horizontal.

Normally Closed Models (low levels): The control switch turns on (closes) when the float tips slightly below horizontal signaling a low level and turns off (opens) when the float tips slightly above horizontal.

SJE-Rhombus MegaMaster® Control Switch Typical Application

• Lift Stations
• Non-Potable Water
• PLC (Programmable Logic Controllers)
• Intrinsically Safe Applications

SJE-Rhombus MegaMaster® Control Switch Features

• Internally Weighted.
• 3-Wire Cable - SPDT (Single Pole, Double Throw) Can Be Wired as Normally Open or Normally Closed. Wire Color: Common (white), N.O. (black), N.C. (red).
• Large Twin Wall Tear Drop Shape Design Offers Increased Buoyancy.
• Two-Color Housing Allows for Easy Identification of Float Position.
• Unique Gold Cross-Point Contacts Proved Precision and Reliable Control Signals up to 1 Amp.
• Excellent Solution for Applications with High Grease Content.
• CSA Certified.
• Five-Year Limited Warranty

SJE-Rhombus MegaMaster® Control Switch Specifications

• CABLE: Flexible 18 Gauge, 3 Conductor (UL) SJOW, Water-Resistant (CPE)
• FLOAT: 4.03" Diameter x 6.62" Long (10.2 x 16.8 cm) High Impact, Corrosion Resistant, Polypropylene Housing for use in Sewage and Water up to 140°F (60°C)
• MAXIMUM WATER DEPTH: 30 Feet (9 meters), 13 PSI (90 kPa)
• ELECTRICAL:
• Maximum Electrical Load: 1 amp, 125 VAC
• Minimum Electrical Load: 1 mA, 4 VDC
