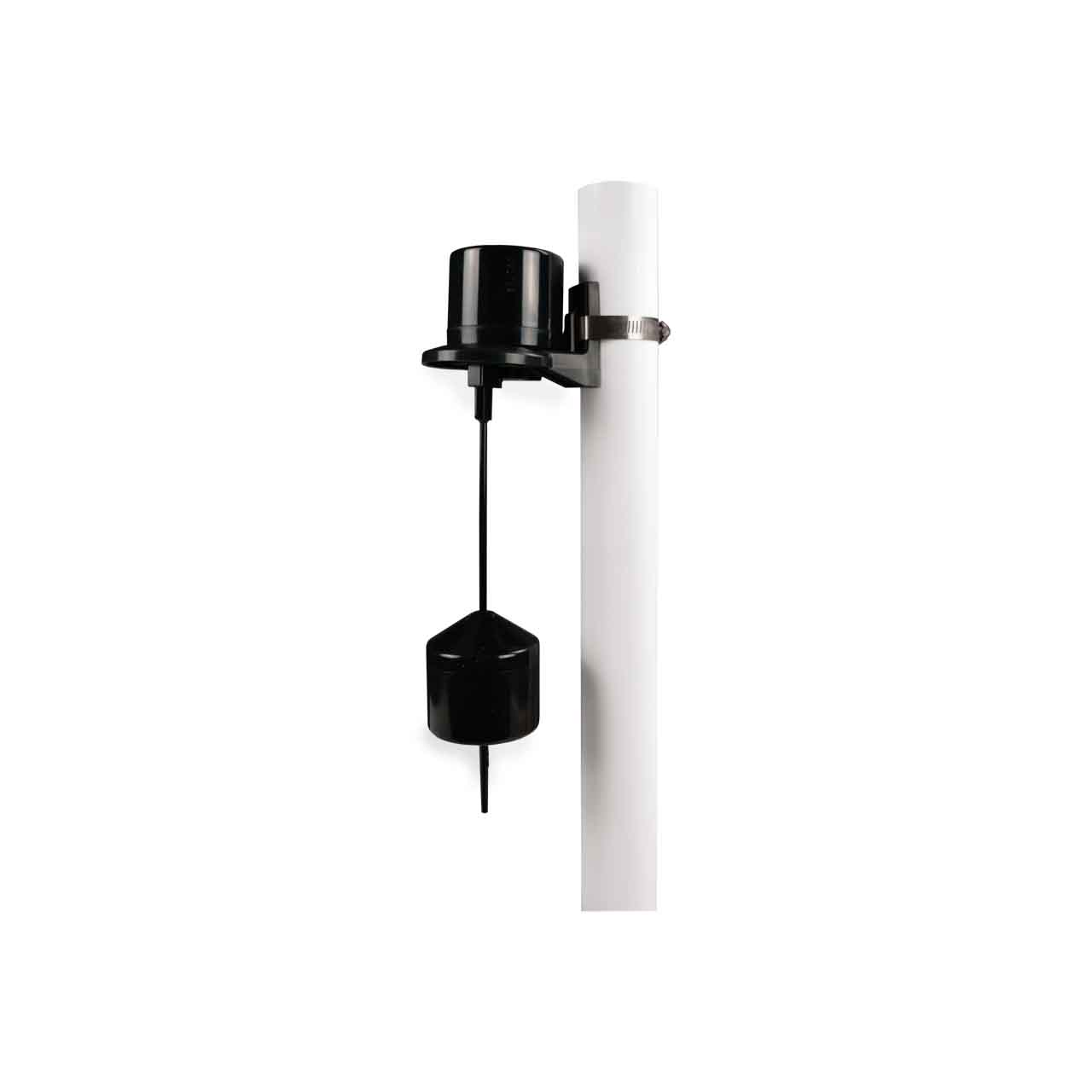

SJE-Rhombus 20VMIILC VerticalMaster II LC Control Switch Normally Open
SJE-Rhombus 20VMIILC VerticalMaster II LC Control Switch Normally Open
SKU : SJE1039781
In Stock Quantity:0
:
Brand
:
Regular price
$70.50 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
SJE-Rhombus VERTICALMASTER II LC Control Switch Description
Mechanically-activated control switch designed to activate low current control panels and alarms.
The control switch offers reliable control for AC and DC applications in non-potable water, and wastewater. The internal switching mechanism has sealed gold cross-point, contacts for reliable low current operation. Common applications include PLC (programmable logic controller) panes, IS panels, with intrinsically safe barriers, low current solar barriers, low current solar applications, and other low current control panel and alarm applications.
The SJE VerticalMaster II LC Control Switch is not sensitive to turbulence and is available in normally open (high level) operation only.
SJE-Rhombus VERTICALMASTER II LC Control Switch Features
- Adjustable Activation Range of .75 to 6.5 Inches (2 to 17 cm).
- Low Current, Non-Arcing Applications Down to 0.160 mA at 125 VAC
- Includes Standard Boxed Packaging
- CSA Certified
- Five-Year Limited Warranty
Specifications
Specifications
SJE-Rhombus VERTICALMASTER II LC Control Switch Specifications
- CABLE: Flexible 18 Gauge, 2 Conductor (UL, CSA) SJOW or SJTW
- MOUNTING BRACKET: Polypropylene
- LIFT ROD: Injection Molded Acetal Plastic
- FLOAT STOP: Neoprene
- SWITCH AND FLOAT HOUSING: High Impact, Corrosion Resistant, PVC Housing for Use in Sewage and Non-Potable Water up to 125°F (52°C)
- Overall Dimensions: 12" High x 5" x 3" Wide (30.5 cm high x 12.7 cm x 7.6 cm wide)
- Switch Housing Dimensions (excluding cable entrance): 2" High x 2.8" Wide (5 cm high x 7.1 cm wide)
- Float Housing Dimensions: 2.5" High x 2.7" Diameter (5.8 cm high x 6.9 cm diameter)
- ELECTRICAL: 125 VAC
- Maximum Electrical Load: 1 Amp
- Minimum Electrical Load: 0.160 Milliamps
- ELECTRICAL: 30 VDC
- Maximum Electrical Load: 0.1 Amps
- Minimum Electrical Load: 0.160 Milliamps
- ELECTRICAL: 5 VDC
- Minimum Electrical Load: 1 Milliamps
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
SJE-Rhombus VERTICALMASTER II LC Control Switch Product Resources
SJE-Rhombus VERTICALMASTER II LC Control Switch Catalog Page
SJE-Rhombus VERTICALMASTER II LC Control Switch Installation Instructions
