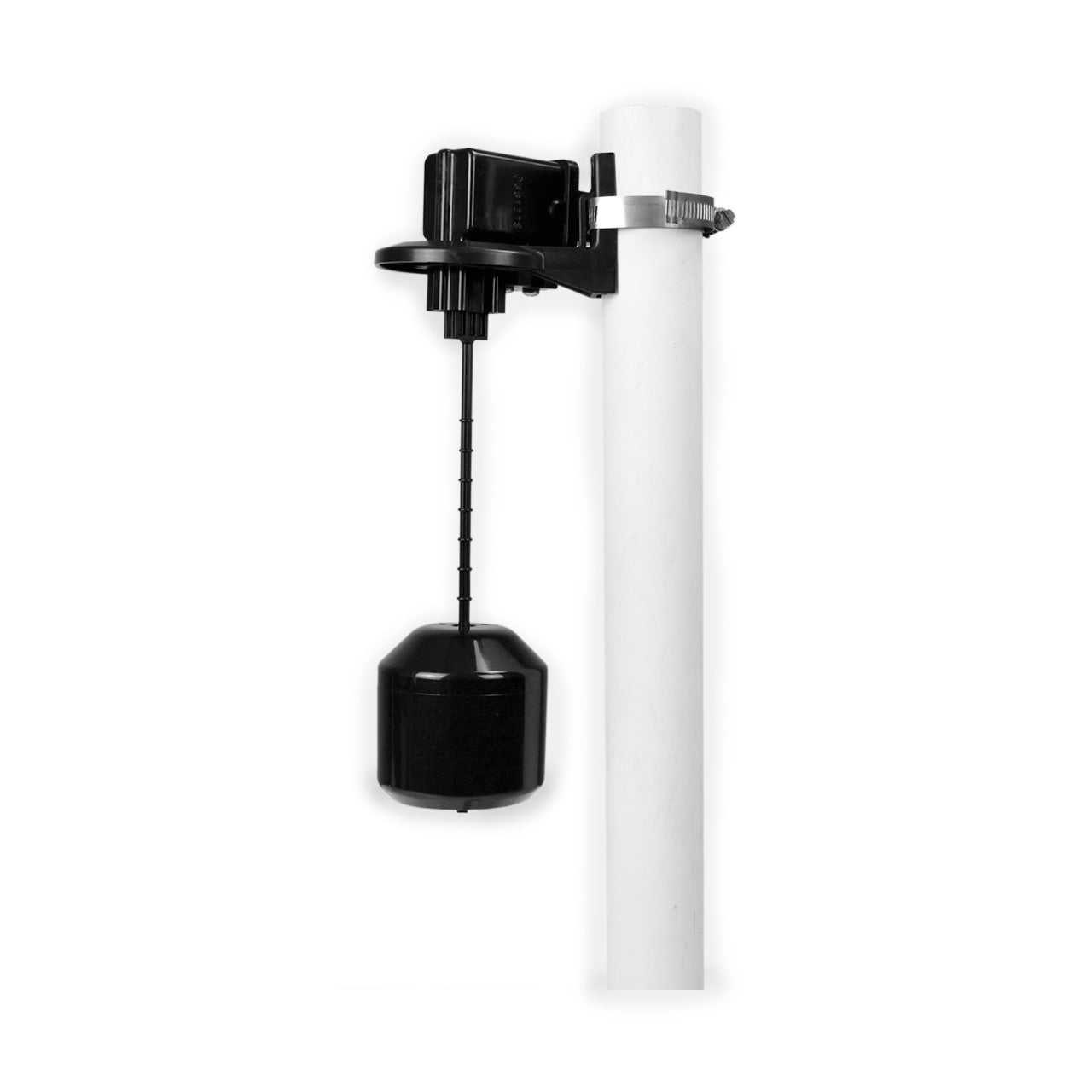

SJE-Rhombus VERTICALMASTER® 3 Plus Pump Switch Description

Mechanically-Activated Switch for Limited Space Applications.

The SJE VerticalMaster® 3 Plus mechanically activated pump switch is designed for direct control of pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC for:

• Non-Potable Water Applications
• Sewage Applications
• Limited Space Applications

It works well in small sump chambers, effluent applications and laundry trays, as well as in large tanks. The SJE Vertical Master® 3 Plus pump switch is not sensitive to turbulence. It is available for pump down applications only.

SJE-Rhombus VERTICALMASTER® 3 Plus Pump Switch Typical Application

• Effluent and Sewage Pump Operation

SJE-Rhombus VERTICALMASTER® 3 Plus Pump Switch Features

• Heavy-Duty Contacts
• Controls Pumps up to ½ HP at 120 VAC and 1 HP at 230 VAC
• Adjustable Pumping Range of .75 to 6.5 Inches (2 to 17 cm)

SJE-Rhombus VERTICALMASTER® 3 Plus Pump Switch Specifications

• PUMPING RANGE: 0.75 to 6.5 inches (2 cm to 17 cm)
• CABLE: Flexible 16 Gauge, 2 Conductor (UL, CSA) SJOW or SJTOW, Water Resistant (CPE)
• MOUNTING BRACKET: Polypropylene
• LIFT ROD: Acetal
• FLOAT STOP: Acetal
• SWITCH AND FLOAT HOUSING: High Impact, Corrosion Resistant, PVC Housing for Use in Sewage and Non-Potable Water up to 140°F (62°C)
• Switch Housing: Height 2.6" x Length 3.3" x Width 1.5" (6.6 cm x 8.5 cm x 3.9 cm)
• Float Housing: Height 2.87" x Diameter 2.87" (7.3 cm x 7.3 cm)
• Float Rod Length: 8.55"
• ELECTRICAL: 120 VAC 50/60Hz Single Phase
• Maximum Pump Running Current: 13 Amps
• Maximum Pump Starting Current: 78 Amps
• Recommended Pump HP: 1/2 HP or Less
• ELECTRICAL: 230 VAC 50/60Hz Single Phase
• Maximum Pump Running Current: 13 Amps
• Maximum Pump Starting Current: 78 Amps
• Recommended Pump HP: 1 HP or Less

NOTE: This switch must be used with pumps that provide integral thermal overload protection.
