SJE-Rhombus 20SGMPCNC SignalMaster Control Switch Normally Closed 20' Cord
SJE-Rhombus 20SGMPCNC SignalMaster Control Switch Normally Closed 20' Cord
SKU : SJE1006048
In Stock Quantity:17
:
Brand
:
Regular price
$59.57 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Mechanically-Activated, Narrow-Angle Control Switch
The SJE SignalMaster® control switch is used to accurately monitor high (normally open) or low (normally closed) liquid levels to activate pump control panels and alarms in water and sewage applications.
Normally Open Models (high level): The control switch turns on (closes) when the float tips slightly above horizontal signaling a high level and turns off (opens) when the float drops slightly below horizontal. Normally open models have a yellow colored cap for easy identification.
Normally Closed Models (low levels): The control switch turns on (closes) when the float tips slightly below horizontal signaling a low level and turns off (opens) when the float tips slightly above horizontal. Normally closed models have a white colored cap for easy identification.This switch is not sensitive to rotation.
SJE-Rhombus SignalMaster® Control Switch Typical Application
- Mechanically Activated, Narrow-Angle Float Switch Designed to Activate Pump Control Panels and Alarms.
SJE-Rhombus SignalMaster® Control Switch Features
- Mechanically-Activated, Snap Action Contacts.
- High Impact, Corrosion Resistant, Polypropylene Float Housing.
- Not Sensitive to Rotation.
- Control Differential of 1.5 Inches (4 cm) Above or Below Horizontal.
- 10 ft Flexible 18 Gauge Cord, 2 Conductor (UL, CSA) SJOW, Water-Resistant (CPE) Jacket
- Yellow Colored Cap for Easy Identification of Normally Open Control Switch.
- White Colored Cap for Easy Identification of Normally Closed Control Switch.

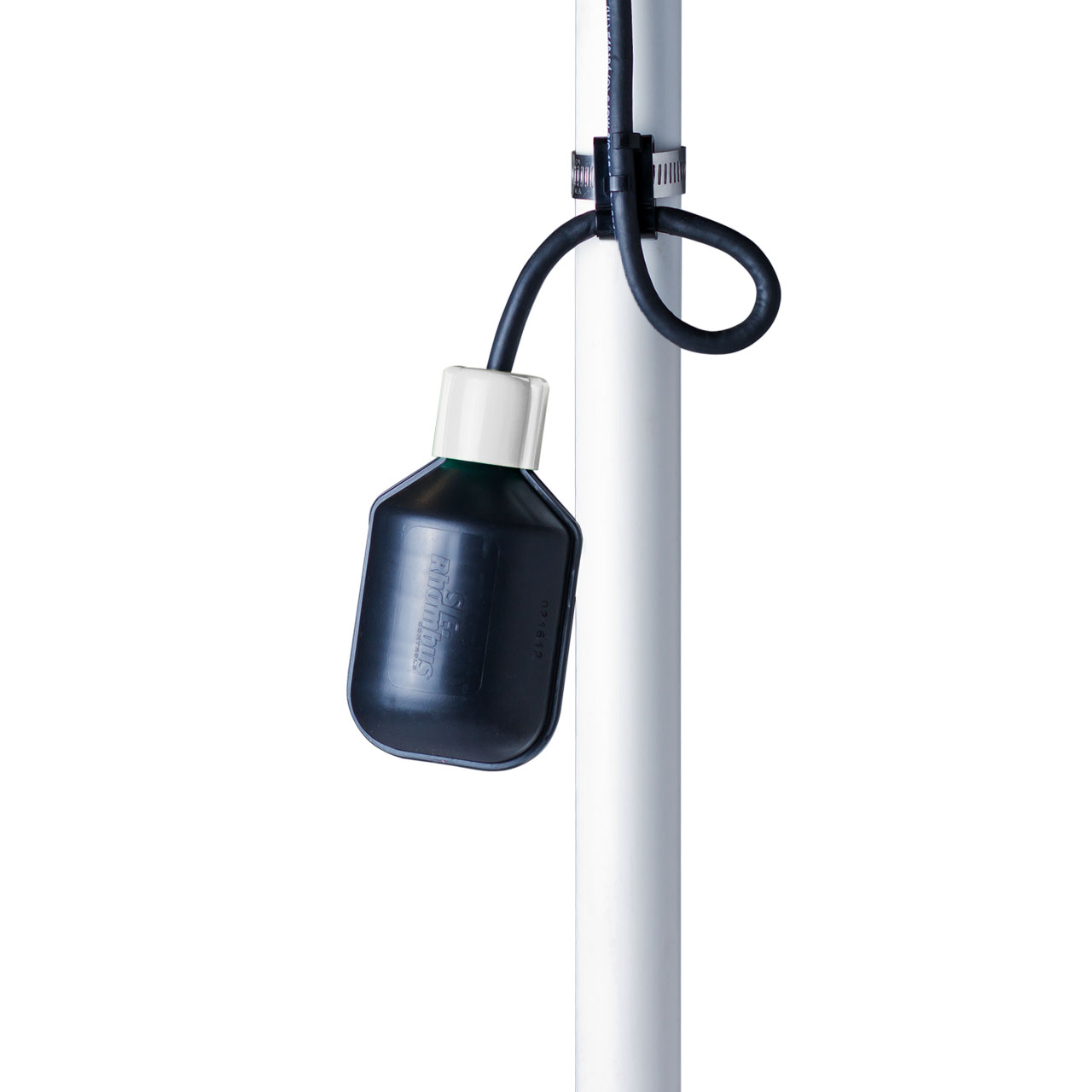

- Mounting Option: Mounting Clamp for Applications where the Switch can be Attached to a Discharge Pipe or Similiar Mounting Device.
- UL Listed for use in Water and Sewage.
- CSA Certified.
- Five-Year Limited Warranty
Specifications
Specifications
SJE-Rhombus SignalMaster® Control Switch Specifications
- CABLE: Flexible 18 Gauge, 2 Conductor (UL, CSA) SJOW, Water-Resistant (CPE)
- FLOAT: 2.74" Diameter x 4.83" Long (7.0 x 12.3 cm) High Impact, Corrosion Resistant, Polypropylene Housing for use in Sewage and Water up to 140° F (60° C)
- MAXIMUM WATER DEPTH: 30 Feet (9 meters), 13 PSI (90 kPa)
- ELECTRICAL: 5 Amp, 125/250 VAC, 50/60 Hz
NOTE: This switch is not recommended for controlling:
- Electric Loads Less than 100 Milliamps, 12 VAC
- Non-Arcing Electric Loads
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
SJE-Rhombus SignalMaster® Control Switch Product Resources
SJE-Rhombus SignalMaster Control Switch Catalog Page
SJE-Rhombus Control Switch Installation Instructions
SJE-Rhombus Mercury Restricted State Map (See next document for mercury alternatives)
