SJE-Rhombus 20PMPU2WP PumpMaster Plus Pump Switch 230V Pump Up 20' Cord W/Plug
SJE-Rhombus 20PMPU2WP PumpMaster Plus Pump Switch 230V Pump Up 20' Cord W/Plug
SKU : SJE1003263
In Stock Quantity:0
:
Brand
:
Regular price
$130.26 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

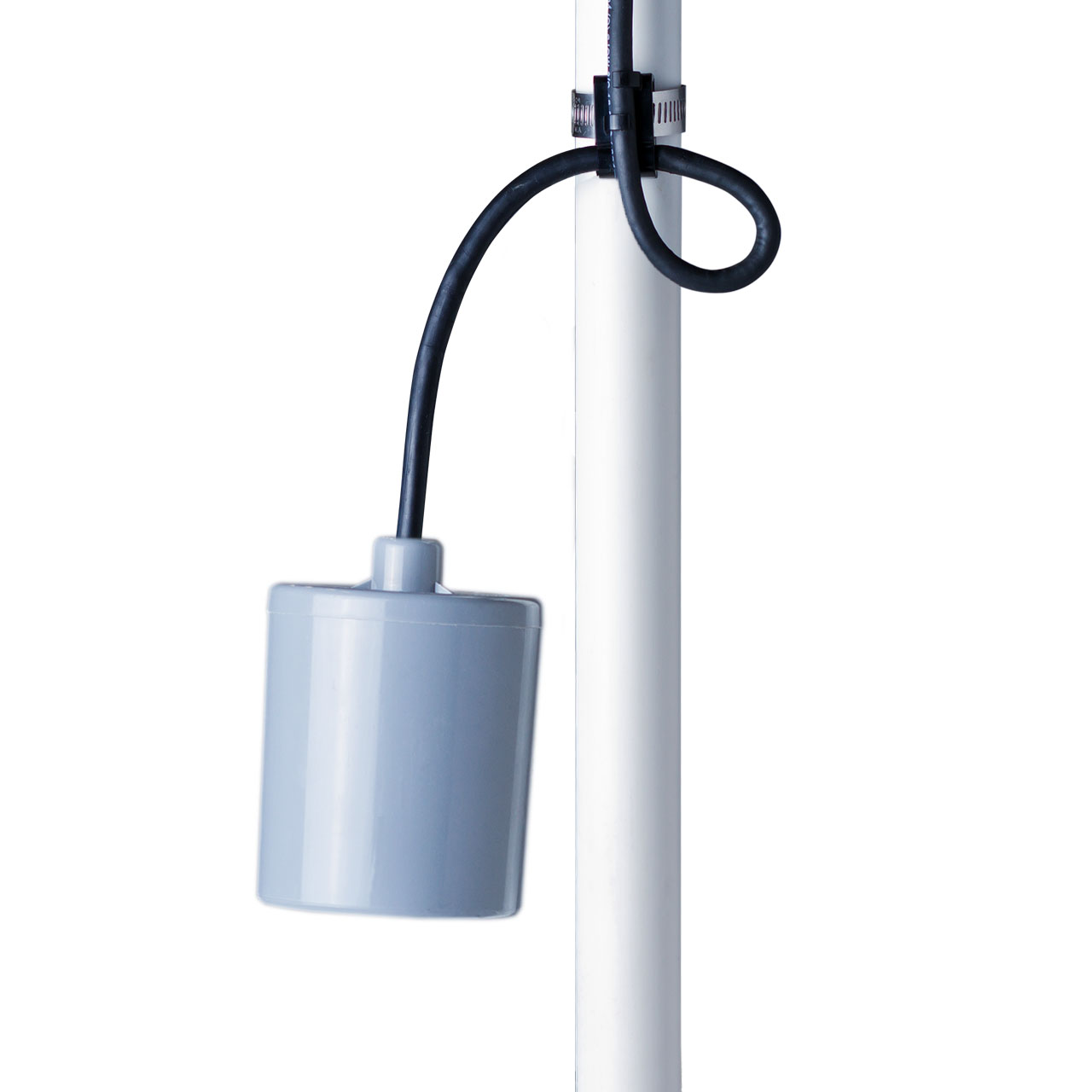

SJE-Rhombus PumpMaster® Plus Pump Switch Description
Mechanically-activated, wide-angle switch designed for direct control of pumps up to 3/4 HP at 120 VAC and 2 HP at 230 VAC.
The SJE PumpMaster® Plus pump switch provides automatic control of pump in water and sewage applications. UL Recognized; CSA Certified. The SJE PumpMaster® Plus pump switch is not sensitive to rotation or turbulence, allowing it to be used in both calm or turbulent applications.
SJE-Rhombus PumpMaster® Plus Pump Switch Typical Application
- Effluent and Sewage Pump Operation
- Water Pumping Applications
SJE-Rhombus PumpMaster® Plus Pump Switch Technical Details
- Heavy-Duty Contacts.
- Controls pumps up to 3/4 HP at 120 VAC and 2 HP at 230 VAC.
- Adjustable Pumping Range of 7 to 36 Inches (18 to 91 cm).
- Includes Standard Mounting Clamp and Boxed Packaging
- UL Recognized for use in Non-Potable Water and Sewage
- CSA Certified
- Five-Year Limited Warranty
Specifications
Specifications
SJE-Rhombus PumpMaster® Plus Pump Switch Specifications
- CABLE: Flexible 14 Gauge, 2 Conductor (UL, CSA) SJOW, Water-Resistant (CPE)
- FLOAT: 3.05" Diameter x 3.56" Long (7.75 x 9.04 cm) High Impact, Corrosion Resistant, PVC Housing for Use in Sewage and Water Up to 140°F (60°C)
- ELECTRICAL: 120 VAC 50/60Hz Single Phase
- Maximum Pump Running Current: 15 Amps
- Maximum Pump Starting Current: 85 Amps
- Recommended Pump HP: 3/4 HP or Less
- ELECTRICAL: 230 VAC 50/60Hz Single Phase
- Maximum Pump Running Current: 15 Amps
- Maximum Pump Starting Current: 85 Amps
- Recommended Pump HP: 2 HP or Less
NOTE: This switch must be used with pumps that provide integral thermal overload protection
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
SJE-Rhombus PumpMaster® Plus Pump Switch Product Resources
SJE-Rhombus PumpMaster® Plus Pump Switch Catalog Page
SJE-Rhombus Pump Switch Installation Instructions
SJE-Rhombus Mercury Restricted State Map (See next document for mercury alternatives)
