SJE-Rhombus 20MWENC Sensor Float® Mini Control Switch Normally Closed 20' Cord
SJE-Rhombus 20MWENC Sensor Float® Mini Control Switch Normally Closed 20' Cord
SKU : SJE1002221
In Stock Quantity:0
:
Brand
:
Regular price
$96.25 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

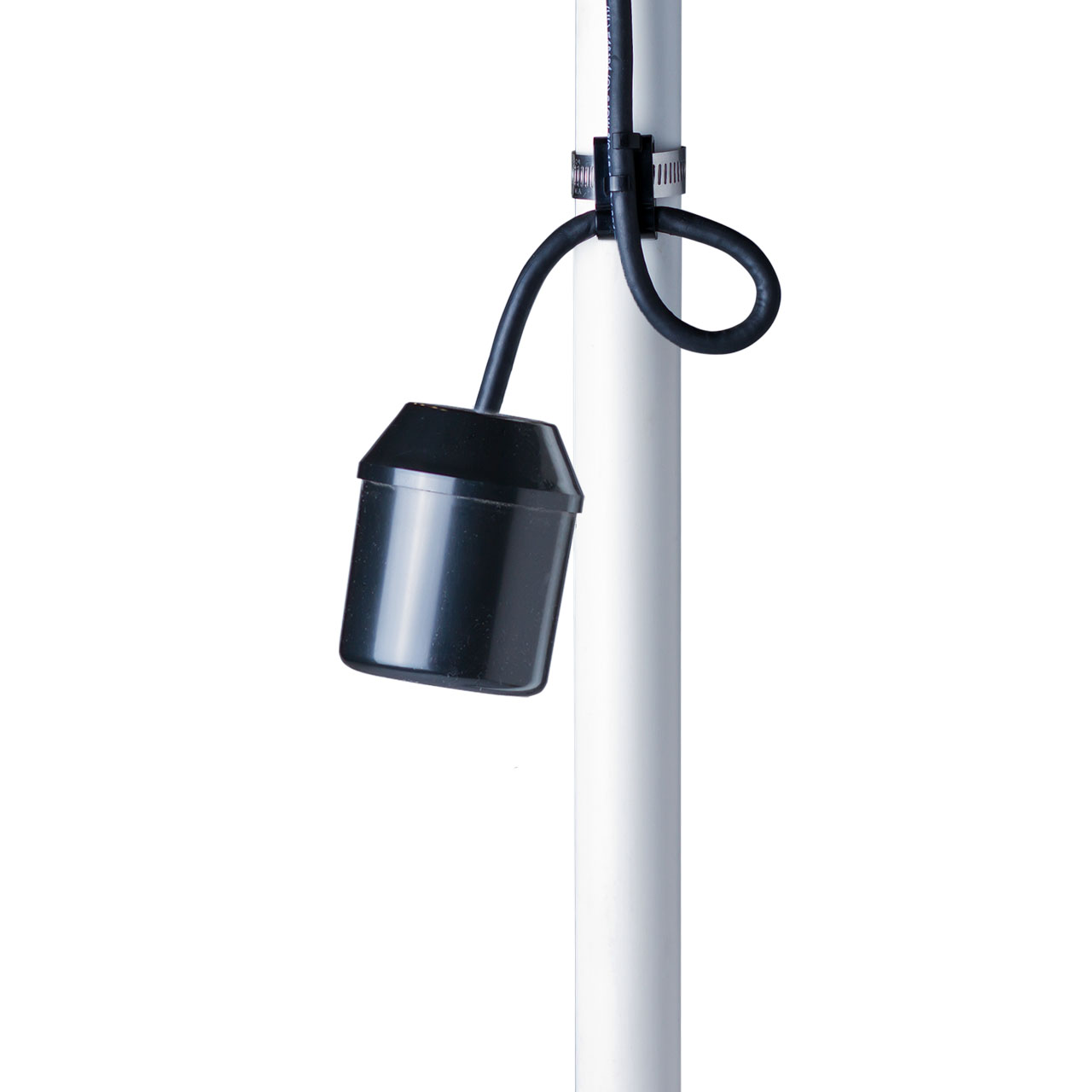

SJE-Rhombus Sensor Float® Mini Control Switch Description
Mercury-Activated, Narrow-Angle Control Switch.
The Sensor Float® Mini control switch is used to accurately monitor high (normally open) or low (normally closed) liquid levels to activate pump control panels and alarms in confined sewage and non-potable water applications.
Normally Open Models (high level): The control switch turns on (closes) when the float tips slightly above horizontal signaling a high level and turns off (opens) when the float drops slightly below horizontal.
Normally Closed Models (low levels): The control switch turns on (closes) when the float tips slightly below horizontal signaling a low level and turns off (opens) when the float tips slightly above horizontal.
This switch is not sensitive to rotation. Contact SJE Rhombus regarding intrinsically safe applications.
SJE-Rhombus Sensor Float® Mini Control Switch Typical Application
- Mercury Activated, Narrow-Angle Float Switch Designed to Activate Pump Control Panels and Alarms.
SJE-Rhombus Sensor Float® Mini Control Switch Features
- Designed for Use in Confined Spaces
- Not Sensitive to Rotation
- Control Differential of .5 Inches (1 cm) Above or Below Horizontal
- UL Listed for Use in Non-Potable Water and Sewage
- CSA Certified
- Five-Year Limited Warranty
Specifications
Specifications
SJE-Rhombus Sensor Float® Mini Control Switch Specifications
- CABLE: Flexible 18 Gauge, 2 Conductor (UL, CSA) SJOW, Water-Resistant (CPE)
- FLOAT: 2.81" Diameter x 3.42" Long (7.14 cm x 8.68 cm), High Impact, Corrosion Resistant PVC Housing for Use in Sewage and Non-Potable Water up to 140°F (60°C)
- MAXIMUM WATER DEPTH: 30 Feet (9 meters), 13 PSI (90 kPa)
- MERCURY TILT SWITCH: Single Pole, Single Throw, Mercury-to-Metal Contacts, Hermetically Sealed in a Steel Capsule and Epoxy Sealed in the Float Housing
- ELECTRICAL: 5 Amp, 120/230 VAC, 50/60 Hz
This Switch is not Recommended for Controlling:
- Electric Loads Less than 30 Milliamps, 12 VAC
- Non-Arcing Electric Loads (intrinsically safe applications)
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
SJE-Rhombus Sensor Float® Mini Control Switch Product Resources
SJE-Rhombus Sensor Float® Mini Control Switch Catalog Page
SJE-Rhombus Control Switch Installation Instructions
SJE-Rhombus Mercury Restricted State Map (See next document for mercury alternatives)
