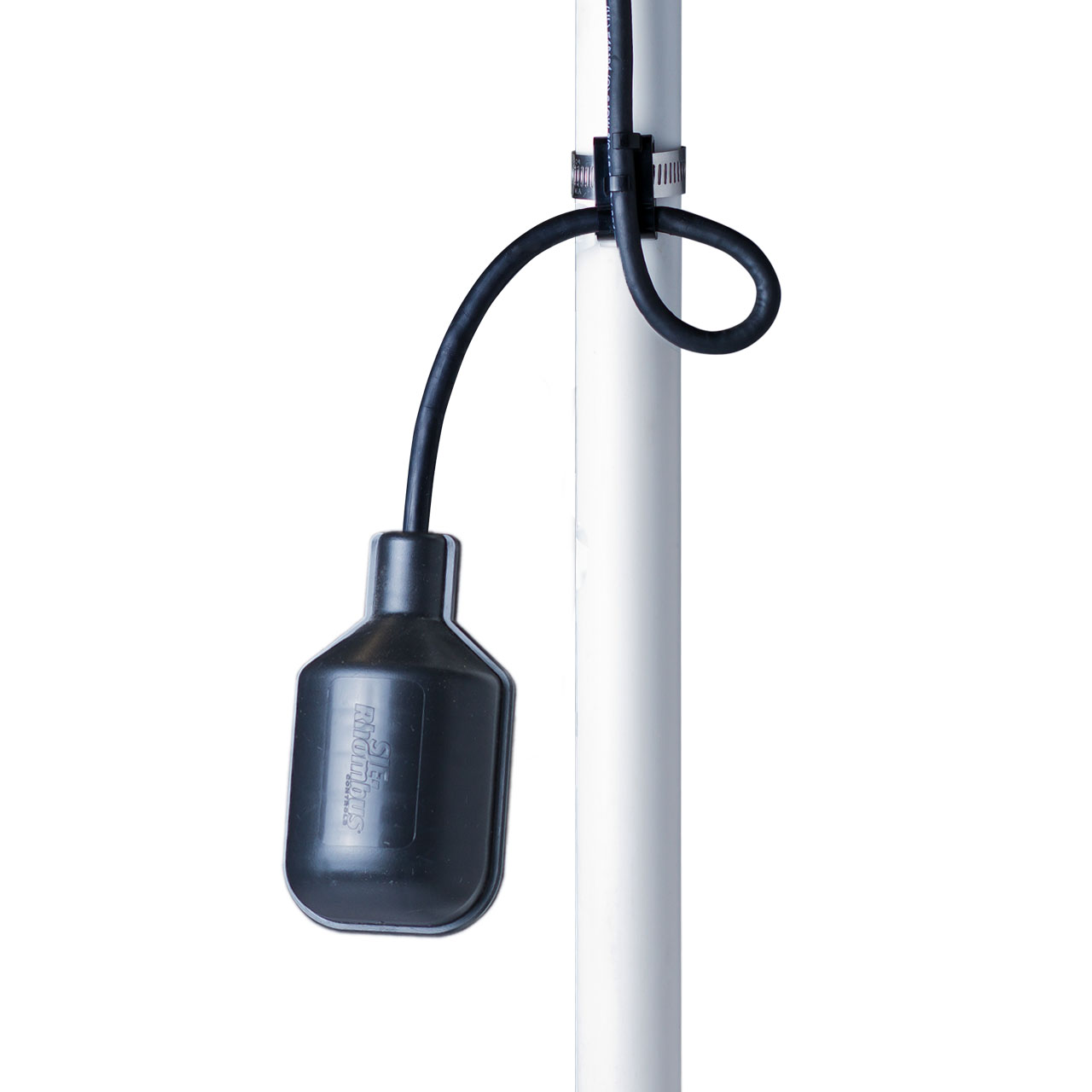

SJE-Rhombus 20MMPDWOPWS MicroMaster Plus WS Pump Switch Pump Down 125/250VAC 20' Cord W/O Plug
SJE-Rhombus 20MMPDWOPWS MicroMaster Plus WS Pump Switch Pump Down 125/250VAC 20' Cord W/O Plug
SKU : SJE1022032
In Stock Quantity:0
:
Brand
:
Regular price
$83.57 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
SJE-Rhombus MicroMaster® Plus WS Pump Switch Description
Mechanically-Activated, Wide-Angle Switch Specifically Designed as a Mechanical Alternative to the Mercury-Activated Junior Super Single® Pump Switch.
The SJE MicroMaster® Plus WS pump switch is specifically designed as a mechanical alternative to the mercury-activated Junior Super Single® pump switch. It directly controls pumps in water and sewage applications.
SJE-Rhombus MicroMaster® Plus WS Pump Switch Typical Application
- This Mechanically-Activated, Wide-Angle Pump Switch Provides Automatic Control of Pumps in Water and Sewage Applications.
SJE-Rhombus MicroMaster® Plus WS Pump Switch Features
- Mechanically-Activated, Snap Action Contacts.
- High Impact, Corrosion Resistant, Polypropylene Float Housing.
- Adjustable Pump Range of 8 to 36 Inches (20 to 91 cm)
- UL Recognized for Use in Water and Sewage
- CSA Certified
- Five-Year Limited Warranty
Specifications
Specifications
SJE-Rhombus MicroMaster® Plus WS Pump Switch Specifications
- CABLE: Flexible 16 Gauge, 2 Conductor (UL, CSA) SJOW, Water-Resistant, (CPE)
- FLOAT: 2.74" Diameter x 4.83" Long (7.0 cm x 12.3 cm), High Impact, Corrosion Resistant, Polypropylene Housing for use in Water Up to 140°F (60°C)
- MAXIMUM WATER DEPTH: 33 Feet (10 meters) or 13 PSI (90 kPa)
- ELECTRICAL: 125 VAC 50/60Hz Single Phase
- Maximum Pump Running Current: 13 Amps
- Maximum Pump Starting Current: 78 Amps
- ELECTRICAL: 250 VAC 50/60Hz Single Phase
- Maximum Pump Running Current: 13 Amps
- Maximum Pump Starting Current: 78 Amps
- PIGGYBACK PLUG NOT INCLUDED
NOTE: This switch is not recommended for controlling
- Electric Loads Less than 100 Milliamps, 12 VAC
- Non-Arcing Electric Loads
NOTE: This switch must be used with pumps that provide integral thermal overload protection.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
SJE-Rhombus MicroMaster® Plus WS Pump Switch Product Resources
SJE-Rhombus MicroMaster® Plus WS Pump Switch Catalog Page
SJE-Rhombus Control Switch Installation Instructions
SJE-Rhombus Mercury Restricted State Map (See next document for mercury alternatives)
