SJE-Rhombus MilliAmpMaster Control Switch Typical Description

Mechanically-Activated, Narrow-Angle or Wide-Angle Control Switch

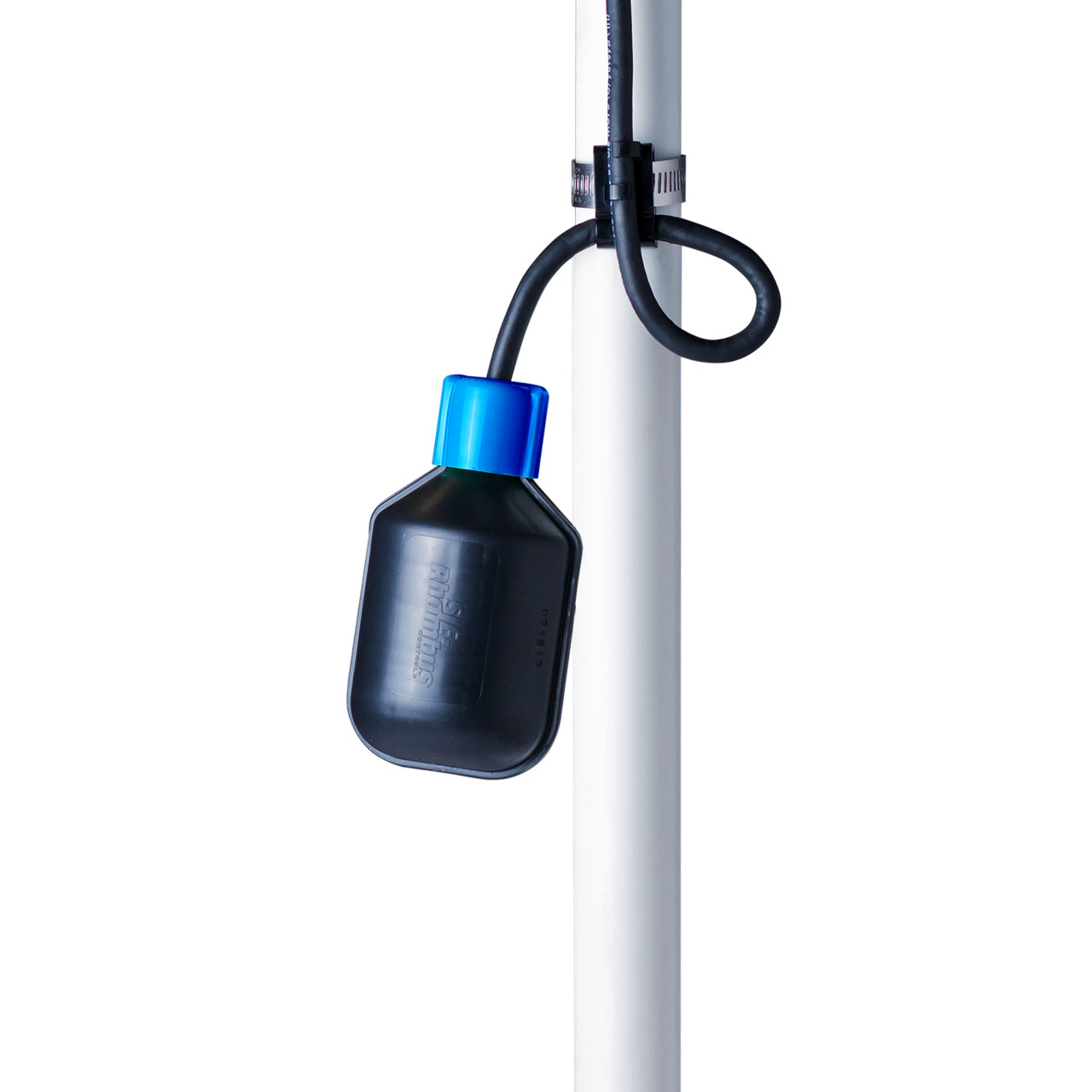

The SJE MilliAmpMaster™ control switch is narrow-angle or wide angle control switch that offers control for AC or DC applications in wastewater and sewage. The internal switching mechanism has seal gold cross-point contacts for reliable low current operation. It features a blue colored cap for easy identification.

Common applications include PLC (programmable logic controller) panels, IS panels with intrinsically safe barriers, low current solar applications and other low current control panels and alarm applications.

The wide-angle version activates/deactivates approximately 4 inches above and below horizontal with a 3.5 inch tether. The narrow angle version activates/deactivates at approximately 1.5 inches above and below horizontal with a 3.5 inch tether.

This switch is not sensitive to rotation.

Normally Open Models (high level): The control switch turns on (closes) when the float tips slightly above horizontal signaling a high level and turns off (opens) when the float drops slightly below horizontal.

Normally Closed Models (low levels): The control switch turns on (closes) when the float tips slightly above horizontal signaling a low level and turns off (opens) when the float tips slightly above horizontal.

SJE-Rhombus MilliAmpMaster Control Switch Typical Application

• PLC (Programmable Logic Controller) Panels
• IS Panels with Intrinsically Safe Barriers
• Low Current Solar Applications & Other Low Current Panels and Alarm Applications

SJE-Rhombus MilliAmpMaster Control Switch Features

• Low Current, Non-Arcing Applications Down to 0.160 mA at 125 VAC
• For Normally Open (high level) or Normally Closed (low level) Applications.
• Mechanically-Activated, Snap Action Contacts.
• High Impact, Corrosion Resistant, Polypropylene Float Housing.
• Not Sensitive to Rotation
• Blue Colored Cap for Easy Identification
• CSA Certified
• Five-Year Limited Warranty

SJE-Rhombus MilliAmpMaster Control Switch Specifications

• CABLE: Flexible 18 Gauge, 2 Conductor (UL,CSA) SJOW, Water-Resistant (CPE)
• FLOAT: 2.74" Diameter x 4.83" Long (7.0 cm x 12.3 cm), High-Impact, Corrosion Resistant, Polypropylene Housing for use in Sewage and Water up to 140°F (60°C)
• MAXIMUM WATER DEPTH: 30 Feet (9 meters), 13 PSI (90kPa)
• ELECTRICAL 125 VAC:
  • Maximum Electrical Load: 1 Amp
  • Minimum Electrical Load: 0.160 Milliamps
• ELECTRICAL 30 VDC:
  • Maximum Electrical Load: 0.1 Amp
  • Minimum Electrical Load: 0.160 Milliamps
• ELECTRICAL 5 VDC:
  • Maximum Electrical Load: 1 Milliamps
• PIGGYBACK PLUG NOT INCLUDED
