SJE-Rhombus 15MMDCUWOP MICROMASTER AC/DC Pump Switch Pump Up 15' Cord W/O Plug
SJE-Rhombus 15MMDCUWOP MICROMASTER AC/DC Pump Switch Pump Up 15' Cord W/O Plug
SKU : SJE1012543
In Stock Quantity:2
:
Brand
:
Regular price
$69.64 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

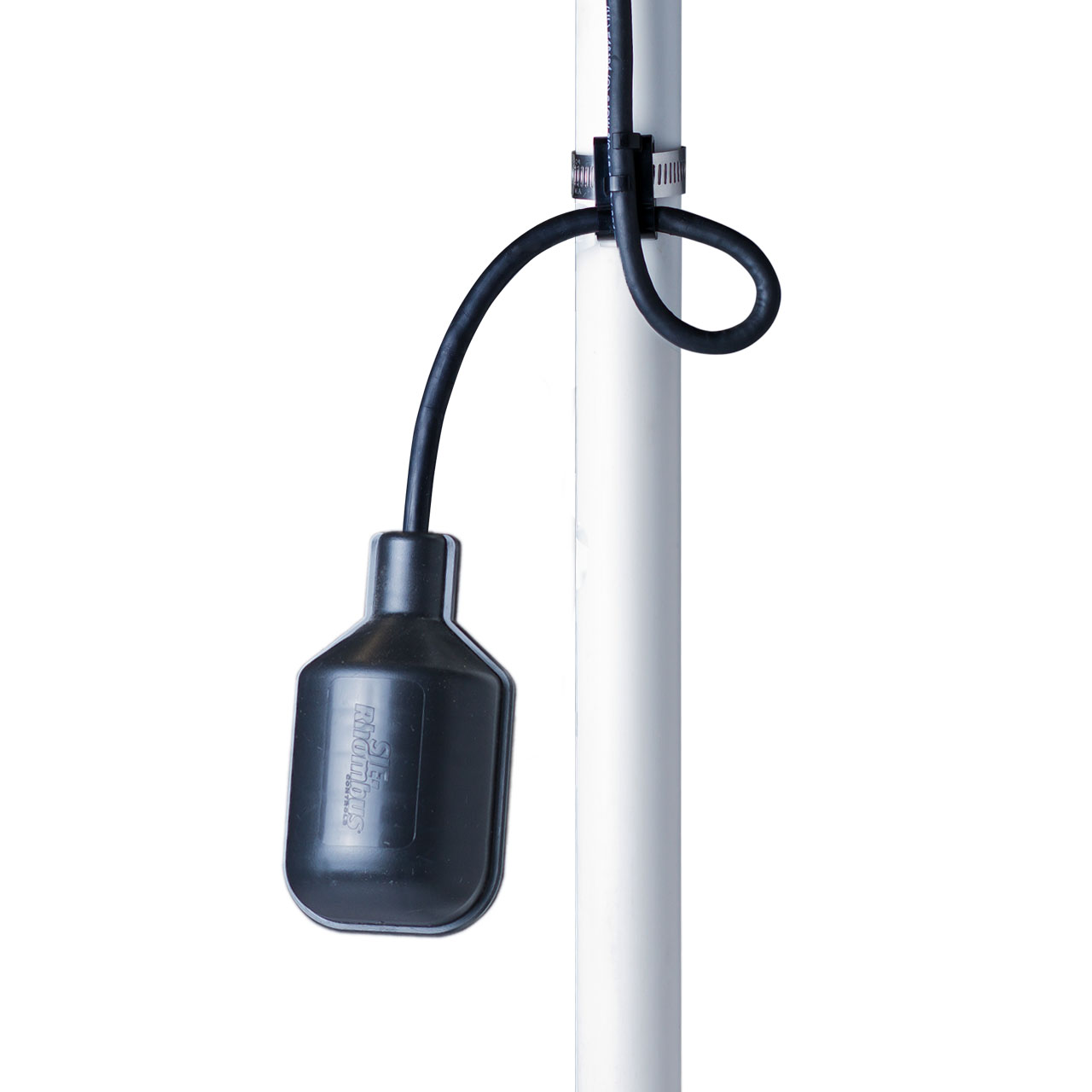

SJE-Rhombus MICROMASTER® AC/DC Pump Switch Description
Mechanically-Activated, Wide-Angle Switch Designed for Performance and Dependability.
The SJE MICROMASTER® AC/DC Pump Switch is a mechanically activated, wide angle switch designed for performance and dependability. Recommended for uses in water and sewage applications.
The SJE MICROMASTER® AC/DC Switch is not sensitive to rotation or turbulence, making it ideal for both calm and turbulent applications.
SJE-Rhombus MICROMASTER® AC/DC Pump Switch Typical Application
- Water Applications
- Sewage Applications
SJE-Rhombus MICROMASTER® AC/DC Pump Switch Features
- Mechanically-Activated, Snap Action Contacts.
- High Impact, Corrosion Resistant, Polypropylene Float Housing.
- Adjustable Pumping Range of 8 to 36 Inches (20 to 91 cm)
- UL Recognized for Use in Non-Potable Water and Sewage
- CSA Certified
- Five-Year Limited Warranty
Specifications
Specifications
SJE-Rhombus MICROMASTER® AC/DC Pump Switch Specifications
- CABLE: Flexible 18 Gauge, 2 Conductor (UL, CSA) SJOW, Water-Resistant, (CPE)
- FLOAT: 2.74" Diameter x 4.83" Long (7.0 cm x 12.3 cm), High Impact, Corrosion Resistant, Polypropylene Housing for Use in Water up to 140°F (60°C)
- MAXIMUM WATER DEPTH: 33 Feet (10 meters) or 13 PSI (90 kPa)
- ELECTRICAL: 12 VDC
- Maximum Pump Running Current: 10 Amps
- Maximum Pump Starting Current: 100 Amps
- ELECTRICAL: 125 VAC 50/60Hz Single Phase
- Maximum Pump Run Current: 10 Amps
- Maximum Pump Starting Current: 60 Amps
- ELECTRICAL: 250 VAC 50/60Hz Single Phase
- Maximum Pump Run Current: 8 Amps
- Maximum Pump Starting Current: 60 Amps
- PIGGYBACK PLUG NOT INCLUDED
NOTE: This switch is not recommended for controlling
- Electric Loads Less Than 100 Milliamps, 12 VAC
- Non-Arcing Electric Loads
NOTE: This switch must be used with pumps that provide integral thermal overload protection.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
SJE-Rhombus MICROMASTER® AC/DC Pump Switch Product Resources
SJE-Rhombus MICROMASTER® AC/DC Pump Switch Catalog Page
SJE-Rhombus MICROMASTER® AC/DC Switch Installation Instructions
