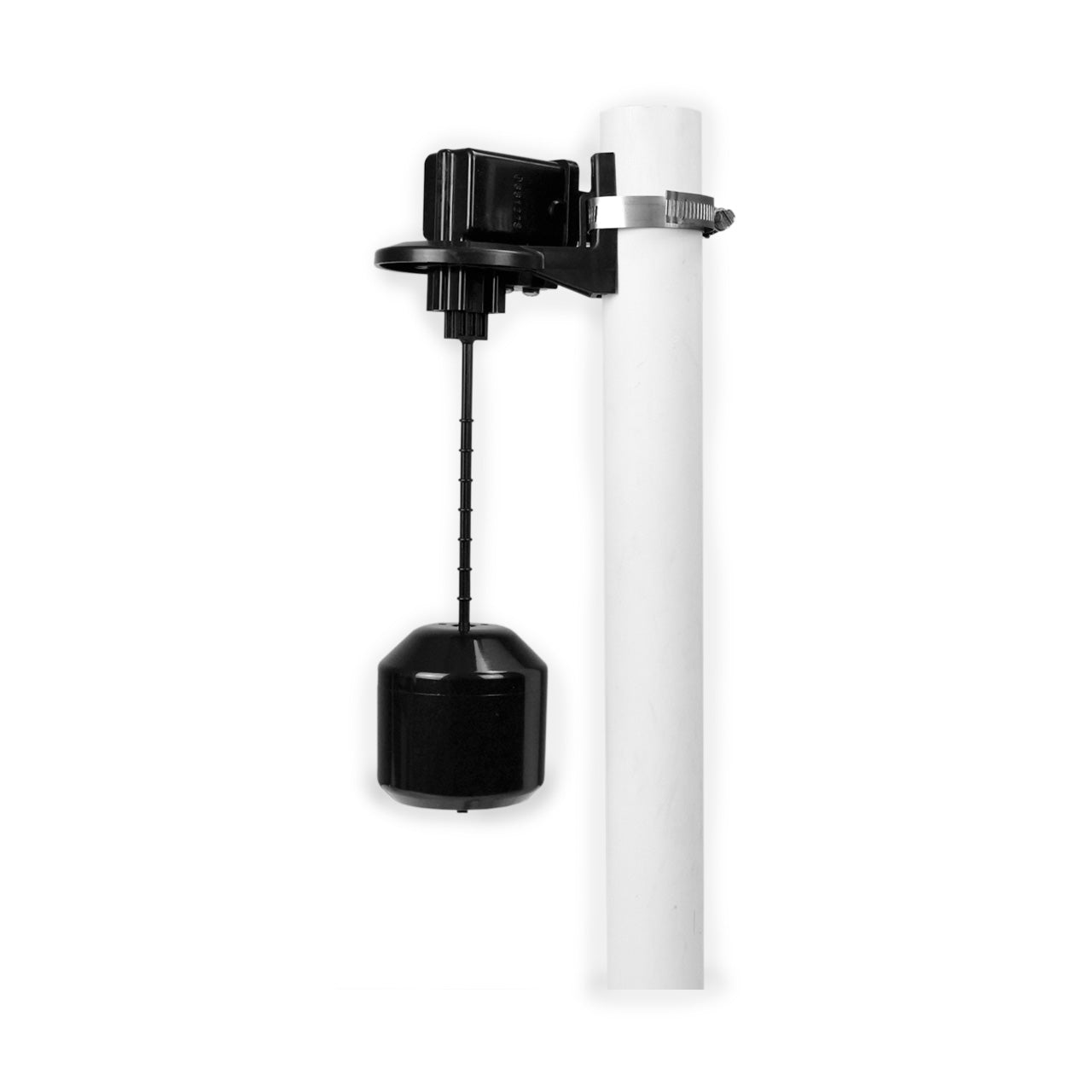

SJE-Rhombus 10VM3P1WP VerticalMaster® 3 Plus Pump Switch 120V Pump Down 10' Cord w/Plug
SJE-Rhombus 10VM3P1WP VerticalMaster® 3 Plus Pump Switch 120V Pump Down 10' Cord w/Plug
SKU : SJE1076764
In Stock Quantity:11
:
Brand
:
Regular price
$123.05 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
SJE-Rhombus VERTICALMASTER® 3 Plus Pump Switch Description
Mechanically-Activated Switch for Limited Space Applications.
The SJE VerticalMaster® 3 Plus mechanically-activated pump switch is designed for direct control of pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC for:
- Non-Potable Water Applications
- Sewage Applications
- Limited Space Applications
It works well in small sump chambers, effluent applications and laundry trays, as well as in large tanks. The SJE VerticalMaster® 3 Plus pump switch is not sensitive to turbulence. It is available for pump down applications only.
SJE-Rhombus VERTICALMASTER® 3 Plus Pump Switch Typical Application
- Effluent and Sewage Pump Operation
SJE-Rhombus VERTICALMASTER® 3 Plus Pump Switch Features
- Heavy-Duty Contacts
- Controls Pumps up to ½ HP at 120 VAC and 1 HP at 230 VAC
- Adjustable Pumping Range of .75 to 6.5 Inches (2 to 17 cm)
Specifications
Specifications
SJE-Rhombus VERTICALMASTER® 3 Plus Pump Switch Specifications
- PUMPING RANGE: 0.75 to 6.5 inches (2 cm to 17 cm)
- CABLE: Flexible 16 Gauge, 2 Conductor (UL, CSA) SJOW or SJTOW, Water Resistant (CPE)
- MOUNTING BRACKET: Polypropylene
- LIFT ROD: Acetal
- FLOAT STOP: Acetal
- SWITCH AND FLOAT HOUSING: High Impact, Corrosion Resistant, PVC Housing for Use in Sewage and Non-Potable Water up to 140°F (62°C)
- Switch Housing: Height 2.6" x Length 3.3" x Width 1.5" (6.6 cm x 8.5 cm x 3.9 cm)
- Float Housing: Height 2.87" x Diameter 2.87" (7.3 cm x 7.3 cm)
- Float Rod Length: 8.55"
- ELECTRICAL: 120 VAC 50/60Hz Single Phase
- Maximum Pump Running Current: 13 Amps
- Maximum Pump Starting Current: 78 Amps
- Recommended Pump HP: 1/2 HP or Less
- ELECTRICAL: 230 VAC 50/60Hz Single Phase
- Maximum Pump Running Current: 13 Amps
- Maximum Pump Starting Current: 78 Amps
- Recommended Pump HP: 1 HP or Less
NOTE: This switch must be used with pumps that provide integral thermal overload protection.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
SJE-Rhombus VERTICALMASTER® 3 Plus Pump Switch Product Resources
SJE-Rhombus VERTICALMASTER® 3 Plus Pump Switch Catalog Page
SJE-Rhombus VERTICALMASTER® 3 Plus Pump Switch Installation Instructions
