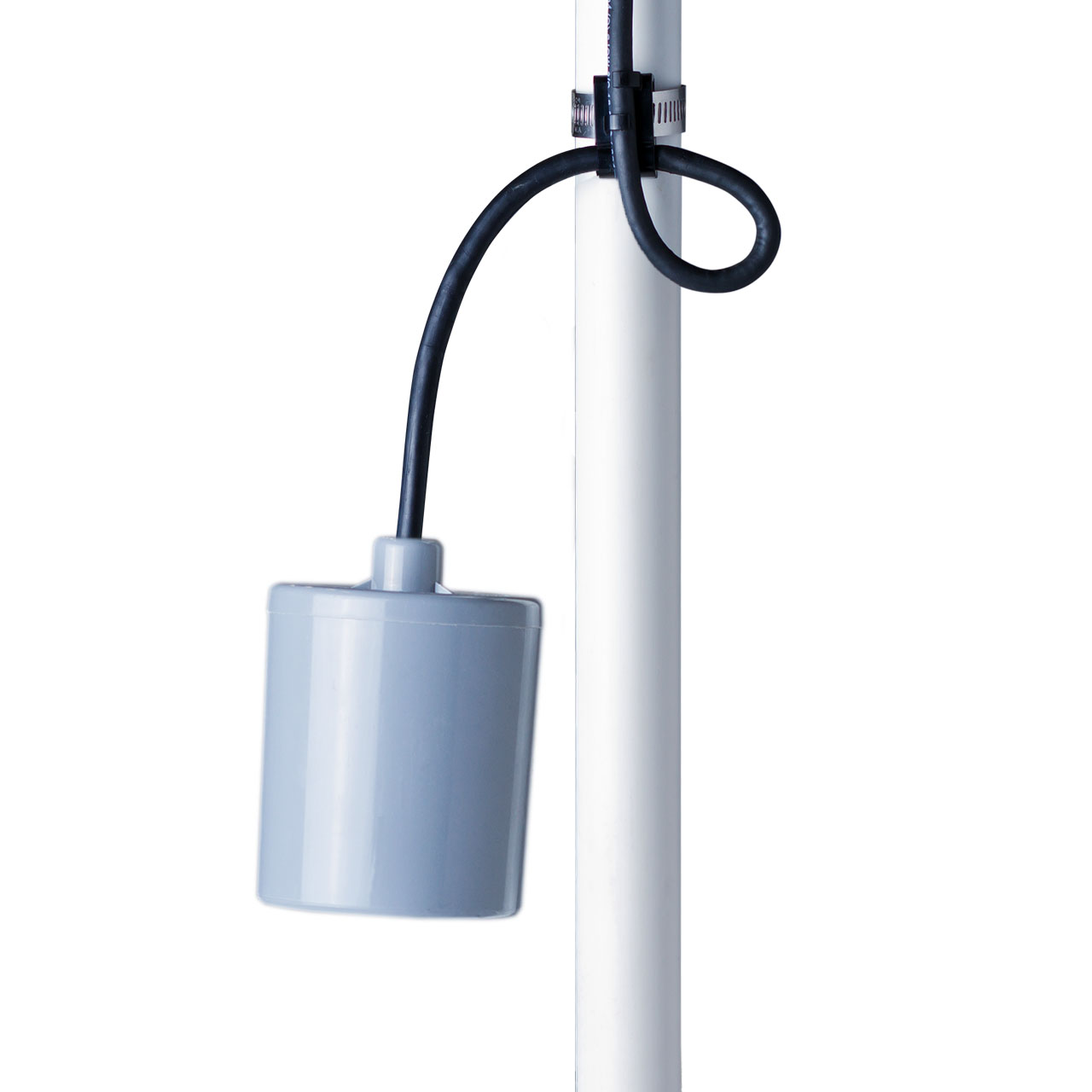

SJE-Rhombus 10PMSPDTPC PumpMaster SPDT Pump Switch Pump Up or Down 10' Cord Weighted Externally
SJE-Rhombus 10PMSPDTPC PumpMaster SPDT Pump Switch Pump Up or Down 10' Cord Weighted Externally
SKU : SJE1004835
In Stock Quantity:0
:
Brand
:
Regular price
$95.01 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
SJE-Rhombus PumpMaster® SPDT Pump Switch Description
Mechanically-Activated, Wide-Angle Switch Designed for Direct Control of Pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC.
The SJE PumpMaster® SPTD pump switch is not sensitive to rotation or turbulence, allowing it to be used in both calm and turbulent applications. It can be wired to work in either pump down (normally open) or pump up (normally close) applications.
SJE-Rhombus PumpMaster® SPDT Pump Switch Typical Application
- Water Applications
- Sewage Applications
SJE-Rhombus PumpMaster® SPDT Pump Switch Features
- Can be Wired to Work in Either Pump Down (normally open) or Pump Up (normally closed) Applications (Single Pole, Double Throw)
- Heavy-Duty Contacts
- For Direct Wiring in 120 or 230 VAC Applications.
- Adjustable Pumping Range of 7 to 36 Inches (18 -91 cm)
- Includes Standard Mounting Clamp and Boxed Packaging
- SJE PumpMaster®/SJE PumpMaster® SPDT Models Control Pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC
- SJE PumpMaster® Plus Models Control Pumps up to 3/4 HP at 120 VAC and 2 HP at 230 VAC
- UL Recognized for use in Water and Sewage
- CSA Certified
- Five-Year Limited Warranty
Specifications
Specifications
SJE-Rhombus PumpMaster® SPDT Pump Switch Specifications
- PUMPING RANGE: 7 to 36 Inches ( 18 cm to 91 cm)
- CABLE: 16 Gauge, 3 Conductor - (UL, CSA) SJOW, Water-Resistant (CPE) Can be Wired to Operate in Either Pump Down (normally open) or Pump Up (normally closed) Applications. (Single Pole, Double Throw)
- FLOAT: 3.05" Diameter x 3.56" Long (7.75 x 9.04 cm) High Impact, Corrosion Resistant, PVC Housing for Use in Sewage and Water up to 140°F (60°C)
- ELECTRICAL: 120 VAC 50/60Hz Single Phase
- Maximum Pump Running Current: 13 Amps
- Maximum Pump Starting Current: 85 Amps
- Recommended Pump HP: 1/2 HP or Less
- ELECTRICAL: 230 VAC 50/60Hz Single Phase
- Maximum Pump Running Current: 13 Amps
- Maximum Pump Starting Current: 85 Amps
- Recommended Pump HP: 1 HP or Less
NOTE: This switch must be used with pumps that provide integral thermal overload protection.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
SJE-Rhombus PumpMaster® SPDT Pump Switch Product Resources
SJE-Rhombus PumpMaster® SPDT Pump Switch Catalog Page
SJE-Rhombus Pump Switch Installation Instructions
SJE-Rhombus Mercury Restricted State Map (See next document for mercury alternatives)
