SJE-Rhombus 10PMD1WP PumpMaster Pump Switch 120V Pump Down 10' Cord W/Plug
SJE-Rhombus 10PMD1WP PumpMaster Pump Switch 120V Pump Down 10' Cord W/Plug
SKU : SJE1002630
In Stock Quantity:12
:
Brand
:
Regular price
$89.83 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

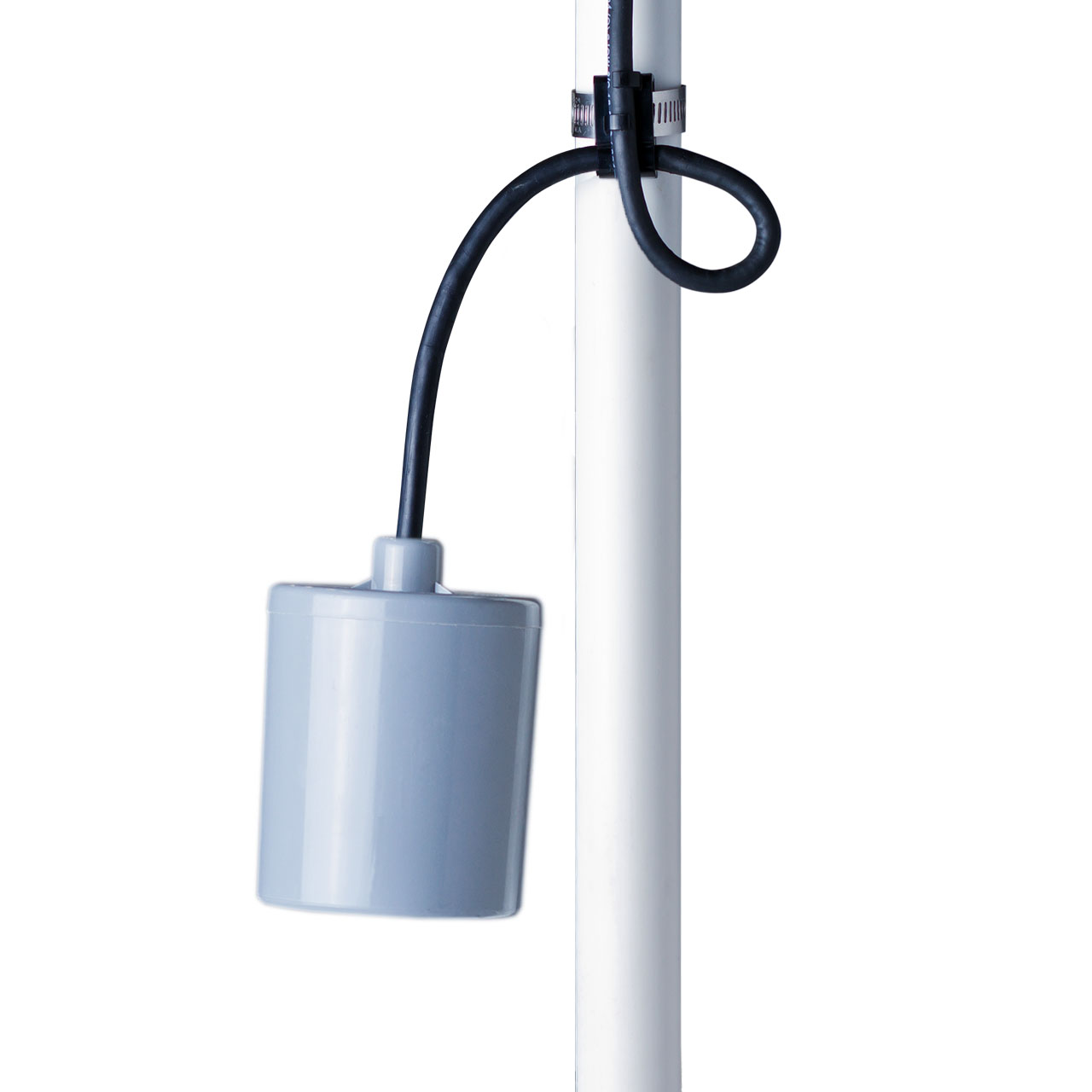

SJE-Rhombus PumpMaster® Pump Switch Description
Mechanically-Activated, wide-angle switch designed for direct control of pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC.
The SJE PumpMaster® pump switch provides automatic control of pump in water and sewage applications. The SJE PumpMaster® pump switch is not sensitive to rotation or turbulence, allowing it to be used in both calm and turbulent applications.
SJE-Rhombus PumpMaster® Pump Switch Typical Application
- Effluent and Sewage Pump Operation
- Water Pumping Applications
SJE-Rhombus PumpMaster® Pump Switch Features
- Heavy-Duty Contacts.
- Adjustable Pumping Range of 7 to 36 Inches (18 to 91 cm)
- Includes Standard Mounting Clamp and Boxed Packaging
- SJE PumpMaster®/SJE PumpMaster® SPDT Models Control Pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC
- SJE PumpMaster® Plus Models Control Pumps up to 3/4 HP at 120 VAC and 2 HP at 230 VAC
- CSA Certified
- Five-Year Limited Warranty
Specifications
Specifications
SJE-Rhombus PumpMaster® Pump Switch Specifications
- CABLE: Flexible 16 Gauge, 2 Conductor (UL, CSA) SJOW, Water-Resistant (CPE)
- FLOAT: 3.05" Diameter x 3.56" Long (7.75 x 9.04 cm) High Impact, Corrosion Resistant, PVC Housing for use in Sewage and Water up to 140°F (60°C)
- ELECTRICAL: 120 VAC 50/60Hz Single Phase
- Maximum Pump Running Current: 13 Amps
- Maximum Pump Starting Current: 85 Amps
- Recommended Pump HP: 1/2 HP or Less
- ELECTRICAL: 230 VAC 50/60Hz Single Phase
- Maximum Pump Running Current: 13 Amps
- Maximum Pump Starting Current: 85 Amps
- Recommended Pump HP: 1 HP or Less
NOTE: This switch must be used with pumps that provide integral thermal overload protection.
