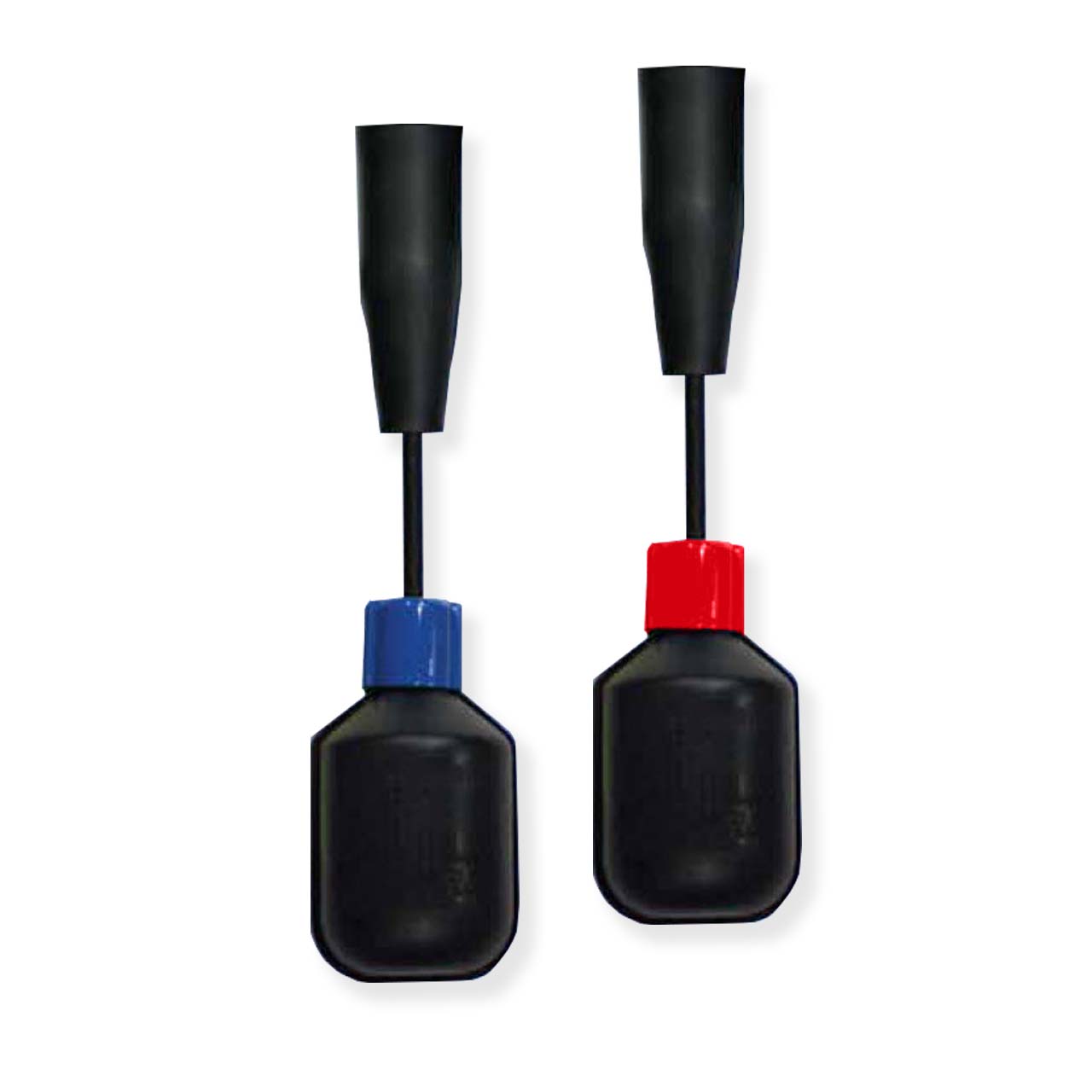

SJE-Rhombus 10MAPNPCNOEZ EZconnex Narrow Angle Float Switch Normally Open 10' Cord
SJE-Rhombus 10MAPNPCNOEZ EZconnex Narrow Angle Float Switch Normally Open 10' Cord
SKU : SJE1046924
In Stock Quantity:0
:
Brand
:
Regular price
$69.35 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
SJE-Rhombus EZconnex® Float Switch Features
- Standard Cable Lengths of 5, 10, or 20 ft.
- Blue Cap for Normally Open (high level) Applications or Red Cap for Normally Closed (low level) Applications.
- With Narrow or Wide-Angle Pumping Ranges.
- Comes Standard with:
- Mounting Clamp: for Applications where the Switch can be Attached to a Discharge Pipe or Similiar Mounting Device.
NOTE: Do not Suspend Floats Directly from Manifold
Specifications
Specifications
SJE-Rhombus EZconnex® Float Switch Specifications
- CABLE: Flexible 18 Guage, 2 Conductor (UL, CSA) SJOW, Water-Resistant (CPE)
- FLOAT: 2.74" Diameter X 4.83" Long (7.0 cm x 12.3 cm), High Impact, Corrosion Resistant, Polypropylene Housing for use in Sewage and Water up to 140° F (60° C)
- MAXIMUM WATER DEPTH: 30' (9 meters), 13 PSI
- ELECTRICAL:
- 125 VAC Maximum Electrical Load: 1 Amp, Minimum Electric Load: 0.160 Milliamps
- 30 VDC Maximum Electrical Load: 1 Amp, Minimum Electric Load: 0.160 Milliamps
- 5 VDC Minimum Electrical Load: 1 Milliamp
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
SJE-Rhombus EZconnex® Float Switch Product Resources
SJE-Rhombus EZconnex 3-Port Float Switch Connection System Catalog Page
SJE-Rhombus EZconnex 4-Port Float Switch Connection System Catalog Page
SJE-Rhombus EZconnex 3-Port Float Switch Connection System Specifications
SJE-Rhombus EZconnex 4-Port Float Switch Connection System Specifications
SJE-Rhombus EZconnex Float Switch and Sealing Plug Installation Instructions
SJE-Rhombus EZconnex MegaMaster Float Switch and Sealing Plug Installation Instructions
