SJE-Rhombus 10JSU2WP Junior Super Single Pump Switch 230V Pump Up 10' Cord W/ Plug
SJE-Rhombus 10JSU2WP Junior Super Single Pump Switch 230V Pump Up 10' Cord W/ Plug
SKU : SJE1001921
In Stock Quantity:0
:
Brand
:
Regular price
$123.04 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

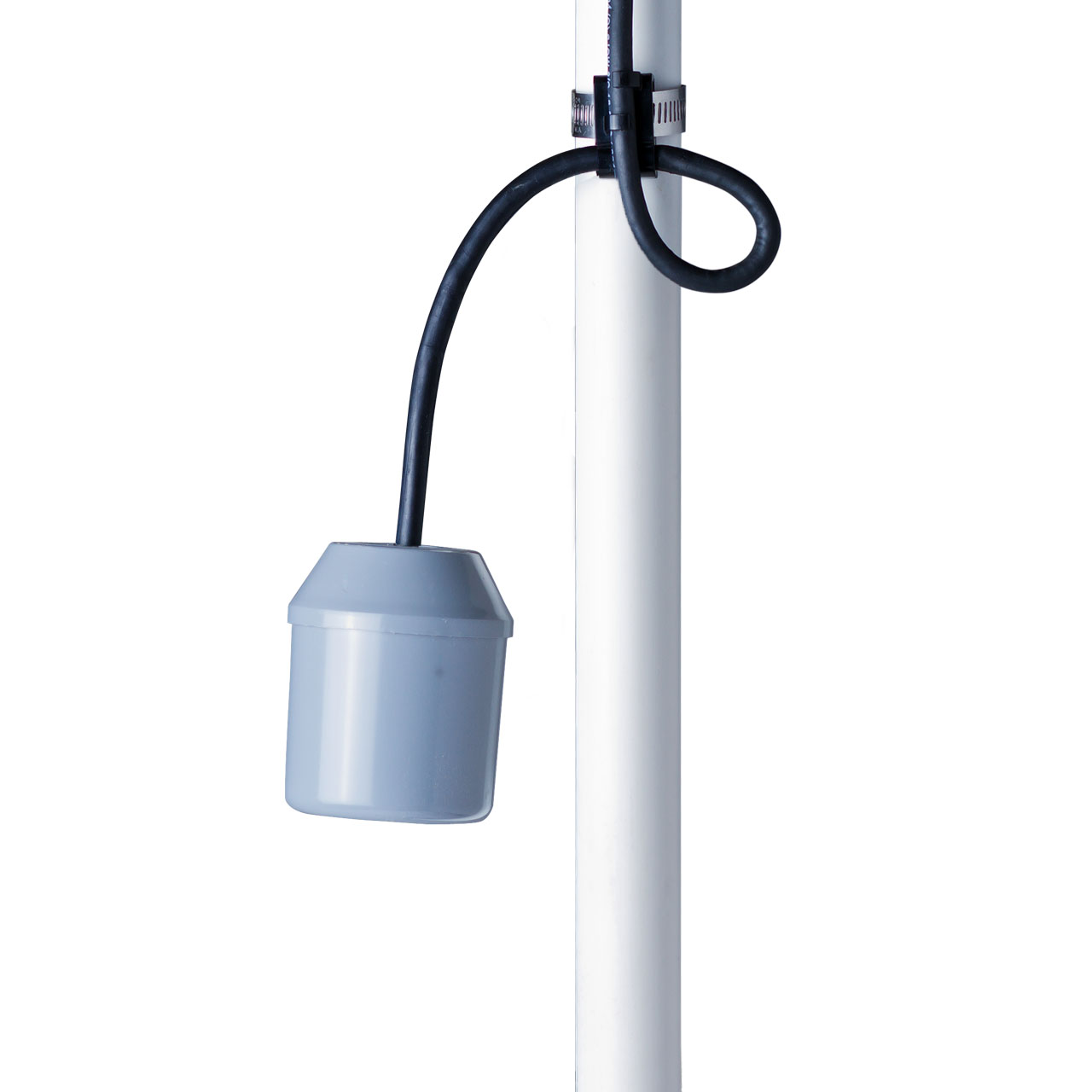

SJE-Rhombus Junior Super Single® Pump Switch Description
Mercury Activated, Wide-Angle Switch Designed for Direct Control of Pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC.
The Junior Super Single® pump switch is a mercury-activated, wide angle switch designed for direct control of pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC in non-potable water and sewage applications. Although this switch is not sensitive to rotation, it is affected by turbulence and should be mounted in a non-turbulent location. The Junior Super Single® pump switch is not recommended for use with motor contactors or relays because the motor contactor or relay may experience chattering. A Super Single® or Double Float® pump switch would operate more efficiently in these installations.
SJE-Rhombus Junior Super Single® Pump Switch Typical Application
- Non-Potable Water Applications
- Sewage Applications
SJE-Rhombus Junior Super Single® Pump Switch Features
- Controls Pumps up to 1/2 HP at 120 VAC and 1 HP at 230 VAC
- Adjustable Pumping Range of 6.5 to 19 Inches (16.5 to 48 cm).
- Includes Standard Mounting Clamp and Boxed Packaging
- UL Recognized for Use in Non-Potable Water and Sewage
- CSA Certified
- Five-Year Limited Warranty
Specifications
Specifications
SJE-Rhombus Junior Super Single® Pump Switch Specifications
- CABLE: Flexible 16 Gauge, 2 Conductor (UL, CSA) SJOW, Water-Resistant (CPE)
- FLOAT: 2.81" Diameter x 3.42" Long (7.14 cm x 8.68 cm), High Impact, Corrosion Resistant, PVC Housing for Use in Sewage and Non-Potable Water up to 140°F (60°C)
- MERCURY SWITCH: Mercury-to-Metal Contacts, Hermetically Sealed in a Steel Capsule
- ELECTRICAL: 120 VAC 50/60Hz Single Phase
- Maximum Pump Running Current: 13 Amps
- Maximum Pump Starting Current: 40 Amps
- Recommended Pump HP: 1/2 HP or Less
- ELECTRICAL: 230 VAC 50/60Hz Single Phase
- Maximum Pump Running Current: 8 Amps
- Maximum Pump Starting Current: 20 Amps
- Recommended Pump HP: 1 HP or Less
NOTE: This switch must be used with pumps that provide integral thermal overload protection.
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
SJE-Rhombus Junior Super Single® Pump Switch Product Resources
SJE-Rhombus Junior Super Single Pump Switch Catalog Page
SJE-Rhombus Pump Switch Installation Instructions
SJE-Rhombus Mercury Restricted State Map (See next document for mercury alternatives)
