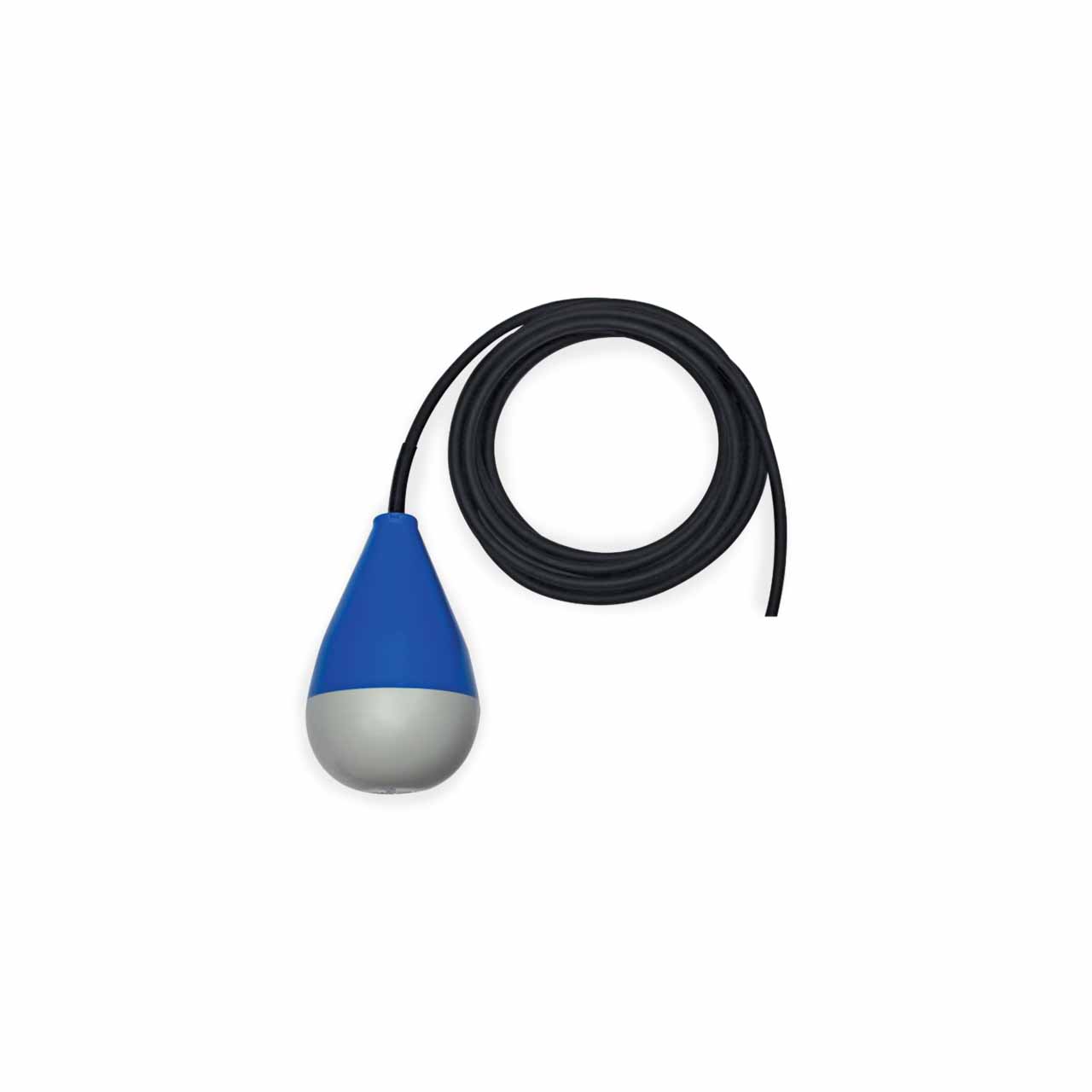

SJE-Rhombus 100MGMSPDT MegaMaster® Mechanical Control Switch 100' Cord
SJE-Rhombus 100MGMSPDT MegaMaster® Mechanical Control Switch 100' Cord
SKU : SJE1046503
In Stock Quantity:9
:
Brand
:
Regular price
$194.08 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
SJE-Rhombus MegaMaster® Control Switch Description
Mechanically-Activated, Internally Weighted Control Switch
The SJE MegaMaster® is a mechanically-activated, narrow-angle, internally weighted float switch designed for level control in municipal sewage pumping stations. The internal switching mechanism contains a unique gold cross-point contacts, providing precision and reliable control signals up to 1 amp.
The SJE MegaMaster® control switch can be wired to work in either normally open or normally closed applications. It is not sensitive to rotation.
Normally Open Models (high level): The control switch turns on (closes) when the float tips slightly above horizontal signaling a high level and turns off (opens) when the float drops slightly below horizontal.
Normally Closed Models (low levels): The control switch turns on (closes) when the float tips slightly below horizontal signaling a low level and turns off (opens) when the float tips slightly above horizontal.
SJE-Rhombus MegaMaster® Control Switch Typical Application
- Lift Stations
- Non-Potable Water
- PLC (Programmable Logic Controllers)
- Intrinsically Safe Applications
SJE-Rhombus MegaMaster® Control Switch Features
- Internally Weighted.
- 3-Wire Cable - SPDT (Single Pole, Double Throw) Can Be Wired as Normally Open or Normally Closed. Wire Color: Common (white), N.O. (black), N.C. (red).
- Large Twin Wall Tear Drop Shape Design Offers Increased Buoyancy.
- Two-Color Housing Allows for Easy Identification of Float Position.
- Unique Gold Cross-Point Contacts Proved Precision and Reliable Control Signals up to 1 Amp.
- Excellent Solution for Applications with High Grease Content.
- CSA Certified.
- Five-Year Limited Warranty
Specifications
Specifications
SJE-Rhombus MegaMaster® Control Switch Specifications
- CABLE: Flexible 18 Gauge, 3 Conductor (UL) SJOW, Water-Resistant (CPE)
- FLOAT: 4.03" Diameter x 6.62" Long (10.2 x 16.8 cm) High Impact, Corrosion Resistant, Polypropylene Housing for use in Sewage and Water up to 140°F (60°C)
- MAXIMUM WATER DEPTH: 30 Feet (9 meters), 13 PSI (90 kPa)
- ELECTRICAL:
- Maximum Electrical Load: 1 amp, 125 VAC
- Minimum Electrical Load: 1 mA, 4 VDC
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
SJE-Rhombus MegaMaster® Control Switch Product Resources
SJE-Rhombus MegaMaster Control Switch Specifications
SJE-Rhombus MegaMaster Control Switch Features & Benefits
SJE-Rhombus MegaMaster Control Switch Installation Instructions
