Shakti 5000000490 Encapsulated Submersible Motor 4" 10 HP 460V 3-Wire Three-Phase
Shakti 5000000490 Encapsulated Submersible Motor 4" 10 HP 460V 3-Wire Three-Phase
SKU : SKT5000000490
In Stock Quantity:0
:
Brand
:
Regular price
$2,858.80 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description

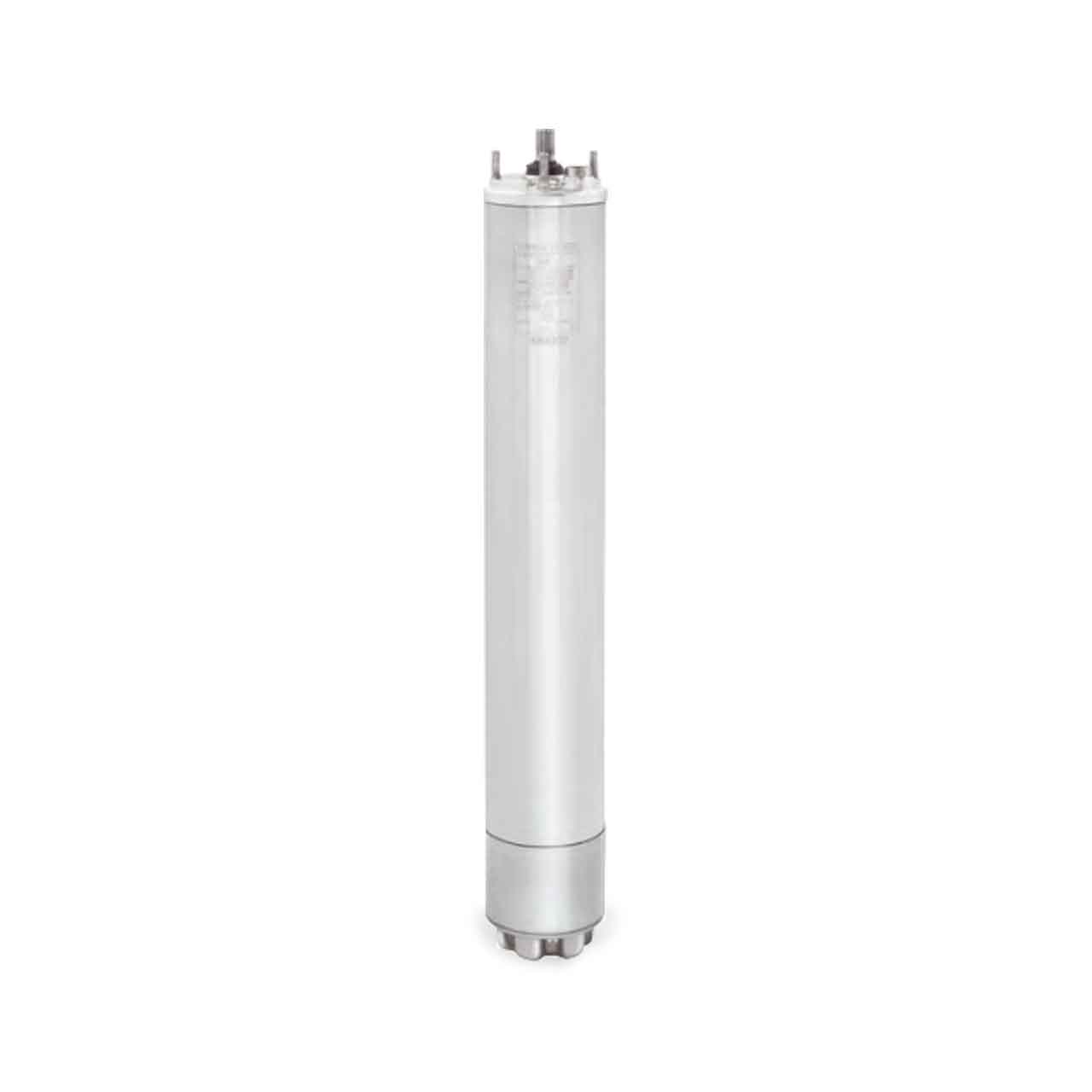

Shakti 4" Encapsulated Submersible Motors
Shakti 4 Inch Encapsulated Motors are built for dependable operation in 4" diameter or larger water wells. It is fitted with water lubricated radial and thrust bearings for a maintenance - free operations. The motor is filled with a special fluid, providing frost protection down to 5°F storage temperature. A special diaphragm ensures pressure compensation inside the motor.
Shakti 4" Encapsulated Submersible Motors Features
- Hermetically Sealed Stator, Anti Track, Self Healing Stator Resin Prevents Motor Burn Out.
- High Efficiency Electrical Design (low operation cost, cooler winding temperature).
- Removable Water Resistance Lead Connector.
- Motor with Sand Slinger.
- Cable Material in Accordance with Regulations for Drinking Water.
- Water Lubricated Radial and Thrust Bearing.
- All Motors Pre-Filled and 100% Tested.
- Non Contaminating, Water-Filled Design.
- Max. Storage Temperature 5°F and 140°F.
Specifications
Specifications
Shakti 4" Encapsulated Submersible Motors Specifications
- BODY CONSTRUCTION: 304 Stainless Steel
- HORSEPOWER: 10 HP
- CABLE LENGTH: 10 FT
- VOLTAGE: 3ø, 460V
- RPM: 3450
- SERVICE FACTOR: 1.15
- DOWNWARD THRUST (lbs): 4400 lbs
- MAX AMBIENT TEMPERATURE: 86°F/30°C
- DUTY RATING: Continuous
- FULL LOAD AMPS: 16
- LEAD: 3-Wire
- CONTROL BOX REQUIRED
Shakti 4" Encapsulated Submersible Motor Performance Data
![](https://cdn.shopify.com/s/files/1/0857/5552/7485/files/threephase_3wire_specs1.png?v=1777411933")
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Shakti 4" Encapsulated Submersible Motors Product Resources
Shakti 4" Encapsulated Submersible Motor Brochure
Shakti 4" Encapsulated Submersible Motor Installation Instructions
