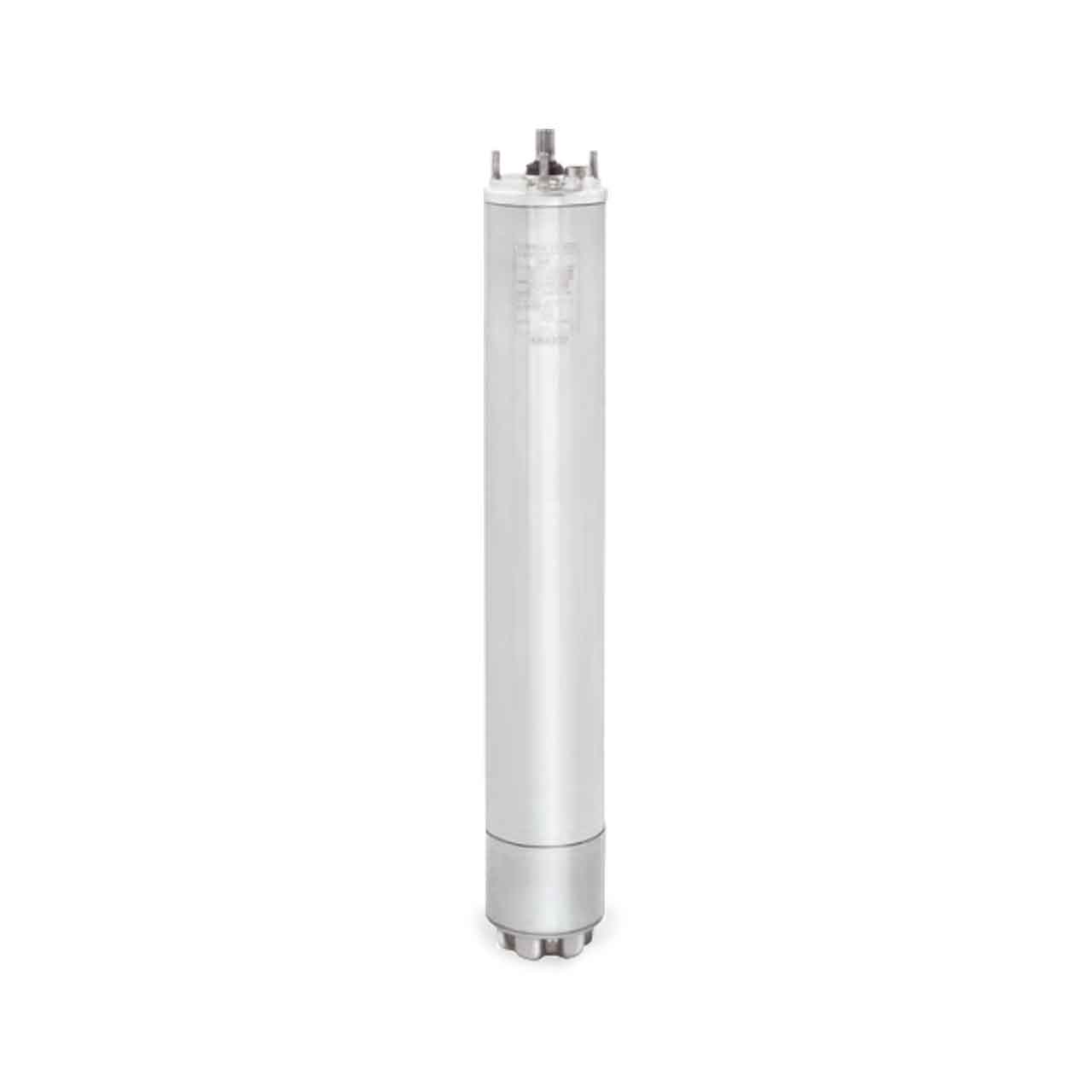

Shakti 4" Encapsulated Submersible Motors

Shakti 4 Inch Encapsulated Motors are built for dependable operation in 4" diameter or larger water wells. It is fitted with water lubricated radial and thrust bearings for a maintenance - free operations. The motor is filled with a special fluid, providing frost protection down to 5°F storage temperature. A special diaphragm ensures pressure compensation inside the motor.

Shakti 4" Encapsulated Submersible Motors Features

• Hermetically Sealed Stator, Anti Track, Self Healing Stator Resin Prevents Motor Burn Out.
• High Efficiency Electrical Design (low operation cost, cooler winding temperature).
• Removable Water Resistance Lead Connector.
• Motor with Sand Slinger.
• Cable Material in Accordance with Regulations for Drinking Water.
• Water Lubricated Radial and Thrust Bearing.
• All Motors Pre-Filled and 100% Tested.
• Non Contaminating, Water-Filled Design.
• Max. Storage Temperature 5°F and 140°F.

Shakti 4" Encapsulated Submersible Motors Specifications

• BODY CONSTRUCTION: 304 Stainless Steel
• HORSEPOWER: 1.0 HP
• VOLTAGE: 3ø, 460V
• CABLE LENGTH: 5-1/2 ft.
• RPM: 3450
• SERVICE FACTOR: 1.4
• DOWNWARD THRUST (lbs): 1500 lbs
• MAX AMBIENT TEMPERATURE: 86°F/30°C
• DUTY RATING: Continuous
• FULL LOAD AMPS: 2.0
• LEAD: 3-Wire
• CONTROL BOX REQUIRED

Shakti 4" Encapsulated Submersible Motor Performance Data

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Shakti 4" Encapsulated Submersible Motors Product Resources

Shakti 4" Encapsulated Submersible Motor Brochure

Shakti 4" Encapsulated Submersible Motor Installation Instructions
