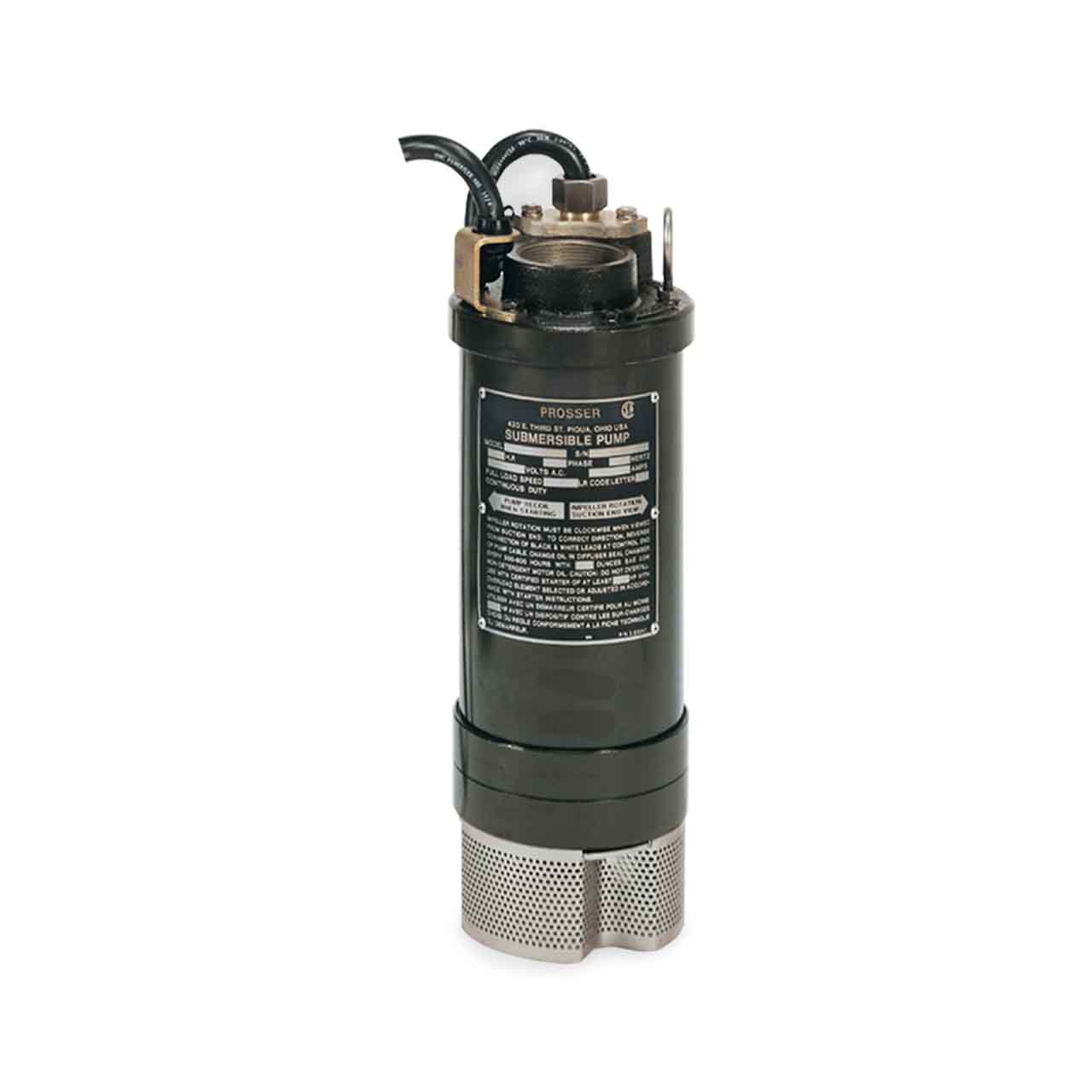

Prosser 9-25132-04 High Head Submersible Dewatering Pump 2-1/2 HP 230V 3PH 50' Cord w/ Watertight Control Box
Prosser 9-25132-04 High Head Submersible Dewatering Pump 2-1/2 HP 230V 3PH 50' Cord w/ Watertight Control Box
SKU : PSR92513204
In Stock Quantity:0
:
Brand
:
Regular price
$13,500.90 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Prosser Series 9-25000 High Head Dewatering Pump
Prosser's small but powerful Portable Electric Submersible Pumps are compact, lightweight units. They are quiet and will operate in any position. No priming, suction hose or foot valves required. Prosser pumps can be easily staged for higher head applications.
The unique in-line design assures a cool running motor with heat transferred to the pumped liquid. Prosser pumps can operate continuously in 104°F (40°C) temperature water and within a range of 5 to 9PH.
Prosser Series 9-25000 High Head Dewatering Pump Applications
- Construction
- Industrial
- Marine
- Utilities
- Municipal and Government
- Mining
- Dewatering
- Drainage Water Transfer
- Waterscapes
- Water Treatment
- Landfill Pollution Control
Prosser Series 9-25000 High Head Dewatering Pump Features and Benefits
- Slim-Line Design Allows Prosser Pumps to fit where other Pumps can't.
- Light Weight for Easy Portability.
- Require no Priming, Suction Hose or Foot Valve. Just Submerge and they are Ready to go.
- Operate in any Position.
- Able to Run Dry for a Reasonable Period of Time without Damage.
- Inline Design Ensures Cool-Running Motor.
- Inline Suction and Discharge Allow Pumps to Operate Doubling Head at a Given Flow, which Provides Versatility in Jobs Site Variations.
- Watertight NEMA 4 Control Box Provides Overload and Short Circuit Protection, Start & Run Capacitors. ON-OFF Switch.
- Upper Bearing is Single Row, Shielded, Ball. Prelubricated High-Temperature Grease. Radial Load.
- Lower Bearing is Single Row, Shielded, Ball. Prelubricated High-Temperature Grease. Radial & Thrust Load.
Specifications
Specifications
Prosser 9-25132-04 Submersible High Head Dewatering Pump Specifications
- BODY CONSTRUCTION: 6063T6 Aluminum, Hard Adonized
- HORSEPOWER: 2.5 HP
- VOLTAGE: 230 V
- PHASE: 3 Ph
- HERTZ: 60 Hz
- RPM: 3450 RPM
- FULL LOAD AMPS: 6.8
- DISCHARGE PIPE SIZE: 2.0" NPT Female Discharge
- CORD LENGTH: 50'
- CORD TYPE: SOW / CORD SIZE: 12/4
- MOTOR: NEMA Design B - Three Phase
- CONTROL BOX: Three Phase, Watertight, NEMA 4
- MAX HEAD: 90'
- MAX FLOW RATE: 155 GPM
Prosser Series 9-25000 High Head Dewatering Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Prosser Series 9-25000 High Head Dewatering Pump Product Resources
Download Prosser Dewatering Pump Brochure
Download Prosser Series 9-25000 Dewatering Pump Catalog Sheet
