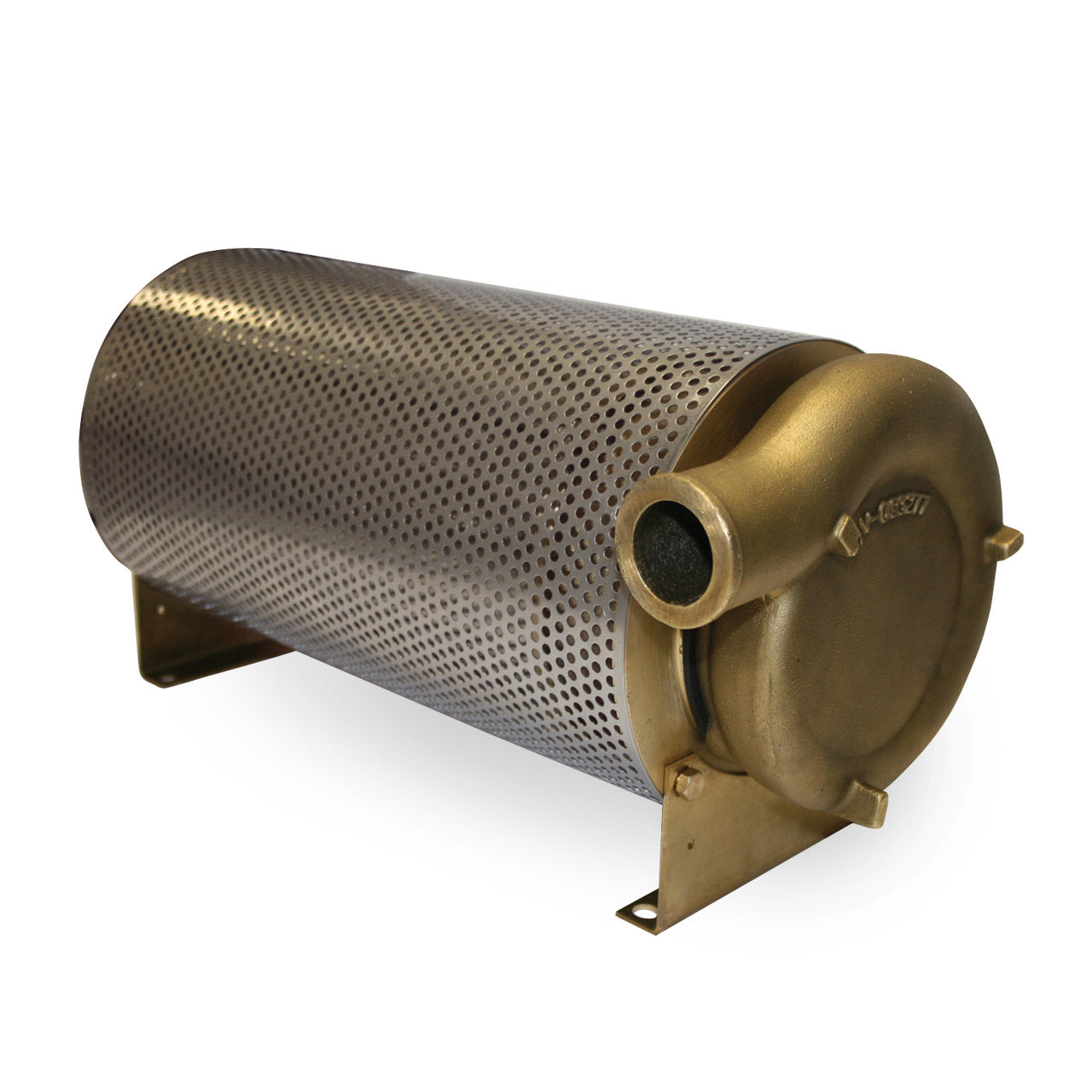

Power-Flo PFU51 Submersible Fountain Pump 0.5 HP 115V 1PH Manual 12' Cord
Power-Flo PFU51 Submersible Fountain Pump 0.5 HP 115V 1PH Manual 12' Cord
SKU : PFPFU51
In Stock Quantity:0
:
Brand
:
Regular price
$3,642.13 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Power-Flo Submersible Fountain Pump Description
The Power-Flo PFU102 Submersible Pump is used in decorative water displays.
Power-Flo Submersible Fountain Pump Typical Application
- Decorative Water Features
- Designed to Meet The Demands of Water Feature Applications.
Power-Flo Submersible Fountain Pump Features
- DISCHARGE: 1-3/4" Hose Connection, 90° Rotation and 1" NPT Female
- LIQUID TEMPERATURE: 145°F Continuous
- VOLUTE: Brass
- INTERMEDIATE: Brass
- HOUSING END PIECE: Brass
- HOUSING TUBE: 304 Stainless Steel
- SCREEN: 304 Stainless Steel
- PUMP SUPPORTS: 304 Stainless Steel
- IMPELLER: 1/3 & 1/2HP - Four Vane, Open, Brass & 3/4 & 1 HP - Six Vane Open, Brass
- SHAFT: 416 Stainless Steel
- O-RINGS: Buna-N
- HARDWARE: 300 Series Stainless Steel
- SEAL: Single Mechanical, Carbon/Ceramic/Buna_N
- POWER CORD: 12 Ft., SOW, 16/3, 0.395” Diameter
- BEARING - MOTOR END: Single Row Ball, Oil Lubricated
- BEARING - PUMP END: Single Row Ball, Oil Lubricated
- MOTOR: Class H Insulation, NEMA B Design, Oil Filled, Squirrel Cage Induction, Single Phase, Permanent Split Capacitor (PSC), Includes Overload Protection in Motor
- WARRANTY: 1 Year
Specifications
Specifications
Power-Flo PFU51 Technical Details
- VOLTAGE: 1ø, 115V, 60Hz
- HORSEPOWER: 0.5 HP
- AMP DRAW (full load): 9.5
- MOTOR TYPE: Class H insulation, NEMA B
- RPM: 3450
- MAXIMUM HEAD: 43'
- MAXIMUM CAPACITY: 77 GPM
- DISCHARGE PIPE SIZE: 1.0" NPT Female
- IMPELLER TYPE: 4-Vane Open, Brass
- CORD LENGTH: 12'
- CORD SIZE: 16/3 SOW
- BODY CONSTRUCTION: 304 Stainless Steel
- MAXIMUM LIQUID TEMPERATURE: 145°F (60°C)
- DUTY RATING: Continuous
Power-Flo Submersible Fountain Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Power-Flo Submersible Fountain Pump Product Resources
Download Power-Flo Submersible Fountain Pump Catalog Sheet
Download Power-Flo Submersible Fountain Pump Installation and Owners Manual
