Power-Flo Submersible Fountain Pump Description

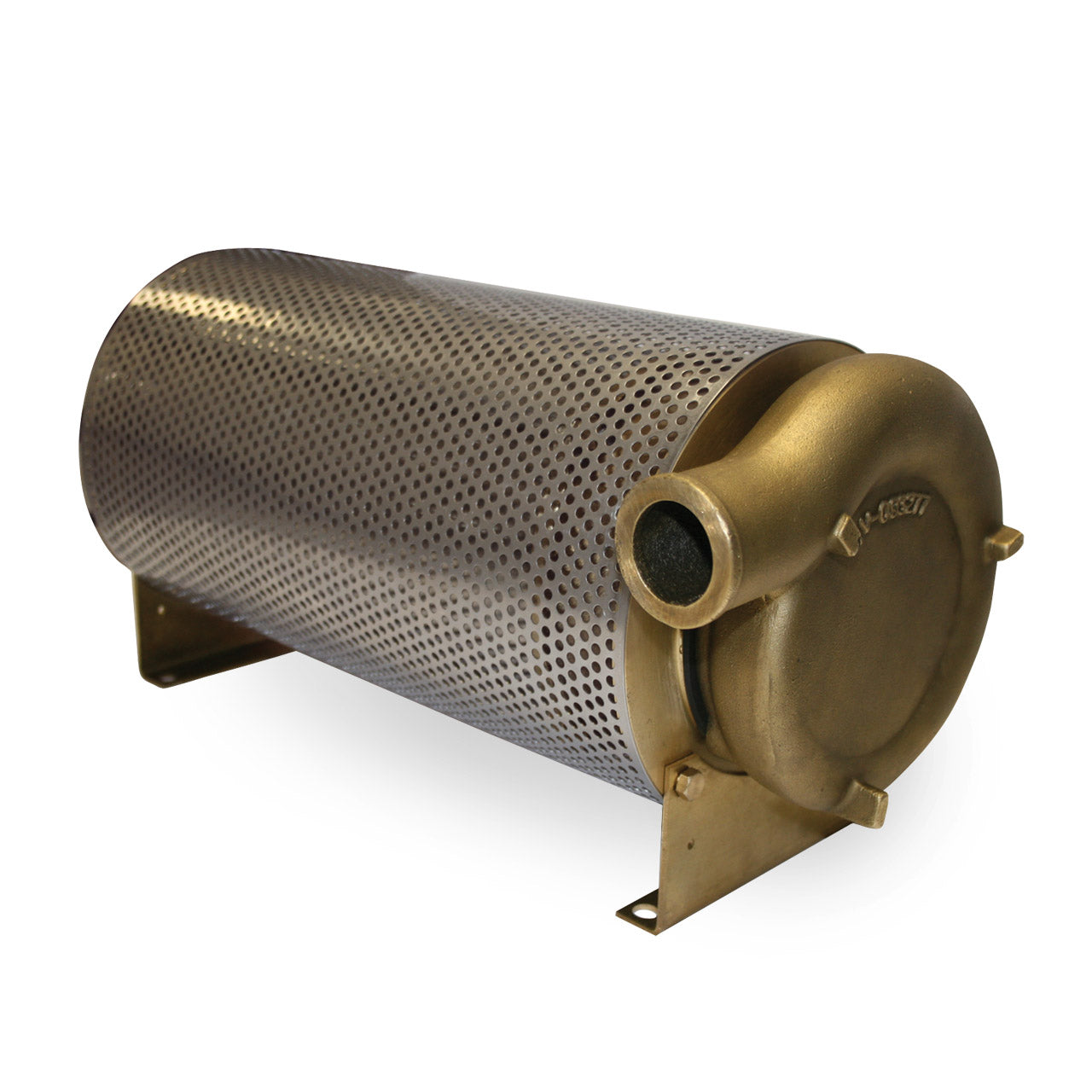

The Power-Flo PFU31 Submersible Pump is used in decorative water displays.

Power-Flo Submersible Fountain Pump Typical Application

• Decorative Water Features
• Designed to Meet The Demands of Water Feature Applications.

Power-Flo Submersible Fountain Pump Features

• DISCHARGE: 1-3/4" Hose Connection, 90° Rotation and 1" NPT Female
• LIQUID TEMPERATURE: 145°F Continuous
• VOLUTE: Brass
• INTERMEDIATE: Brass
• HOUSING END PIECE: Brass
• HOUSING TUBE: 304 Stainless Steel
• SCREEN: 304 Stainless Steel
• PUMP SUPPORTS: 304 Stainless Steel
• IMPELLER: 1/3 & 1/2HP - Four Vane, Open, Brass & 3/4 & 1 HP - Six Vane Open, Brass
• SHAFT: 416 Stainless Steel
• O-RINGS: Buna-N
• HARDWARE: 300 Series Stainless Steel
• SEAL: Single Mechanical, Carbon/Ceramic/Buna_N
• POWER CORD: 12 Ft., SOW, 16/3, 0.395” Diameter
• BEARING - MOTOR END: Single Row Ball, Oil Lubricated
• BEARING - PUMP END: Single Row Ball, Oil Lubricated
• MOTOR: Class H Insulation, NEMA B Design, Oil Filled, Squirrel Cage Induction, Single Phase, Permanent Split Capacitor (PSC), Includes Overload Protection in Motor
• WARRANTY: 1 Year

Power-Flo PFU31 Technical Details

• VOLTAGE: 1ø, 115V, 60Hz
• HORSEPOWER: 0.33 HP
• AMP DRAW (full load): 8.0
• MOTOR TYPE: Class H insulation, NEMA B
• RPM: 3450
• MAXIMUM HEAD: 34'
• MAXIMUM CAPACITY: 68 GPM
• DISCHARGE PIPE SIZE: 1.0" NPT Female
• IMPELLER TYPE: 4-Vane Open, Brass
• CORD LENGTH: 12'
• CORD SIZE: 16/3 SOW
• BODY CONSTRUCTION: 304 Stainless Steel
• MAXIMUM LIQUID TEMPERATURE: 145°F (60°C)
• DUTY RATING: Continuous

Power-Flo Submersible Fountain Pump Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Power-Flo Submersible Fountain Pump Product Resources

Download Power-Flo Submersible Fountain Pump Catalog Sheet

Download Power-Flo Submersible Fountain Pump Installation and Owners Manual
