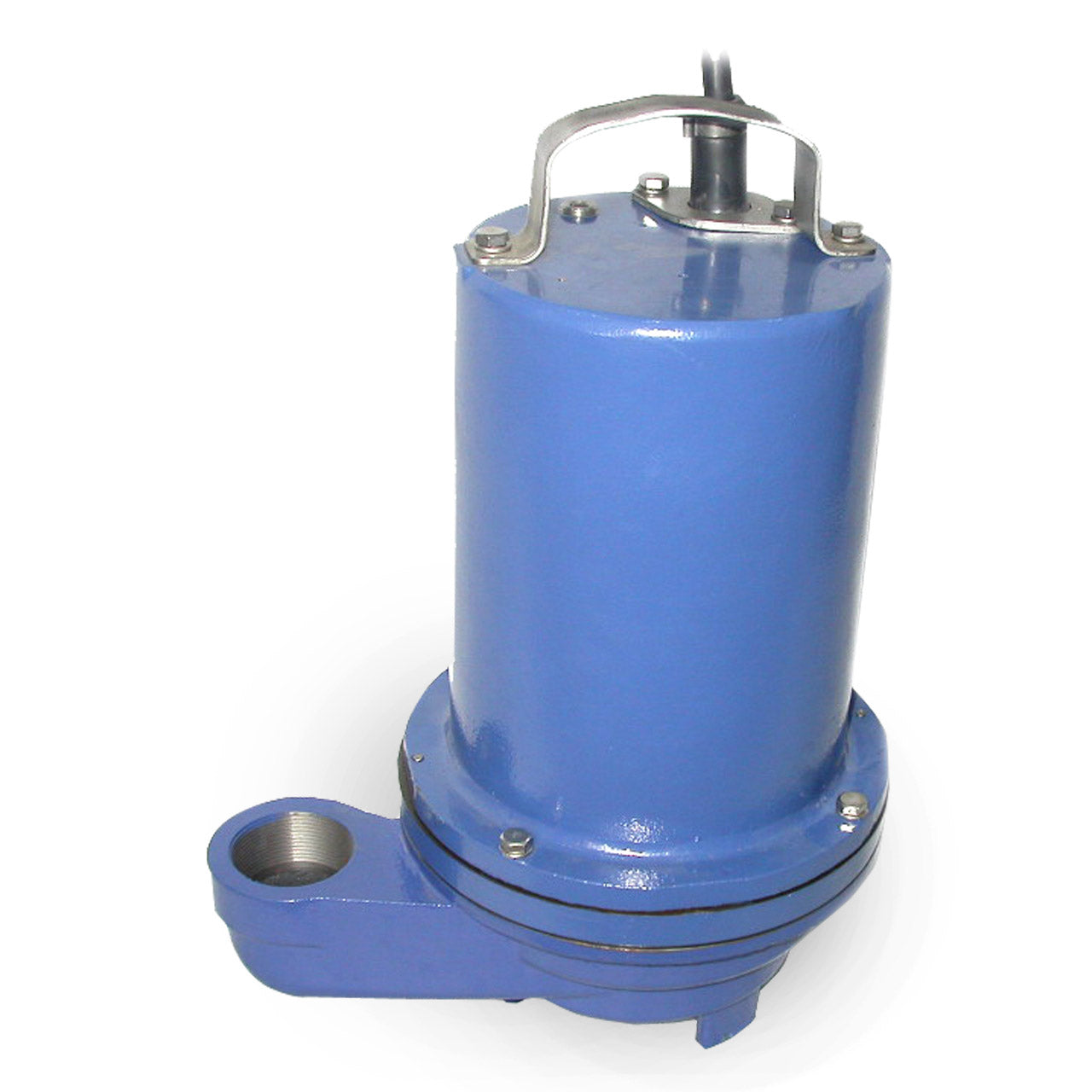

Power-Flo PFSTEP Series Effluent Pump Description

General purpose pump for residential, light industrial and commercial sump or effluent applications.

Power-Flo PFSTEP Series Effluent Pump Typical Application

Septic Tank / Effluent is Specifically Designed to Meet the Demands of Residential Septic Tank Effluent Applications.

Power-Flo PFSTEP Series Effluent Pump Features

• DISCHARGE: 2” NPT, Female, Vertical
• LIQUID TEMPERATURE: 104°F Continuous
• MOTOR HOUSING/ VOLUTE: Cast Iron, Class 30
• SEAL PLATE: Cast Iron, Class 30
• IMPELLER: Single Vane Enclosed, Polypropylene with Stainless Steel Insert
• SHAFT & HARDWARE: Stainless steel
• SQUARE RINGS: Buna-N
• SEAL: Outboard, Single Mechanical, .625", Type "C", U.S. Seal, Oil Filled Chamber, Carbon/Ceramic/Buna-N
• UPPER BEARING: Single Row, Ball, Oil Lubricated
• LOWER BEARING: Single Row, ball, Oil Lubricated
• POWER CORD: 20 FT., Cord with Plug, Fast Disconnect Design
• 115 VOLT: SJTOW, 14/3 Cord, .39” Dia.
• 230 VOLT: SOW, 14/3 Cord with plug, .53” Dia.
• MOTOR: Class B Insulation, Oil Filled
• SINGLE PHASE: Permanent Split Capacitor (PSC), Includes Overload Protection in Motor
• WARRANTY: 2 Year

Power-Flo PFSTEP522 Specifications

• VOLTAGE: 1ø, 230V, 60Hz
• HORSEPOWER: 0.5 HP
• AMP DRAW (full load): 7.0
• MOTOR TYPE: Class B Insulation, Oil Filled
• RPM: 3450
• MAXIMUM HEAD: 80'
• MAXIMUM CAPACITY: 79 GPM
• DISCHARGE PIPE SIZE: 2.0" NPT Female, Vertical
• MAXIMUM SOLIDS HANDLING SIZE: 0.75" Spherical Solids
• IMPELLER TYPE: Single Vane Enclosed, Polypropylene with Stainless Steel Insert
• IMPELLER DIAMETER: 4.62"
• CORD LENGTH: 15'
• CORD SIZE: 14/3; Type: SOW
• BODY CONSTRUCTION: Cast Iron, Class 30
• MAXIMUM LIQUID TEMPERATURE: 104°F Continuous

Power-Flo PFSTEP Series Effluent Pump Performance Curve
