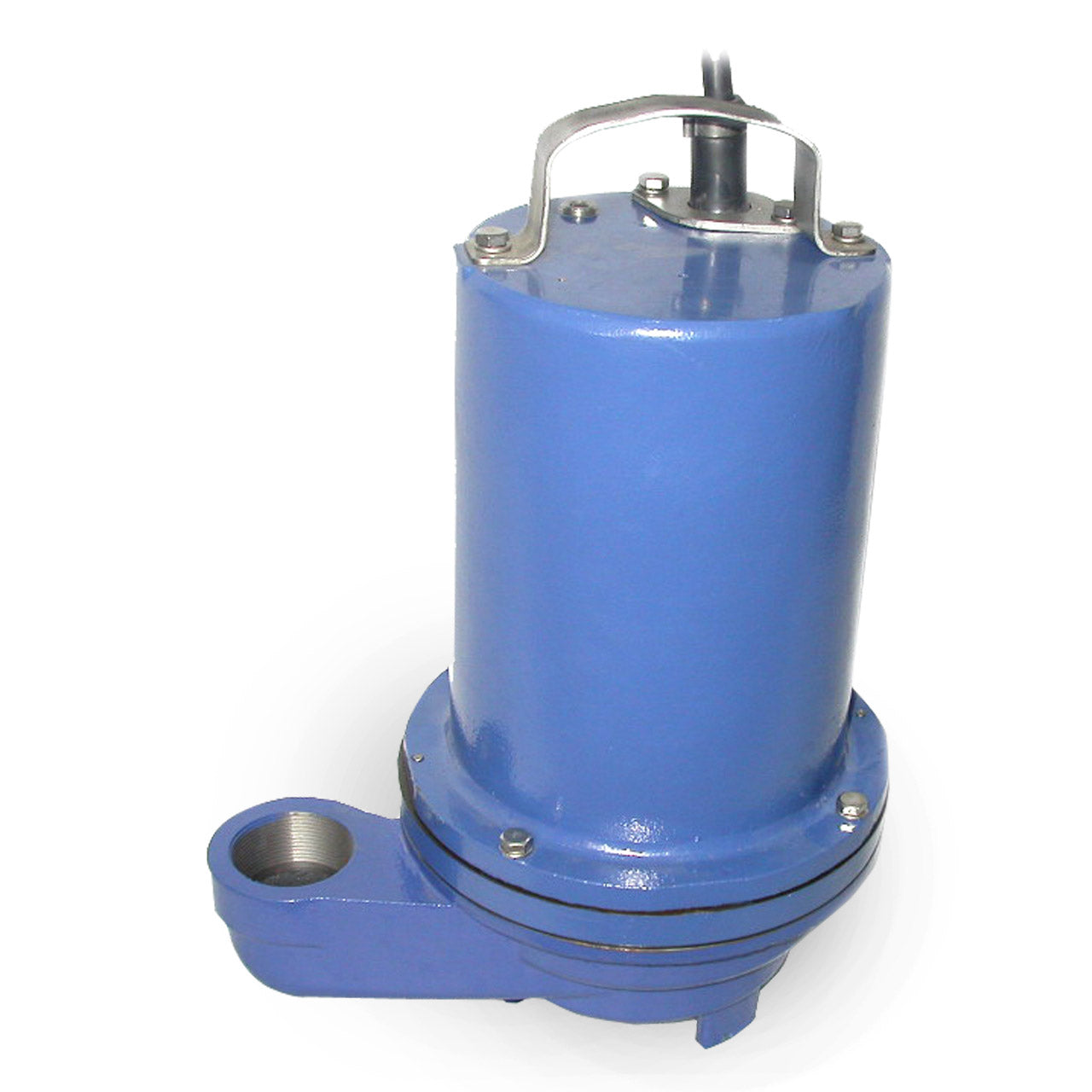

Power-Flo PFSTEP512 Effluent Pump 0.5 HP 115V 1PH Manual 20' Cord
Power-Flo PFSTEP512 Effluent Pump 0.5 HP 115V 1PH Manual 20' Cord
SKU : PFPFSTEP512
In Stock Quantity:0
:
Brand
:
Regular price
$2,537.01 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Power-Flo Effluent Pump Description
General purpose pump for residential, light industrial and commercial pump or effluent applications.
Power-Flo Effluent Pump Features
- DISCHARGE: 2" NPT, Female, Vertical
- LIQUID TEMPERATURE: 104°F Continuous
- MOTOR HOUSING/ VOLUTE: Cast Iron, Class 30
- SEAL PLATE: Cast Iron, Class 30
- IMPELLER: Single Vane Enclosed, Polypropylene with Stainless Steel Insert
- SHAFT & HARDWARE: Stainless Steel
- PAINT: Air Dry Enamel
- SQUARE RINGS: Buna-N
- SEAL: Outboard, Single Mechanical, 5/8″, Oil Filled Chamber, Carbon/Ceramic/Buna-N
- UPPER BEARING: Single Row, Ball, Oil Lubricated
- LOWER BEARING: Single Row, Ball, Oil Lubricated
- POWER CORD: 20Ft. SJTOW, 14/3 Cord with Piggy-Back Plug. Fast Disconnect Design
- MOTOR: Class B Insulation, Oil Filled
- SINGLE PHASE: Permanent Split Capacitor (PSC), Includes Overload Protection in Motor
- WARRANTY: 2 Year
Specifications
Specifications
Power-Flo PFSTEP512 Effluent Pump Specifications
- HORSEPOWER: 0.5 HP
- VOLTAGE: 115 V
- PHASE: 1 Ph
- HERTZ: 60 Hz
- RPM: 1750 RPM
- FULL LOAD AMPS: 14.0
- SOLIDS HANDLING: 0.75" Spherical Solids
- DISCHARGE: 2" FNPT / Vertical
- CORD LENGTH: 20' Power Cord
- MAX HEAD: 80.0'
- MAX FLOW RATE: 80 GPM
- IMPELLER TYPE: Single Vane Enclosed Polypropylene with Stainless Steel Insert
- LEVEL CONTROL OPTIONS: Manual (No Float)
Power-Flo Effluent Pump Performance Curve
Power-Flo PFEV522 Model Comparison
PFEV522 Replaces the following units; Barnes model EHV412, EH512L, STEP512SS, PACO model PIP702B, Liberty model FL51A, Little Giant model 14EH-CIM, 10E-CIA-RFS, Myers model ME50S-AA, Goulds model WE0511HH, WE0511H, EP0511F, Hydromatic OSP50A1, SHEF50M1, SPD50MH1 Dayton model 4HU70, 4HU75, 4LE10, 3BB83, Zoeller model N163, N161, M137
