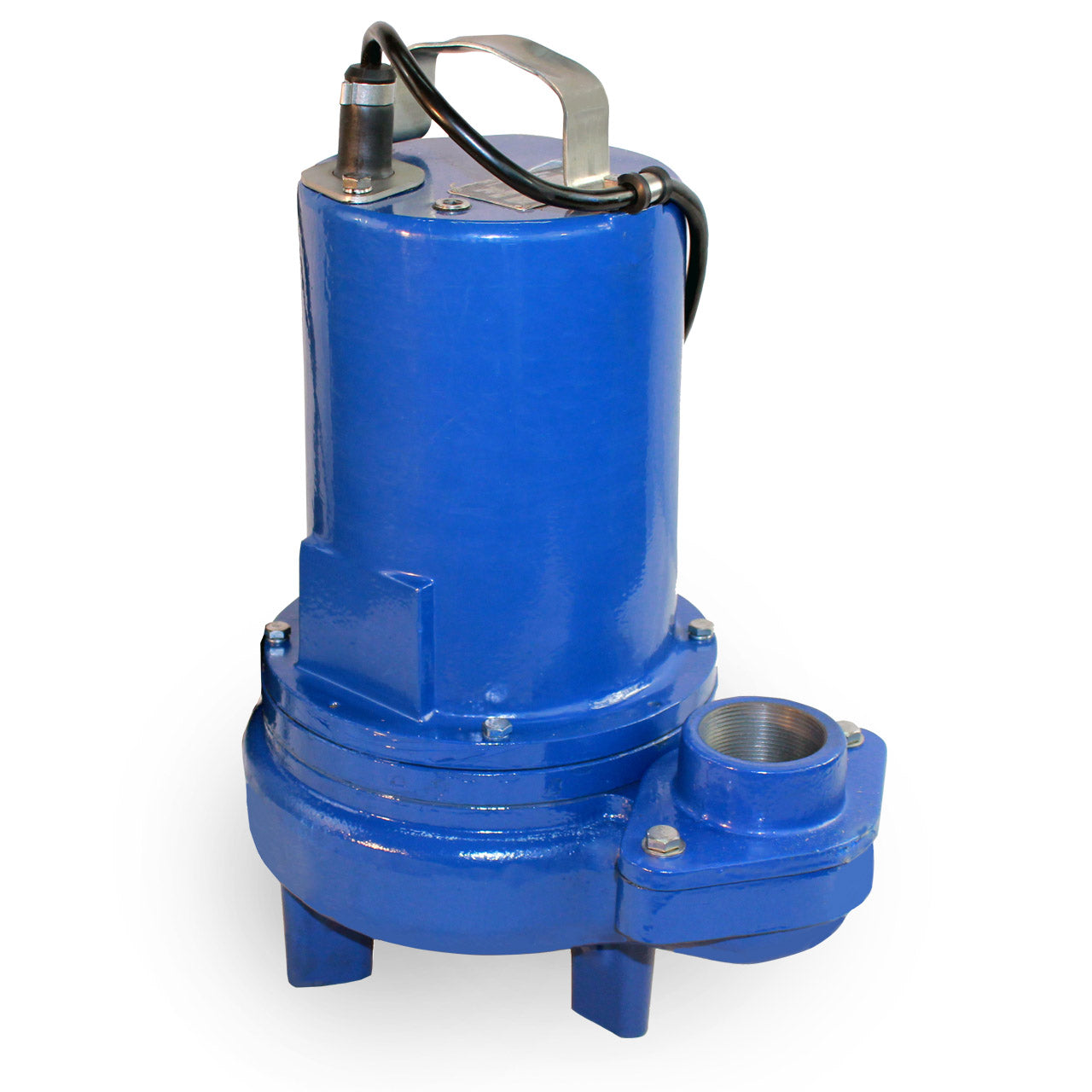

Power-Flo PFSE1044 Sewage Pump 1.0 HP 460V 3PH 15' Cord
Power-Flo PFSE1044 Sewage Pump 1.0 HP 460V 3PH 15' Cord
SKU : PFPFSE1044
In Stock Quantity:0
:
Brand
:
Regular price
$3,186.39 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Power-Flo PFSE Series Sewage Pump Description
Submersible sewage pumps designed for typical raw sewage applications.
Power-Flo PFSE Series Sewage Pump Application
Designed for Handling Typical Septic Tank / Effluent Applications.
Power-Flo PFSE Series Sewage Pump Features
- DISCHARGE: 2” NPT, Female, Vertical, Bolt-On Flange
- LIQUID TEMPERATURE: 104°F Continuous
- MOTOR HOUSING/VOLUTE: Cast Iron, Class 30
- IMPELLER: 2 Vane, Open Type , Cast Iron, Class 30
- SHAFT & HARDWARE : Stainless Steel
- O-RINGS: Buna-N
- SEAL: Inboard, Single Mechanical, .625 inch, Oil Filled Reservoir, Carbon/Ceramic/Buna-N with Secondary Exclusion Seal
- UPPER BEARING: Single Row, Ball, Oil lubricated
- LOWER BEARING: Single Row, Ball, Oil Lubricated
- POWER CORD: 15ft., SJTOW, 14/3 Cord with Plug On 115 volt, SOW, 14/3 Cord on 230 Volt, 1 phase, (plug on 1/2, 3/4 & 1Hp), SOW, 14/3 and 14/4 on Rest. Fast Disconnect Design .
- MOTOR: Class B Insulation, Oil Filled, Squirrel Cage Induction
- SINGLE PHASE: Permanent Split Capacitor (PSC), Includes Overload Protection in Motor
- THREE PHASE: 200-230/460 is Tri-Voltage Motor. Requires Overload Protection to be Included in Control Panel
- WARRANTY: 2 Year
Specifications
Specifications
Power-Flo PFSE1044 Specifications
- VOLTAGE: 3ø, 460V, 60Hz
- HORSEPOWER: 1.0 HP
- AMP DRAW (full load): 3.8
- MOTOR TYPE: Permanent Split Capacitor (PSC)
- RPM: 1750
- MAXIMUM HEAD: 38'
- MAXIMUM CAPACITY: 220 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 2” NPT, Female, Vertical, Bolt-On Flange
- MAXIMUM SOLIDS HANDLING SIZE: 2.0"
- IMPELLER TYPE: Cast Iron, Class 30, 2 Vane, Open Type
- IMPELLER DIAMETER: 6.0"
- CORD LENGTH: 15', Type: SOW
- CORD SIZE: 14/4 Cord with Plug
- BODY CONSTRUCTION: Cast Iron, Class 30
- MAXIMUM LIQUID TEMPERATURE: 104°F Continuous
Power-Flo PFSE Series Sewage Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Power-Flo PFSE Series Sewage Pump Product Resources
Download Power-Flo PFSE Series Sewage Pump Catalog Sheet
Download Power-Flo PFSE Series Sewage Pump Specification Sheet
Download Power-Flo PFSE Series Sewage Pump Installation Manual
