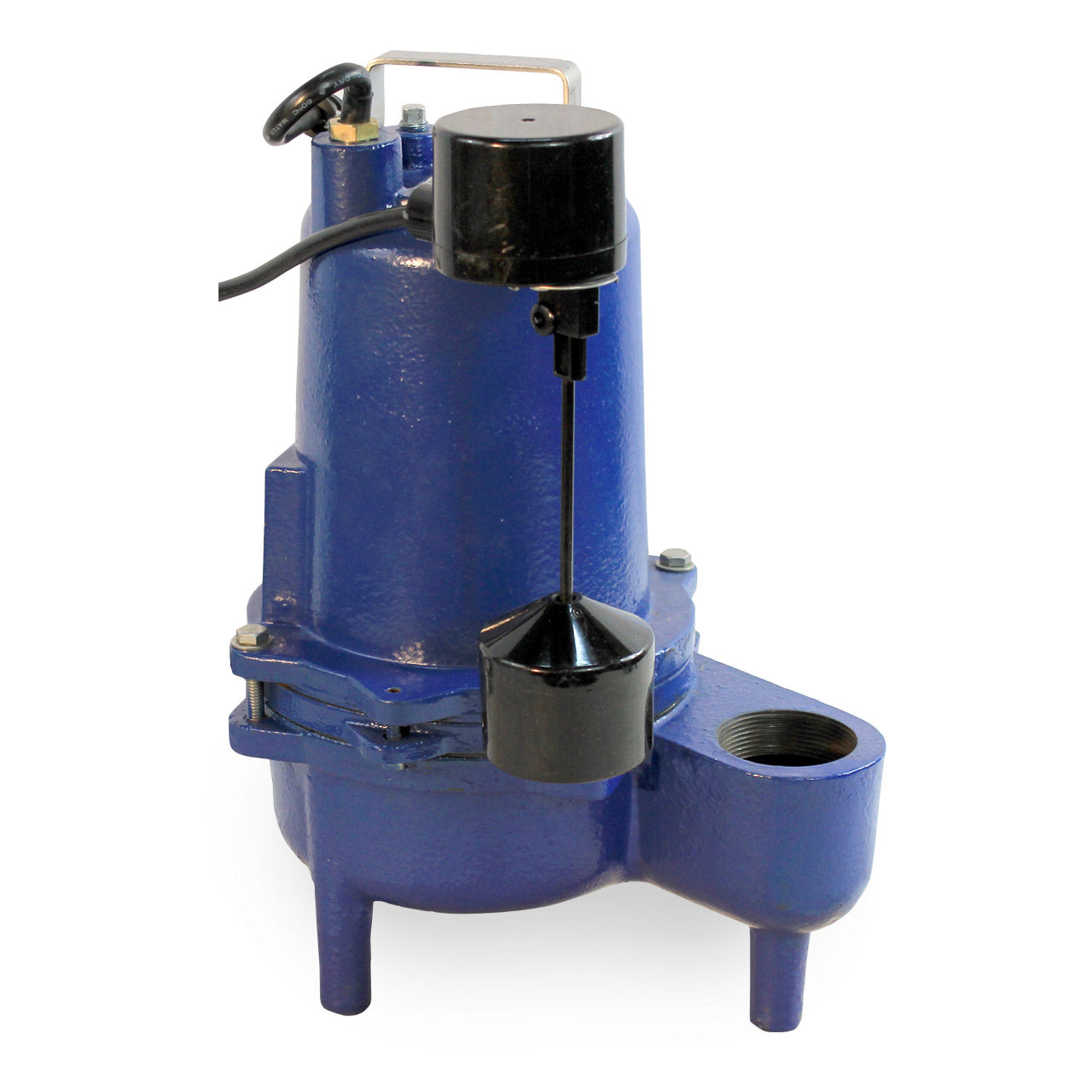

Power-Flo PFS411VF-20 Non-Clog Sewage Pump 0.4 HP 115V 1PH 20' Cord Automatic

Power-Flo PFS411VF-20 Non-Clog Sewage Pump 0.4 HP 115V 1PH 20' Cord Automatic

Usually ships within 3 weeks

SKU : PFPFS411VF-20

In Stock Quantity:0

:
Brand : Power-Flo
$1,649.95 USD
Shipping calculated at checkout.

Description

Power-Flo PFS411VF Sewage Pump Description

Submersible Solids Handling Sewage Pumps are designed for typical raw sewage applications

Power-Flo PFS411VF Sewage Pump Features

  • DISCHARGE: 2” NPT, Female, Vertical
  • LIQUID TEMPERATURE: 77°F (25°C) Continuous 115 Volts
  • MOTOR HOUSING/VOLUTE: Cast Iron, Class 30
  • IMPELLER: 2 Vane Open with Pump Out Vanes on Back Side, Dynamically Balanced, ISO G6.3, Cast Iron, Class 30
  • SHAFT & HARDWARE : Stainless Steel
  • O-RINGS: Buna-N
  • SEAL: Inboard, Single Mechanical, .625 inch, Oil Filled Reservoir, Carbon/Ceramic/Buna-N with Secondary Exclusion Seal
  • UPPER BEARING: Single Row, Ball, Oil lubricated
  • LOWER BEARING: Single Row, Ball, Oil Lubricated
  • POWER CORD: SJTW, 16/3 Cord with Plug On 115 Volt, Pressure Grommet for Sealing and Strain Relief.
  • MOTOR: Class B Insulation, Oil Filled, Squirrel Cage Induction
  • SINGLE PHASE: Permanent Split Capacitor (PSC), Includes Overload Protection in Motor
  • LEVEL CONTROL: Vertical, Mechanical, 13 Amp, with Piggy-Back Plug, Only OFF Point is Adjustable, P/N: PF100829
  • WARRANTY: 2 Year

Specifications

Power-Flo PFS411VF-20 Specifications

  • VOLTAGE: 1ø, 115V, 60Hz
  • HORSEPOWER: 0.4 HP
  • AMP DRAW (full load): 12.0
  • MOTOR TYPE: Permanent Split Capacitor (PSC)
  • RPM: 1750
  • MAXIMUM HEAD: 26'
  • MAXIMUM CAPACITY: 92 GPM
  • SWITCH TYPE: Vertical Mechanical w/ Piggy Back Plug
  • DISCHARGE PIPE SIZE: 2” NPT, Female, Vertical
  • MAXIMUM SOLIDS HANDLING SIZE: 2.0"
  • IMPELLER TYPE: Cast Iron, Class 30, 2 Vane Open with Pump Out Vanes on Back Side
  • IMPELLER DIAMETER: 5.12"
  • CORD LENGTH: 20', Type: SJTW
  • CORD SIZE: 16/3 Cord with Plug
  • BODY CONSTRUCTION: Cast Iron, Class 30
  • MAXIMUM LIQUID TEMPERATURE: 77°F Continuous

Power-Flo PFS411VF Sewage Pump Performance Curve


Power-Flo PFS411VF-20 Model Comparison

PFS411VF-20 Replaces the following units; Barnes model SE411, PACO model PIP530, Liberty model LE41A, Little Giant model 95-CIA-RFS, Myers model SRM4P, Hydromatic model SKV40AW, SP40A1, Dayton model 3BB87, 4HU79, 4LE12, Zoeller model M264

Note: Controls -- M-manual, A-automatic, wide angle (PB), VF-vertical float (PB); PB-piggy backHT-High temperature 185 degrees continuous serviceX=20' Cord, X-30=30' Cord


WARNING Cancer and Reproductive Harm - www.P65Warnings.ca.gov WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Resources

Power-Flo PFS411VF Sewage Pump Product Resources


Download Power-Flo PFS411VF Sewage Pump Catalog Sheet

Download Power-Flo PFS411VF Sewage Pump Specification Sheet

Download Power-Flo PFS411VF Sewage Pump Installation Manual
