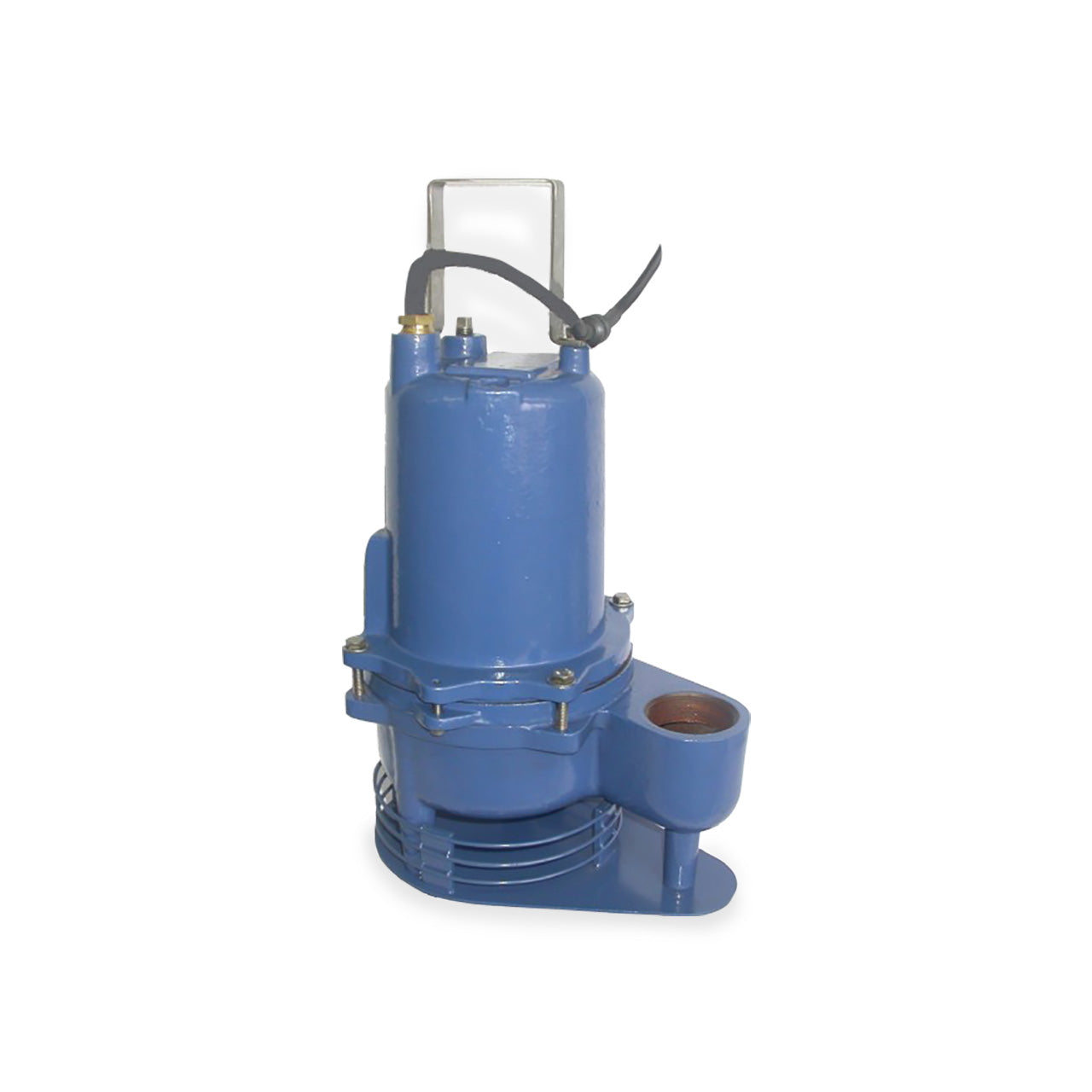

Power-Flo PFS411HT High Temp Sewage Pump 0.4 HP 115V 1PH 15' Cord Manual
Power-Flo PFS411HT High Temp Sewage Pump 0.4 HP 115V 1PH 15' Cord Manual
SKU : PFPFS411HT
In Stock Quantity:0
:
Brand
:
Regular price
$1,666.30 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Power-Flo PFS411HT High Temp Sewage Pump Description
Submersible non-clog sewage pumps are designed for high temperature water and raw sewage application.
Power-Flo PFS411HT High Temp Sewage Pump Features
- DISCHARGE: 2” NPT, Female, Vertical
- LIQUID TEMPERATURE: 200°F (93°C) Continuous, High Temperature
- MOTOR HOUSING/VOLUTE: Cast Iron, Class 30
- IMPELLER: 2 Vane Open with Pump Out Vanes on Back Side, Dynamically Balanced, ISO G6.3, Cast Iron, Class 30
- SHAFT & HARDWARE : Stainless Steel
- O-RINGS: Buna-N
- SEAL: Inboard, Single Mechanical, .625 inch, Oil Filled Reservoir, Carbon/Ceramic/Buna-N with Secondary Exclusion Seal
- UPPER BEARING: Single Row, Ball, Oil lubricated
- LOWER BEARING: Single Row, Ball, Oil Lubricated
- POWER CORD: 15ft., SOOW, 14/3 Cord with Plug On 115 Volt, Pressure Grommet for Sealing and Strain Relief.
- MOTOR: Class H Insulation, Vacuum Pressure Impregnated (VPI), Oil Filled, Squirrel Cage Induction
- SINGLE PHASE: Permanent Split Capacitor (PSC), Includes Overload Protection in Motor
- STRAINER: Sludge, Bar Type. *1/2" Solids Through Strainer
- WARRANTY: 1 Year
Specifications
Specifications
Power-Flo PFS411HT Specifications
- VOLTAGE: 1ø, 115V, 60Hz
- HORSEPOWER: 0.4 HP
- AMP DRAW (full load): 10.0
- MOTOR TYPE: Permanent Split Capacitor (PSC)
- RPM: 1750
- MAXIMUM HEAD: 24'
- MAXIMUM CAPACITY: 91 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 2” NPT, Female, Vertical
- MAXIMUM SOLIDS HANDLING SIZE: 2.0"
- IMPELLER TYPE: Cast Iron, Class 30, 2 Vane Open with Pump Out Vanes on Back Side
- IMPELLER DIAMETER: 5.12"
- CORD LENGTH: 15', Type: SOOW
- CORD SIZE: 14/3 Cord with Plug
- BODY CONSTRUCTION: Cast Iron, Class 30
- MAXIMUM LIQUID TEMPERATURE: 200°F Continuous, High Temperature
Power-Flo PFS411HT High Temp Sewage Pump Performance Curve
Power-Flo PFS411HT Model Comparison
PFS411HT Replaces the following units; Barnes model SE411HT
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Power-Flo PFS411HT High Temp Sewage Pump Product Resources
Download Power-Flo PFS411HT High Temp Sewage Pump Catalog Sheet
Download Power-Flo PFS411HT High Temp Sewage Pump Specification Sheet
Download Power-Flo PFS411HT High Temp Sewage Pump Installation Manual
