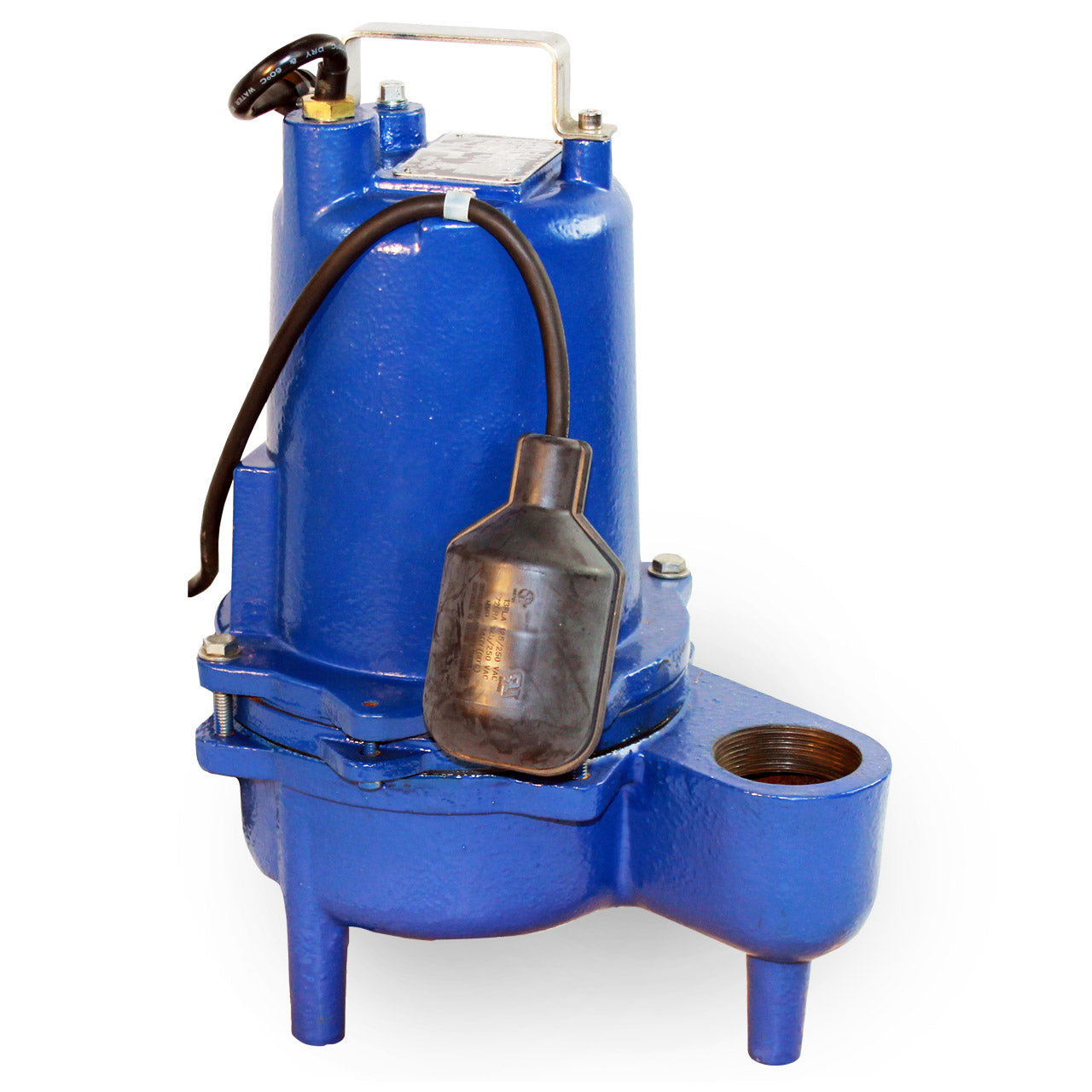

Power-Flo PFS411A-20 Non-Clog Sewage Pump 0.4 HP 115V 1PH 20' Cord Automatic
Power-Flo PFS411A-20 Non-Clog Sewage Pump 0.4 HP 115V 1PH 20' Cord Automatic
SKU : PFPFS411A-20
In Stock Quantity:0
:
Brand
:
Regular price
$1,445.82 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Power-Flo Non-Clog Sewage Pump Description
Submersible Solids Handling Sewage Pumps are designed for typical raw sewage applications
Power-Flo Non-Clog Sewage Pump Features
- DISCHARGE: 2” NPT, Female, Vertical
- LIQUID TEMPERATURE: 77°F (25°C) Continuous 115 Volts
- MOTOR HOUSING/VOLUTE: Cast Iron, Class 30
- IMPELLER: 2 Vane Open with Pump Out Vanes on Back Side, Dynamically Balanced, ISO G6.3, Cast Iron, Class 30
- SHAFT & HARDWARE : Stainless Steel
- O-RINGS: Buna-N
- SEAL: Inboard, Single Mechanical, .625 inch, Oil Filled Reservoir, Carbon/Ceramic/Buna-N with Secondary Exclusion Seal
- UPPER BEARING: Single Row, Ball, Oil lubricated
- LOWER BEARING: Single Row, Ball, Oil Lubricated
- POWER CORD: SJTW, 16/3 Cord with Plug On 115 Volt, Pressure Grommet for Sealing and Strain Relief.
- MOTOR: Class B Insulation, Oil Filled, Squirrel Cage Induction
- SINGLE PHASE: Permanent Split Capacitor (PSC), Includes Overload Protection in Motor
- LEVEL CONTROL: Wide Angle, Mechanical, Normally Open, with Piggy-Back Plug, 13 Amp, 20ft. STD., P/N: PF512040
- WARRANTY: 2 Year
Specifications
Specifications
Power-Flo PFS411A-20 Non-Clog Sewage Pump Specifications
- VOLTAGE: 1ø, 115V, 60Hz
- HORSEPOWER: 0.4 HP
- AMP DRAW (full load): 12.8
- MOTOR TYPE: Permanent Split Capacitor (PSC)
- RPM: 1750
- MAXIMUM HEAD: 26'
- MAXIMUM CAPACITY: 92 GPM
- SWITCH TYPE: Wide Angle, Mechanical, Normally Open w/ Piggy Back Plug
- DISCHARGE PIPE SIZE: 2” NPT, Female, Vertical
- MAXIMUM SOLIDS HANDLING SIZE: 2.0"
- IMPELLER TYPE: Cast Iron, Class 30, 2 Vane Open with Pump Out Vanes on Back Side
- IMPELLER DIAMETER: 5.12"
- CORD LENGTH: 20', Type: SJTW
- CORD SIZE: 16/3 Cord with Plug
- BODY CONSTRUCTION: Cast Iron, Class 30
- MAXIMUM LIQUID TEMPERATURE: 77°F Continuous
Power-Flo Non-Clog Sewage Pump Performance Curve
Power-Flo PFS411A-20 Model Comparison
PFS411A-20 Replaces the following units; Barnes model SE411, PACO model PIP530, Liberty model LE41A, Little Giant model 95-CIA-RFS, Myers model SRM4P, Hydromatic model SKV40AW, SP40A1, Dayton model 3BB87, 4HU79, 4LE12, Zoeller model M264
Note: Controls -- M-manual, A-automatic, wide angle (PB), VF-vertical float (PB); PB-piggy backHT-High temperature 185 degrees continuous serviceX=20' Cord, X-30=30' Cord
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Power-Flo Non-Clog Sewage Pump Product Resources
Download Power-Flo Non-Clog Sewage Pump Catalog Sheet
Download Power-Flo Non-Clog Sewage Pump Specification Sheet
Download Power-Flo Non-Clog Sewage Pump Installation Manual
