Discontinued - Power-Flo

Power-Flo PFPO2LA-6C Description

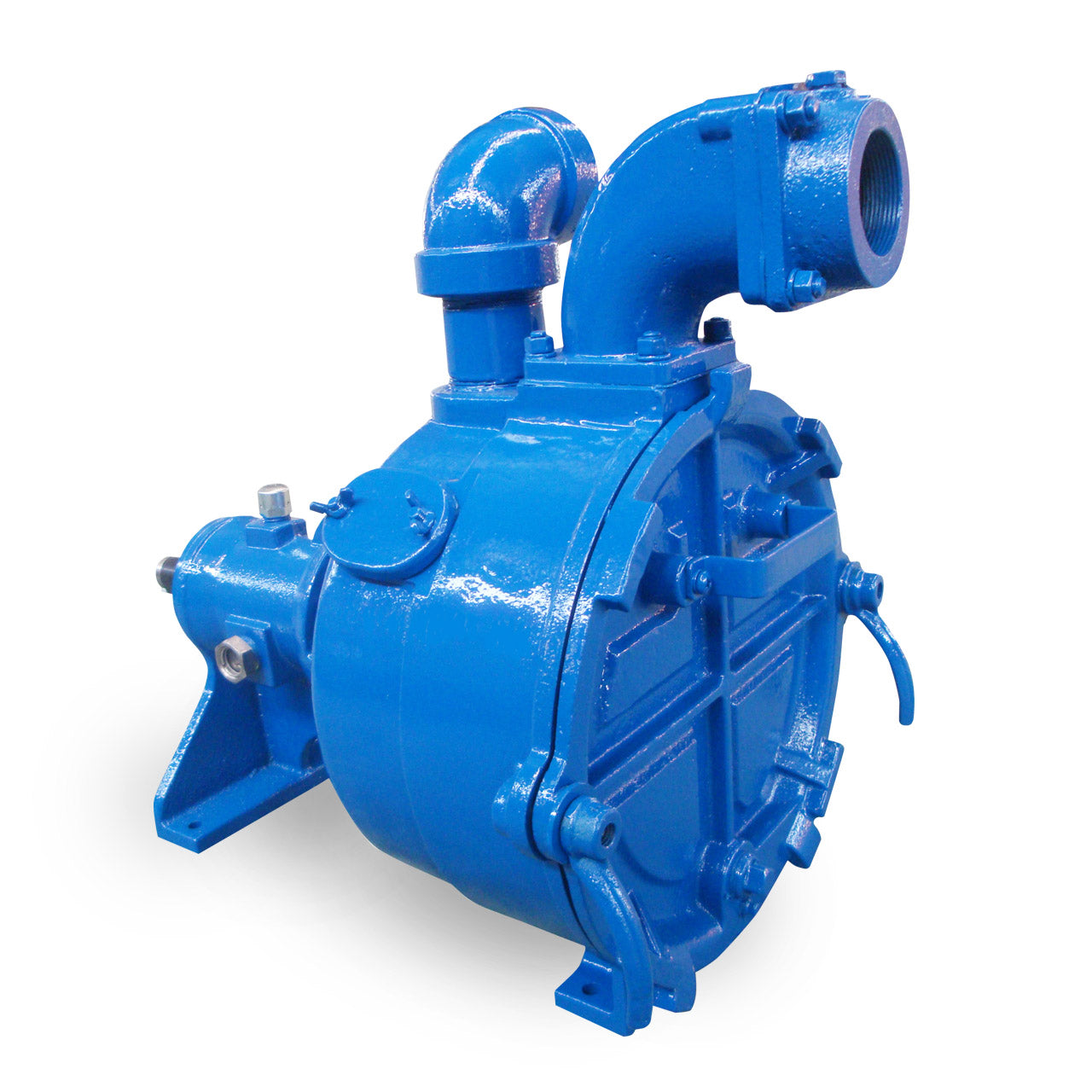

PFPO2LA-6C Is A 2" Self-Priming Trash Pump Type B Frame-Mount Centrifugal Pump.

Power-Flo PFPO2LA-6C Typical Application

• Designed For Marine, Municipal and Industry
• Designed For The User Who Has A Separate Power Source Suitable For Driving Through Couplings Or With Belts.

Power-Flo PFPO2LA-6C Features

• ASTM A-48 Class 30 Gray Iron Casing with Air Vent and Drain Plugs
• SAE No 30 Non-Detergent Oil with Sight Glass
• High Carbon Steel Shaft
• Teflon "U" Cup Wear Plate
• Cast Iron Class 30 Pedestal
• Steel Hardware
• Buna-N Square Rings

Power-Flo PFPO2LA-6C Technical Details

• SEAL: Mechanical Type, Self Lubricating, Carbon/Ceramic/Buna-N
• SEAL PLATE: Alloy Steel, Replaceable
• BEARING-PUMP END: Single Row Ball, Pre-Greased at Factory, Radial & Thrust Load
• BEARING-DRIVE END: Double Row Ball, Pre-Greased at Factory Radial & Thrust Load
• CHECK VALVE: Elbow and Weight Cast Iron Class 30 Neoprene Valve Flap
• MAX HEAD: 112.0' @ 2800 RPM
• MAXFLOW RATE: 212.0 GPM @ 2800 RPM
• IMPELLER TYPE: 2-Vane Open Type, Cast Iron Class 30
• VOLUTE/WEAR PLATE: Cast Iron Class 30 Replaceable, with External Clearance Adjustment
• SPHERICAL SOLIDS: 1.25"
• SUCTION: 2" FNPT
• DISCHARGE: 2"FNPT

Power-Flo PFPO2LA-6A Pump Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Power-Flo PFPO2LA-6C Product Resources

Download Power-Flo PFPO2LA-6C Catalog Sheet

Download Power-Flo PFPO2LA-6C Specifications

Download Power-Flo PFPO2LA-6C Installation Manual
