Discontinued - Grinder

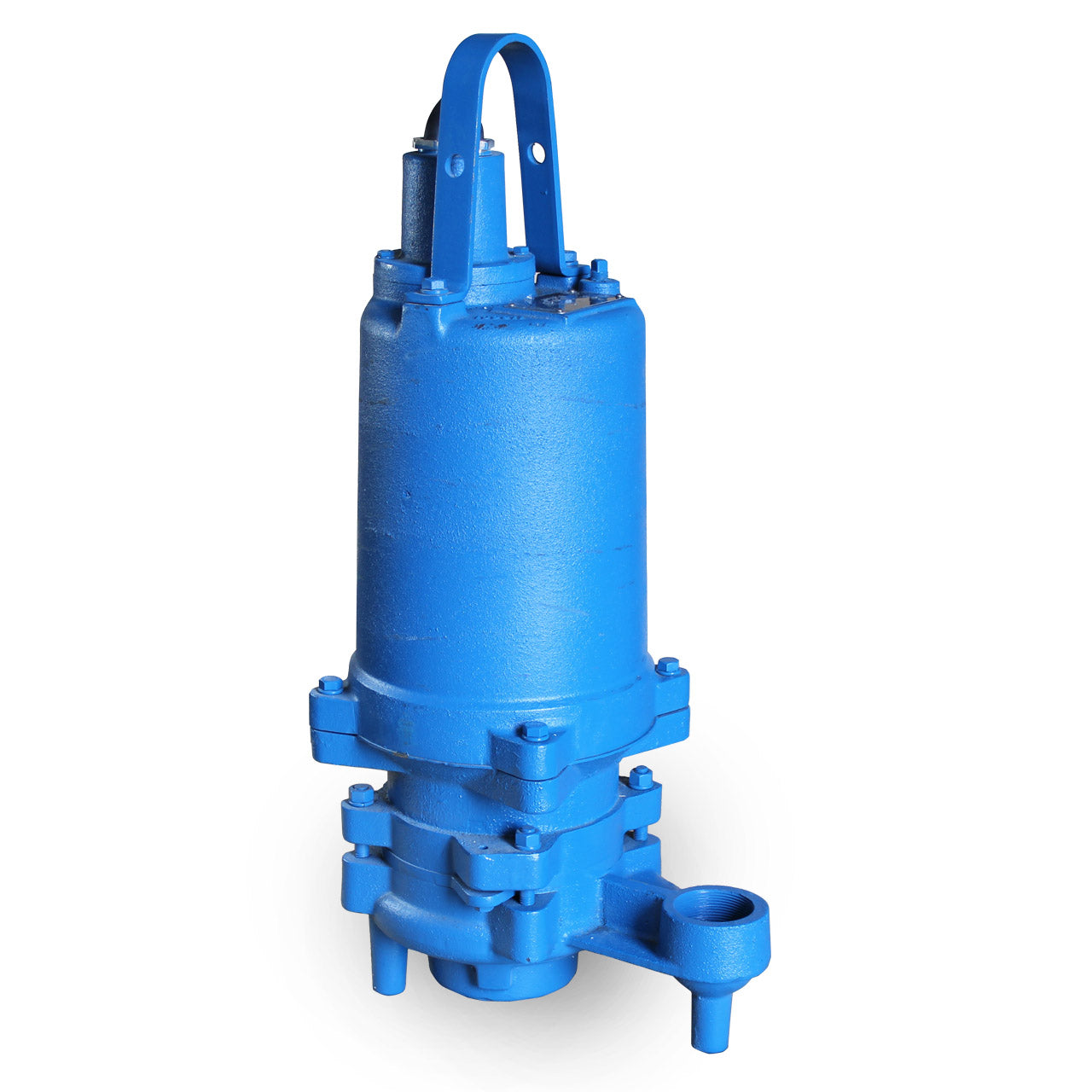

Power-Flo PFG5062 Description

The Power-Flo PFG5062 Is A Submersible Grinder Sewage Pump.

Power-Flo PFG5062 Typical Application

Submersible Grinder Pump to Shear Large Solids in Wastewater Down to a Fine Slurry That Can Be Directed to a Central Sewer System.

Power-Flo PFG5062 Features

• Class 30 Cast Iron Housing and Volute
• Oil-Filled Squirrel Cage Induction Motor for Lubrication and Cooling
• Overload Protection Not Included
• Uses Single-Row Oil Lubricated Ball-Bearing Construction
• Stainless Steel Shaft and Hardware

Power-Flo PFG5062 Technical Details

• HORSEPOWER: 5.0 HP
• VOLTAGE: 208 V
• PHASE: 1 Ph
• HERTZ: 60 Hz
• RPM: 3450 RPM
• FULL LOAD AMPS: 25.0
• SEAL: Tandem Double Mechanical Oil Filled Reservoir
• Upper: Carbon/Ceramic/Buna-N
• Lower: Silicon Carbide/Vitron Stainless Hardware
• MOISTURE SENSOR: Normally Open, Requires Relay in Control Panel
• Temperature SENSOR: Normally Closed, Requires Relay in Control Panel
• DISCHARGE: 2.0"" NPT Vertical, Bolt-On Flange
• CORD LENGTH: 30' Power Cord
• MAX HEAD: Up To 128'
• MAX FLOW RATE: Up To 104 GPM
• IMPELLER TYPE: 5.75" 12-Vane, Vortex, Cast Iron, Class 30
• SHREDDING RING: Stainless Steel
• CUTTER: Stainless Steel
• SHAFT: Stainless Steel
• LEVEL CONTROL OPTIONS: No Float Included

Power-Flo PFG5062 Pump Performance Curve

Power-Flo PFG5062 Model Comparison

PFG5062 Replaces the following units; Barnes model SGV5062L, Goulds model 2GA, Hydromaitc model HPGH, HPGHH

Note: Controls -- M-manual, A-automatic, wide angle (PB), VF-vertical float (PB); PB-piggy backHT-High temperature 185 degrees continuous serviceX=20' Cord, X-30=30' Cord

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Power-Flo PFG5062 Product Resources

Download Power-Flo PFG 30_50_75 Catalog Sheet

Download Power-Flo PFG 30_50_75 Specification Sheet

Download Power-Flo PFG 30_50_75 Installation Manual
