Power-Flo PFG5042 Description

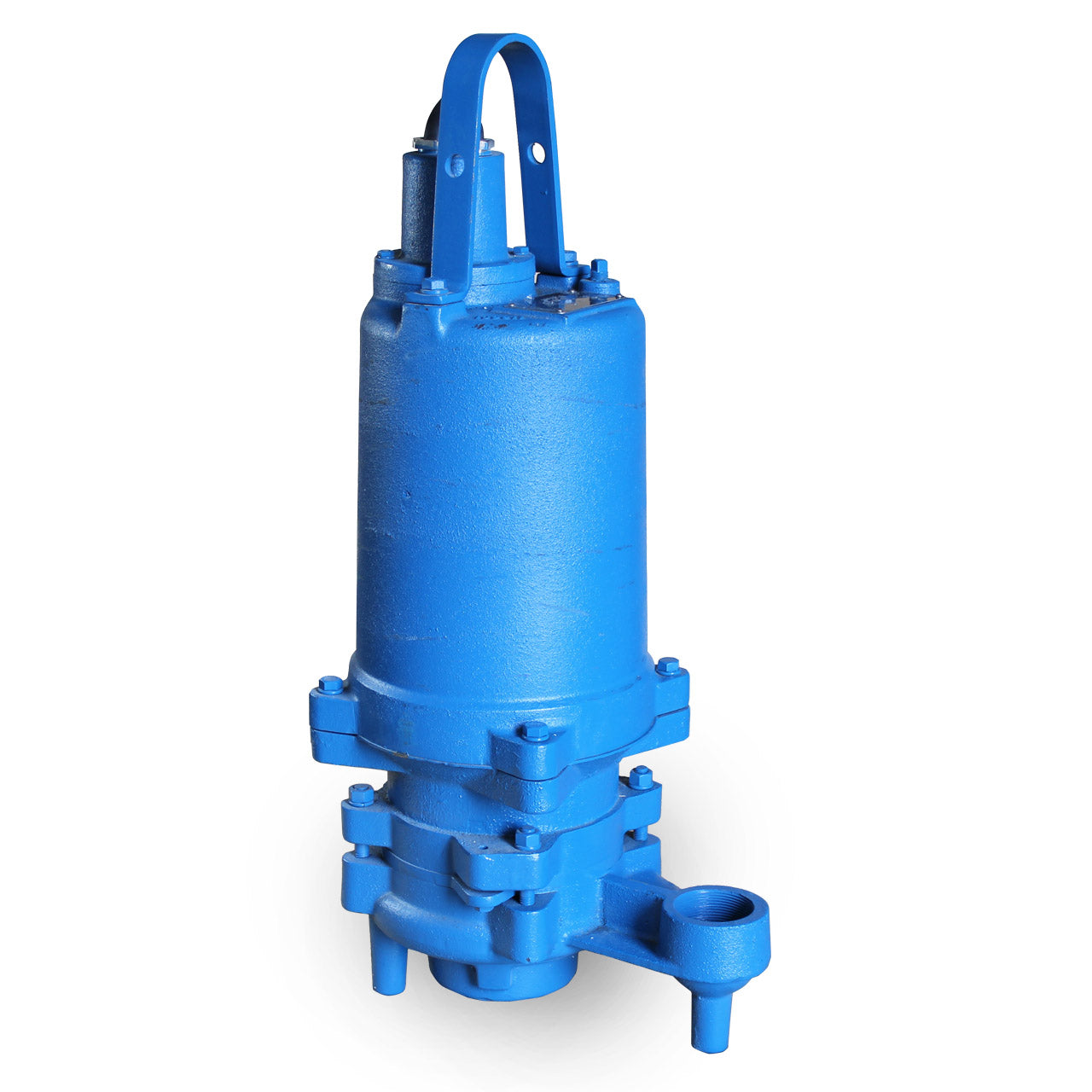

The Power-Flo PFG5042 Is A Submersible Grinder Sewage Pump.

Power-Flo PFG5042 Typical Application

Submersible Grinder Pump To Shear Large Solids In Waste Water Down To A Fine Slurry That Can Be Directed To A Central Sewer System.

Power-Flo PFG5032 Features

• Class 30 Cast Iron Housing and Volute
• Oil-Filled Squirrel Cage Induction Motor for Lubrication and Cooling
• Overload Protection Not Included
• Uses Single-Row Oil Lubricated Ball-Bearing Construction
• Stainless Steel Shaft and Hardware

Power-Flo PFG5042 Technical Details

• HORSEPOWER: 5.0 HP
• VOLTAGE: 460 V
• PHASE: 3 Ph
• HERTZ: 60 Hz
• RPM: 3450 RPM
• FULL LOAD AMPS: 11.0
• SEAL: Tandem Double Mechanical Oil Filled Reservoir
• Upper: Carbon/Ceramic/Buna-N
• Lower: Silicon Carbide/Vitron Stainless Hardware
• MOISTURE SENSOR: Normally Open, Requires Relay in Control Panel
• Temperature SENSOR: Normally Closed, Requires Relay in Control Panel
• DISCHARGE: 2.0"" NPT Vertical, Bolt-On Flange
• CORD LENGTH: 30' Power Cord
• MAX HEAD: Up To 128'
• MAX FLOW RATE: Up To 104 GPM
• IMPELLER TYPE: 5.75" 12-Vane, Vortex, Cast Iron, Class 30
• SHREDDING RING: Stainless Steel
• CUTTER: Stainless Steel
• SHAFT: Stainless Steel
• LEVEL CONTROL OPTIONS: No Float Included

Power-Flo PFG5042 Pump Performance Curve

Power-Flo PFG5042 Model Comparison

PFG5042 Replaces the following units; Barnes model SGV5042L, Goulds model 2GA, Hydromaitc model HPGH, HPGHH

Note: Controls -- M-manual, A-automatic, wide angle (PB), VF-vertical float (PB); PB-piggy backHT-High temperature 185 degrees continuous serviceX=20' Cord, X-30=30' Cord

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Power-Flo PFG5042 Product Resources

Download Power-Flo PFG 30_50_75 Catalog Sheet

Download Power-Flo PFG 30_50_75 Specification Sheet

Download Power-Flo PFG 30_50_75 Installation Manual
