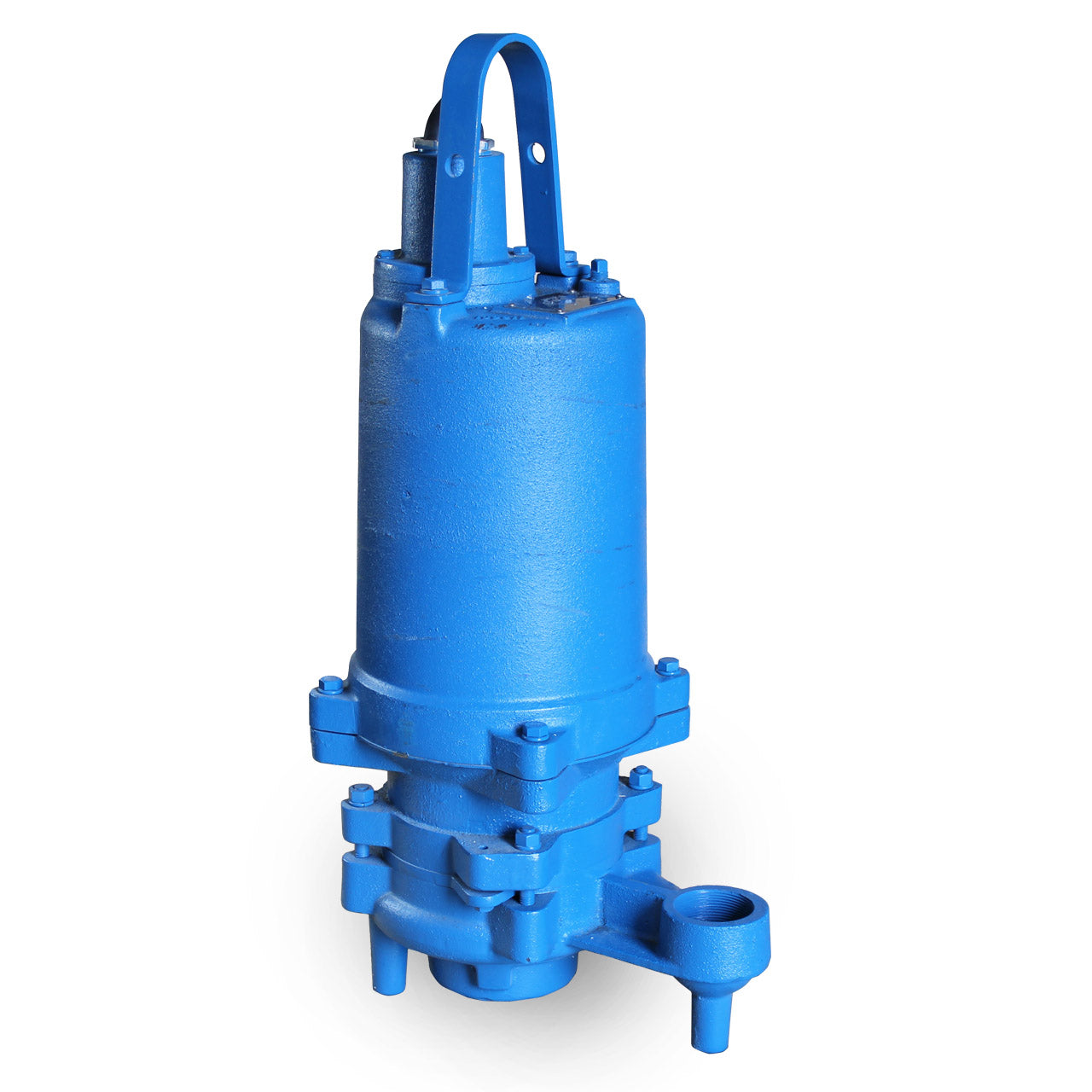

Power-Flo PFG3022 Description

Submersible Grinder Pumps are designed to reduce domestic, commercial, institutional and light industrial sewage to a finely ground slurry.

Power-Flo PFG3022 Features

• DISCHARGE: 2" NPT, Female, Vertical
• LIQUID TEMPERATURE: 160°F Intermittent
• MOTOR/HOUSING VOLUTE: Cast Iron, Class 30
• SEAL PLATE: Cast Iron, Class 30
• IMPELLER: 12 Vane, Vortex, With Pump Out Vanes on Back Side, Dynamically Balanced, ISO G6.3 Cast Iron
• SHREDDING RING & CUTTER: Stainless Steel
• SHAFT & HARDWARE: Stainless Steel
• PAINT: Air Dry Enamel
• SQUARE RINGS: Buna-N
• SEAL: Tandem Double Mechanical, Oil Filled Reservoir
• Upper: 1-1/4″ Carbon/Ceramic/Buna-N
• Lower: 1-1/8″ Silicon Carbide/Silicon Carbide/Viton
• UPPER BEARING: Single Row, Ball, Oil Lubricated
• LOWER BEARING: Single Row, Ball, Oil Lubricated
• POWER CORD: 25Ft., SOW, 10/4 Cord, Pressure Grommet for Sealing and Strain Relief
• CONTROL CORD: 30Ft., SOW, 18/5 Cord, Pressure Grommet for Sealing and Strain Relief
• MOTOR: Class F Insulation, Oil Filled, Squirrel Cage Induction
• SINGLE PHASE: Capacitor Start/ Capacitor Run, Requires Starter or Control Panel which Includes the Capacitors. Includes Overload Protection in Motor
• SEAL LEAK SENSOR: Two Probe Design, Normally Open (N/O). Requires Relay in Control Panel (Included in PF Panels)
• TEMPERATURE SENSOR: Normally Closed (NC). Requires Relay in Control Panel (Included in PF Panels)
• WARRANTY: 1 Year

Power-Flo PFG3022 Specifications

• HORSEPOWER: 3.0 HP
• VOLTAGE: 230 V
• PHASE: 1 Ph
• HERTZ: 60 Hz
• RPM: 3450 RPM
• FULL LOAD AMPS: 26.0
• SEAL: Tandem Double Mechanical Oil Filled Reservoir
• Upper: Carbon/Ceramic/Buna-N
• Lower: Silicon Carbide/Vitron Stainless Hardware
• MOISTURE SENSOR: Normally Open, Requires Relay in Control Panel
• Temperature SENSOR: Normally Closed, Requires Relay in Control Panel
• DISCHARGE: 2.0" NPT Vertical, Bolt-On Flange
• CORD LENGTH: 25' Power Cord
• MAX HEAD: Up To 84'
• MAX FLOW RATE: Up To 104 GPM
• IMPELLER TYPE: 4.56" 12-Vane, Vortex, Cast Iron, Class 30
• SHREDDING RING: Stainless Steel
• CUTTER:Stainless Steel
• SHAFT: Stainless Steel
• LEVEL CONTROL OPTIONS: No Float Included

Power-Flo PFG3022 Pump Performance Curve

Power-Flo PFG3022 Model Comparison

PFG3022 Replaces the following units; Barnes model SGV3022L, Goulds model 2GA, Hydromaitc model HPGH, HPGHH

Note: Controls -- M-manual, A-automatic, wide angle (PB), VF-vertical float (PB); PB-piggy backHT-High temperature 185 degrees continuous serviceX=20' Cord, X-30=30' Cord
