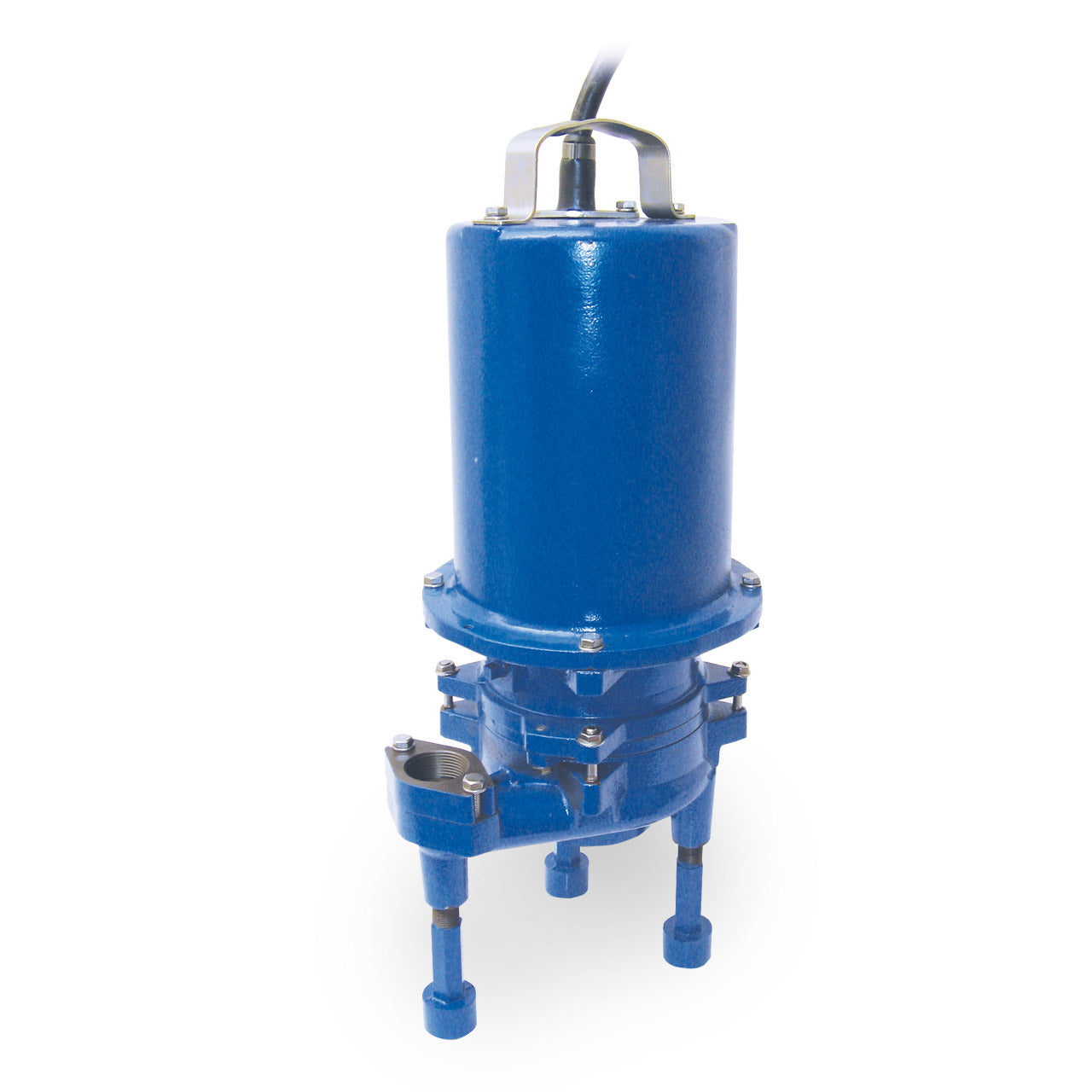

Power-Flo PFG2062HH Description

The Power-Flo PFG2062HH Is A Submersible Grinder Sewage Pump.

Power-Flo PFG2062HH Typical Application

Submersible Grinder Pump To Shear Large Solids In Waste Water Down To A Fine Slurry That Can Be Directed To A Central Sewer System.

Power-Flo PFG2062HH Features

• Class 30 Cast Iron Housing and Volute
• Oil-Filled Motor for Lubrication and Cooling
• Overload Protection Not Included
• Uses Single-Row Ball-Bearing Construction
• Stainless Steel Shaft and Hardware

Power-Flo PFG2062HH Technical Details

• HORSEPOWER: 2.0 HP
• VOLTAGE: 200 V
• PHASE: 3 Ph
• HERTZ: 60 Hz
• RPM: 3450 RPM
• FULL LOAD AMPS: 11.0
• SEAL: Tandem Double Mechanical Carbon/Ceramic/Buna-N
• DISCHARGE: 1.25" NPT Vertical, Bolt-On Flange
• CORD LENGTH: 20' Power Cord
• MAX HEAD: Up To 125'
• MAX FLOW RATE: Up To 30 GPM
• IMPELLER TYPE: 5.63" 12-Vane, Vortex, Bronze
• SHREDDING RING: Stainless Steel
• CUTTER: Stainless Steel
• SHAFT: Stainless Steel
• LEVEL CONTROL OPTIONS: No Float Included

Power-Flo PFG2062HH Pump Performance Curve

Power-Flo PFG2062HH Model Comparison

PFG2062HH Replaces the following units; Barnes model SGVF2062L, Goulds 1GD, Hydromaitc HPGR,

Note: Controls -- M-manual, A-automatic, wide angle (PB), VF-vertical float (PB); PB-piggy backHT-High temperature 185 degrees continuous serviceX=20' Cord, X-30=30' Cord

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Power-Flo PFG2062HH Product Resources

Download Power-Flo PFG2002HH Catalog Sheet

Download Power-Flo PFG2002HH Specification Sheet

Download Power-Flo PFG2002HH Installation Manual
