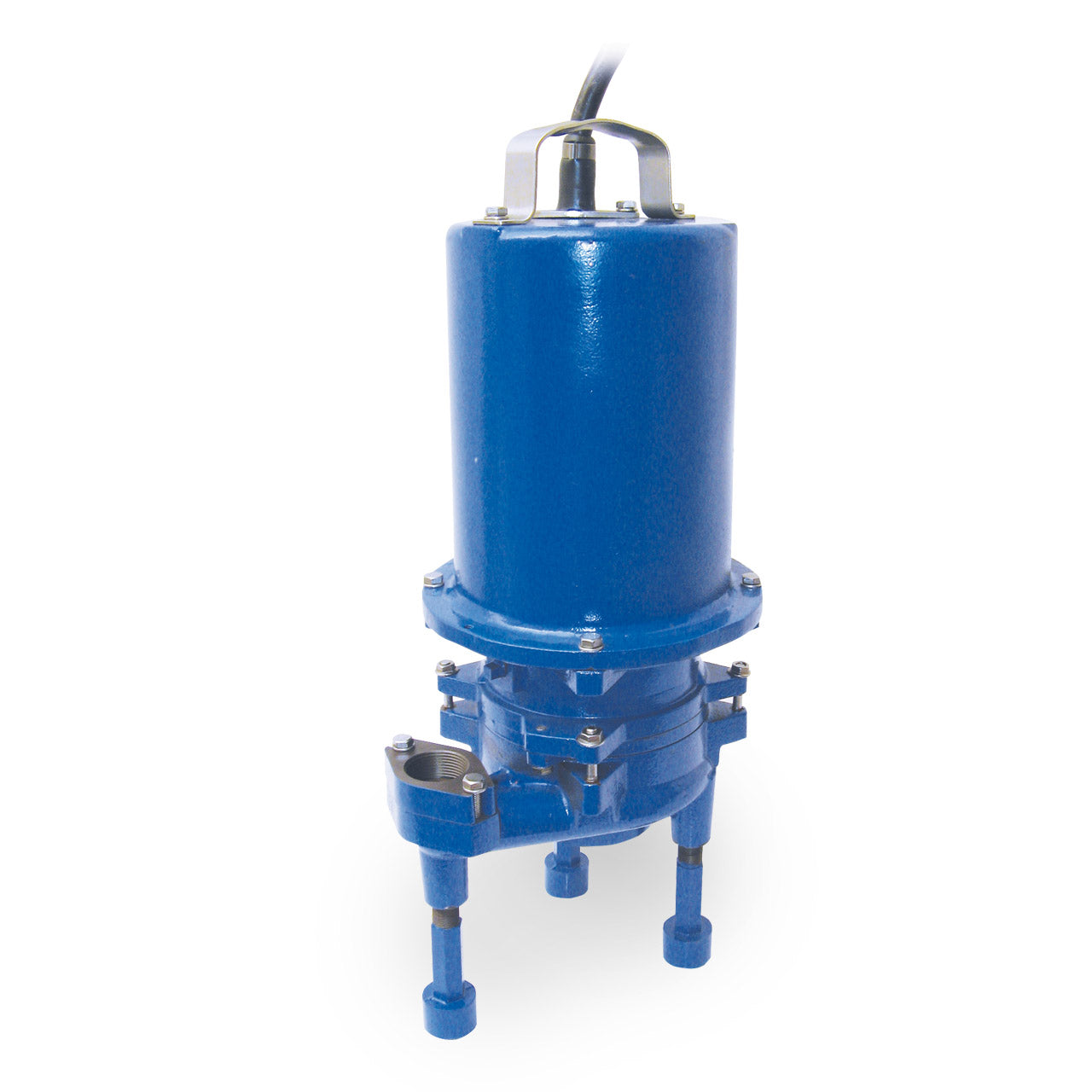

Power-Flo PFG2042HV Description

The Power-Flo PFG2042HV Is A Submersible Grinder Sewage Pump.

Power-Flo PFG2042HV Typical Application

Submersible Grinder Pump To Shear Large Solids In Waste Water Down To A Fine Slurry That Can Be Directed To A Central Sewer System.

Power-Flo PFG2042HV Features

• Class 30 Cast Iron Housing and Volute
• Oil-Filled Motor for Lubrication and Cooling
• Overload Protection Not Included
• Uses Single-Row Ball-Bearing Construction
• Stainless Steel Shaft and Hardware
• 20' Cord

Power-Flo PFG2042HV Technical Details

• HORSEPOWER: 2.0 HP
• VOLTAGE: 460 V
• PHASE: 3 Ph
• HERTZ: 60 Hz
• RPM: 3450 RPM
• FULL LOAD AMPS: 4.0
• SEAL: Tandem Double Mechanical Carbon/Ceramic/Buna-N
• DISCHARGE: 1.25" NPT Vertical, Bolt-On Flange
• CORD LENGTH: 20' Power Cord
• MAX HEAD: Up To 108'
• MAX FLOW RATE: Up To 58 GPM
• IMPELLER TYPE: 5.63" 12-Vane, Vortex, Bronze
• SHREDDING RING: Stainless Steel
• CUTTER: Stainless Steel
• SHAFT: Stainless Steel
• LEVEL CONTROL OPTIONS: No Float Included

Power-Flo PFG2042HV Pump Performance Curve

Power-Flo PFG2042HV Model Comparison

PFG2042HV Replaces the following units; Barnes model SGVH2042L, Hydromaitc HPGR, Zoeller model 842

Note: Controls -- M-manual, A-automatic, wide angle (PB), VF-vertical float (PB); PB-piggy backHT-High temperature 185 degrees continuous serviceX=20' Cord, X-30=30' Cord

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
