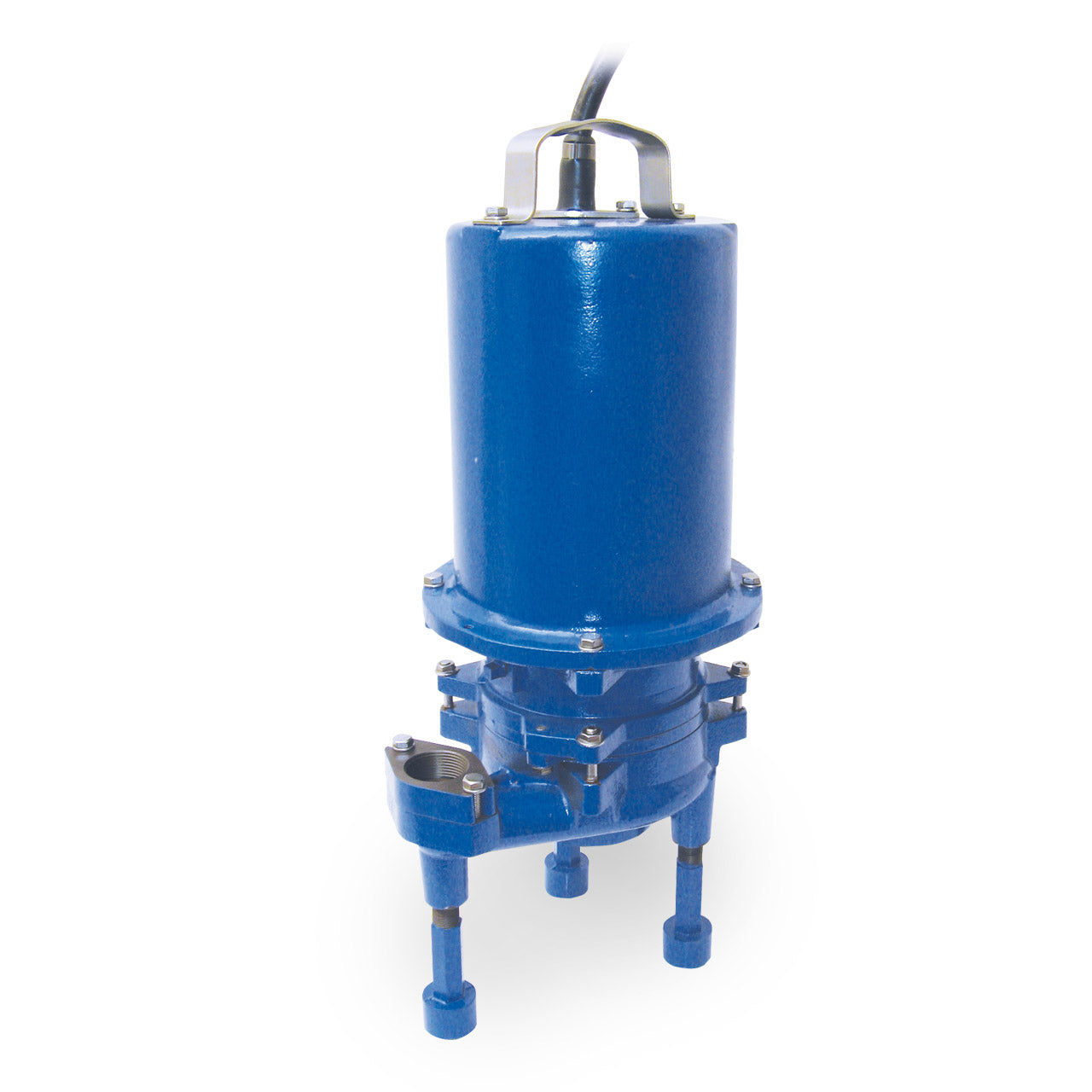

Power-Flo PFG2032HV Grinder Pump 2 HP 230V 3PH 20' Cord Manual
Power-Flo PFG2032HV Grinder Pump 2 HP 230V 3PH 20' Cord Manual
SKU : PFPFG2032HV
In Stock Quantity:0
:
Brand
:
Regular price
$3,982.08 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Power-Flo PFG2032HV Description
Submersible Grinder Pumps are designed to reduce domestic, commercial, institutional and light industrial sewage to a finely ground slurry.
Power-Flo PFG2032HV Features
- DISCHARGE: 1-1/4" NPT, Female, Vertical, Bolt-On Flange
- LIQUID TEMPERATURE: 160°F Intermittent
- MOTOR/HOUSING VOLUTE: Cast Iron, Class 30
- SEAL PLATE: Cast Iron, Class 30
- IMPELLER: 12 Vane, Vortex, With Pump Out Vanes on Back Side, Dynamically Balanced, ISO G6.3 Bronze
- SHREDDING RING & CUTTER: Stainless Steel
- SHAFT & HARDWARE: Stainless Steel
- PAINT: Industrial Grade Powder Coating
- SQUARE RINGS: Buna-N
- SEAL: Tandem Double Mechanical, 7/8″ Inner, 3/4″ Outer, Oil Filled Reservoir, Carbon/Ceramic/Buna-N
- UPPER BEARING: Single Row, Ball, Oil Lubricated
- INTERMEDIATE BEARING: Single Row, Ball, Oil Lubricated
- LOWER BEARING: Sleeve, Oil Lubricated
- POWER CORD: 20Ft, SOW, 12/4 Cord, Custom Molded Fast Disconnect Design for Sealing and Strain Relief
- MOTOR: Class B Insulation, Oil Filled, Squirrel Cage Induction
- SINGLE PHASE: Capacitor Start/ Capacitor Run, Requires Starter or Control Panel which Includes the Capacitors. Includes Overload Protection in Motor
- THREE PHASE: Dual Voltage 230/460
- WARRANTY: 1 Year
Specifications
Specifications
Power-Flo PFG2032HV Specifications
- HORSEPOWER: 2.0 HP
- VOLTAGE: 230 V
- PHASE: 3 Ph
- HERTZ: 60 Hz
- RPM: 3450 RPM
- FULL LOAD AMPS: 9.0
- SEAL: Tandem Double Mechanical Carbon/Ceramic/Buna-N
- DISCHARGE: 1.25" NPT Vertical, Bolt-On Flange
- CORD LENGTH: 20' Power Cord
- MAX HEAD: Up To 108'
- MAX FLOW RATE: Up To 58 GPM
- IMPELLER TYPE: 5.63" 12-Vane, Vortex, Bronze
- SHREDDING RING: Stainless Steel
- CUTTER: Stainless Steel
- SHAFT: Stainless Steel
- LEVEL CONTROL OPTIONS: No Float Included
Power-Flo PFG2032HV Pump Performance Curve
Power-Flo PFG2032HV Model Comparison
PFG2032HV Replaces the following units; Barnes model SGVH2032L, Hydromaitc model HPGR, Zoeller model 842
Note: Controls -- M-manual, A-automatic, wide angle (PB), VF-vertical float (PB); PB-piggy backHT-High temperature 185 degrees continuous serviceX=20' Cord, X-30=30' Cord
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Power-Flo PFG2032HV Product Resources
Download Power-Flo PFG2032HV Catalog Sheet
