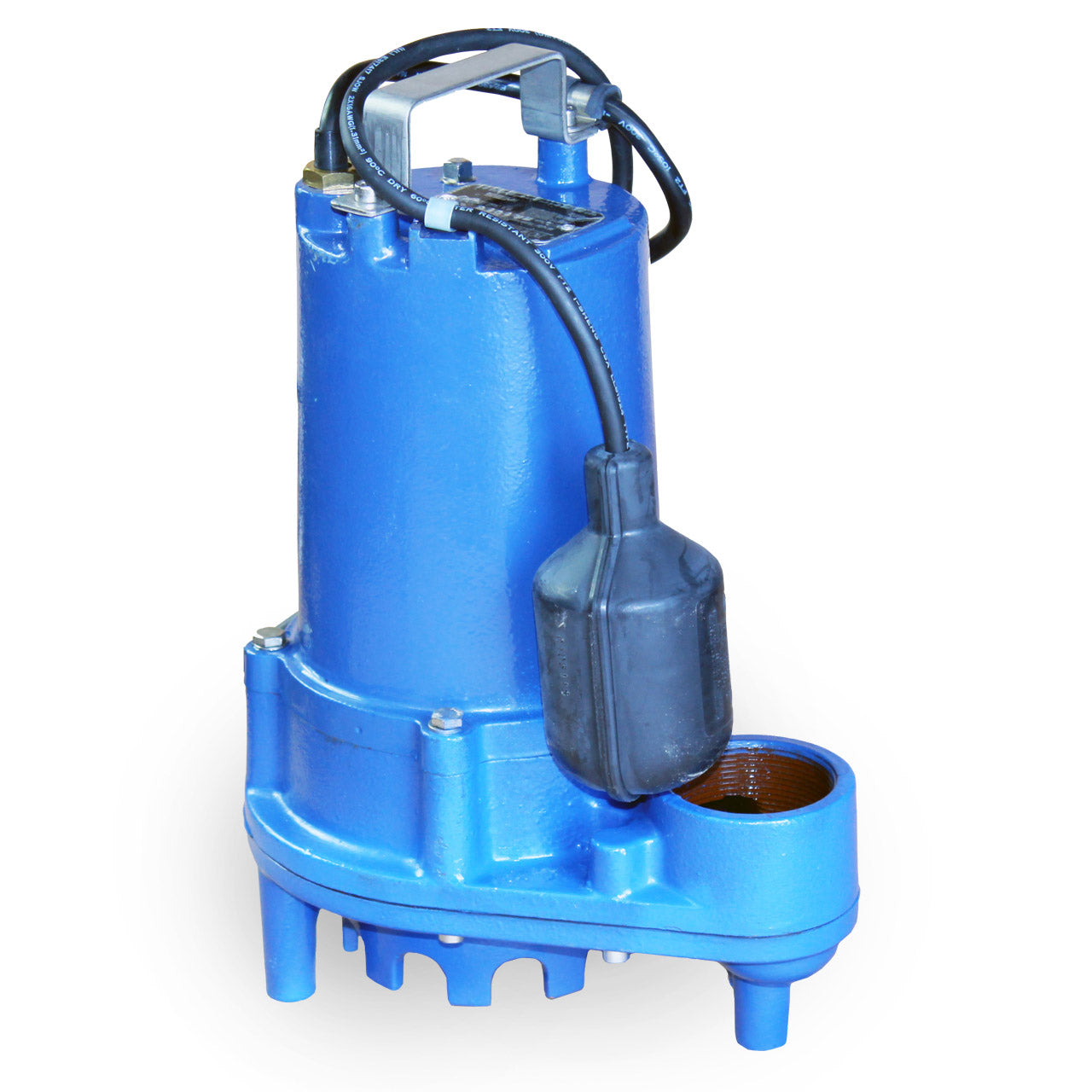

Power-Flo PFEV512A Effluent Pump 0.5 HP 115V 1PH Automatic 20' Cord
Power-Flo PFEV512A Effluent Pump 0.5 HP 115V 1PH Automatic 20' Cord
SKU : PFPFEV512A
In Stock Quantity:0
:
Brand
:
Regular price
$1,168.38 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Power-Flo PFEV512 Series Effluent Pump Description
General purpose pump for residential, light industrial and commercial sump or effluent applications.
Power-Flo PFEV512 Series Effluent Pump Typical Application
- Submersible Septic Tank / Effluent
- Submersible Sump Pump
Power-Flo PFEV512 Series Effluent Pump Features
- DISCHARGE: 2” NPT, Female, Vertical
- LIQUID TEMPERATURE: 77°F Continuous
- MOTOR HOUSING/ VOLUTE: Cast Iron, Class 30
- SEAL PLATE: Cast Iron, Class 30
- IMPELLER: Multi-Vane Vortex, Cast Iron, Class 30
- SHAFT & HARDWARE: Stainless steel
- O-RINGS: Buna-N
- SEAL: Inboard, Single Mechanical, .50” Type “C” U.S. Seal, Oil Filled Chamber, Carbon/Ceramic/Buna-N with Secondary Exclusion Seal
- UPPER BEARING: Sleeve, Oil Lubricated
- LOWER BEARING: Single Row, Ball, Oil Lubricated
- POWER CORD: 20 FT., SJTW, 16/3 Cord with Plug, Pressure Grommet for Sealing and Strain Relief
- MOTOR: Class B Insulation, Oil Filled
- SINGLE PHASE: Permanent Split Capacitor (PSC), Includes Overload Protection in Motor
- LEVEL CONTROL: Vertical Float, Mechanical, Normally Open (N/O), 16/2, SJTOW with Piggy-Back Plug. P/N: PF512041
- WARRANTY: 2 Year
Specifications
Specifications
Power-Flo PFEV512A Specifications
- VOLTAGE: 1ø, 115V, 60Hz
- HORSEPOWER: 0.5 HP
- AMP DRAW (full load): 11
- MOTOR TYPE: Permanent Split Capacitor (PSC), Includes Overload Protection
- RPM: 3450
- MAXIMUM HEAD: 49'
- MAXIMUM CAPACITY: 60 GPM
- SWITCH TYPE: Wide Angle, w/ Piggy-Back Plug
- DISCHARGE PIPE SIZE: 2.0" FNPT
- MAXIMUM SOLIDS HANDLING SIZE: 0.75" Spherical Solids
- IMPELLER TYPE: Multi-Vane Vortex, Cast Iron, Class 30
- IMPELLER DIAMETER: 3.35"
- CORD LENGTH: 20', Pressure Grommet for Sealing and Strain Relief
- CORD SIZE: 16/3; Type: SJTW
- BODY CONSTRUCTION: Cast Iron, Class 30
- MAXIMUM LIQUID TEMPERATURE: 77°F Continuous
Power-Flo PFEV512 Series Effluent Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Power-Flo PFEV512 Series Effluent Pump Product Resources
Download Power-Flo PFEV512 Series Effluent Pump Specifications
Download Power-Flo PFEV512 Series Effluent Pump Installation Manual
