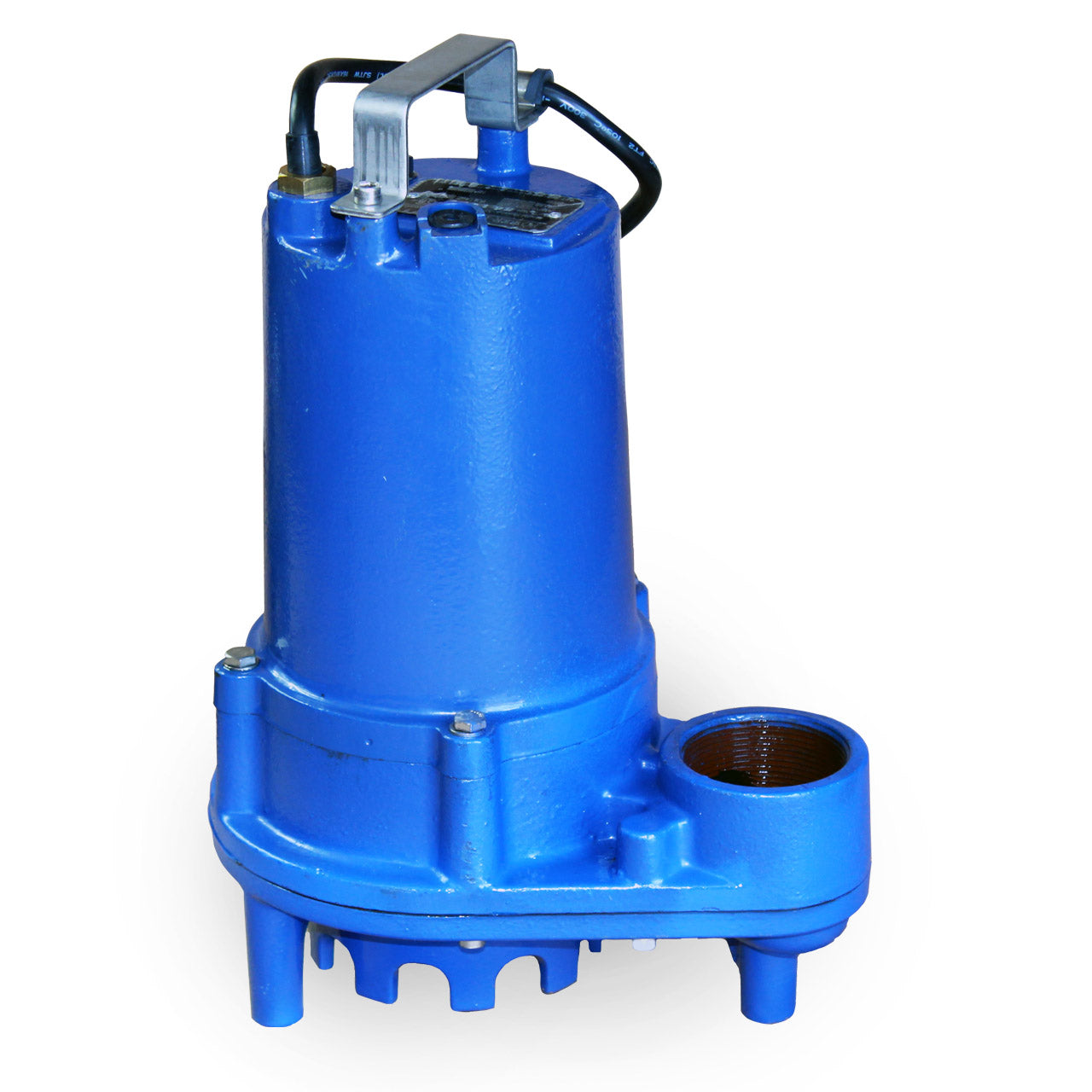

Power-Flo PFEV512 Series Effluent Pump Description

General purpose pump for residential, light industrial and commercial sump or effluent applications.

Power-Flo PFEV512 Series Effluent Pump Typical Application

• Submersible Septic Tank / Effluent
• Submersible Sump Pump

Power-Flo PFEV512 Series Effluent Pump Features

• DISCHARGE: 2” NPT, Female, Vertical
• LIQUID TEMPERATURE: 77°F Continuous
• MOTOR HOUSING/ VOLUTE: Cast Iron, Class 30
• SEAL PLATE: Cast Iron, Class 30
• IMPELLER: Multi-Vane Vortex, Cast Iron, Class 30
• SHAFT & HARDWARE: Stainless steel
• O-RINGS: Buna-N
• SEAL: Inboard, Single Mechanical, .50” Type “C” U.S. Seal, Oil Filled Chamber, Carbon/Ceramic/Buna-N with Secondary Exclusion Seal
• UPPER BEARING: Sleeve, Oil Lubricated
• LOWER BEARING: Single Row, Ball, Oil Lubricated
• POWER CORD: 20 FT., SJTW, 16/3 Cord with Plug, Pressure Grommet for Sealing and Strain Relief
• MOTOR: Class B Insulation, Oil Filled
• SINGLE PHASE: Permanent Split Capacitor (PSC), Includes Overload Protection in Motor
• WARRANTY: 2 Year

Power-Flo PFEV512 Specifications

• VOLTAGE: 1ø, 115V, 60Hz
• HORSEPOWER: 0.5 HP
• AMP DRAW (full load): 11
• MOTOR TYPE: Permanent Split Capacitor (PSC), Includes Overload Protection
• RPM: 3450
• MAXIMUM HEAD: 49'
• MAXIMUM CAPACITY: 60 GPM
• DISCHARGE PIPE SIZE: 2.0" FNPT
• MAXIMUM SOLIDS HANDLING SIZE: 0.75" Spherical Solids
• IMPELLER TYPE: Multi-Vane Vortex, Cast Iron, Class 30
• IMPELLER DIAMETER: 3.35"
• CORD LENGTH: 20', Pressure Grommet for Sealing and Strain Relief
• CORD SIZE: 16/3; Type: SJTW
• BODY CONSTRUCTION: Cast Iron, Class 30
• MAXIMUM LIQUID TEMPERATURE: 77°F Continuous

Power-Flo PFEV512 Series Effluent Pump Performance Curve
