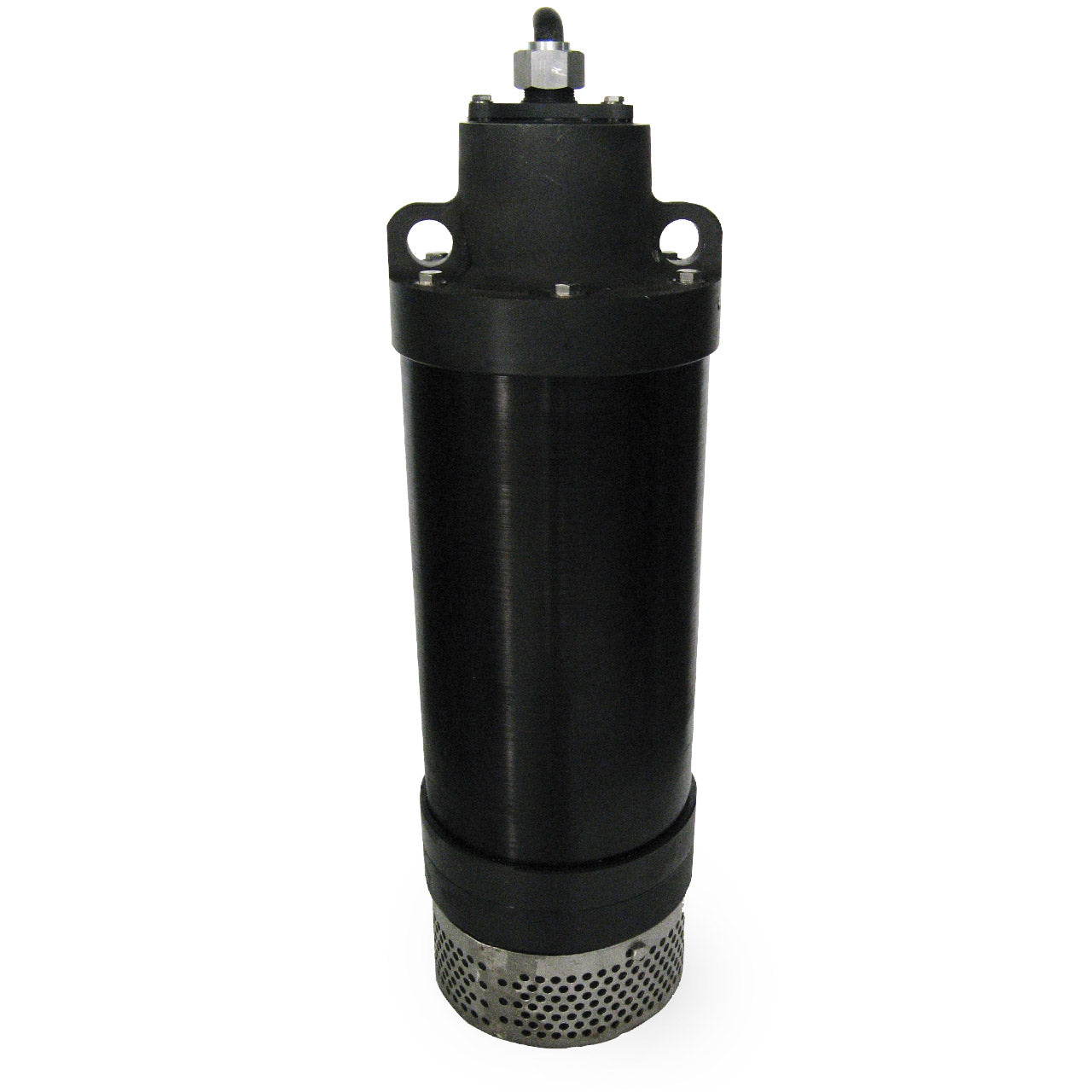

Power-Flo PF81034HHLC Submersible Dewatering Pump 10 HP 460V 3PH Manual 50' Cord
Power-Flo PF81034HHLC Submersible Dewatering Pump 10 HP 460V 3PH Manual 50' Cord
SKU : PFPF81034HHLC
In Stock Quantity:0
:
Brand
:
Regular price
$19,114.06 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Power-Flo Submersible Dewatering Pump Description
Power-Flo pumps are compact, lightweight powerful Portable Electric Submersible Pumps. They are whisper quiet and will perform in any position. Power-Flo pumps can be staged in series for higher head applications.
Power-Flo in-line design assures maximum heat transferred to the pumped liquid. Power-Flo pumps can operate in up to 140°F (60°C) temperature water. Power-Flo design provides the coolest operating motor for maximum life. Consult the factory prior to pumping fluids other than water for proffesional instructions.
Power-Flo Submersible Dewatering Pump Typical Application
- Dewatering
Power-Flo Submersible Dewatering Pump Features
- DISCHARGE CASE: Aluminum, Hard Anodized
- DIFFUSER: Aluminum, Hard Anodized
- SUCTION CASE: Aluminum, Hard Anodized, with Wear Resistant Polyurethane Liner
- FRAME & OUTER CASE: Aluminum, Hard Anodized
- WEAR PLATE: Polyurethane
- PUMP SHAFT: Stainless Steel
- IMPELLER: Hardened 17-4 Stainless Steel
- O-RINGS: Buna-N
- SEAL: Tandem Mechanical, Oil Lubricated
- INBOARD SEAL: Carbon/Ceramic/Buna-N Hardware-300 Series Stainless
- OUTBOARD SEAL: Silicon Carbide/Silicon Carbide/Buna-N Hardware-300 Series Stainless
- STRAINER: Stainless Steel, 1/4" Holes
- UPPER BEARING: Single Row, Shielded, Ball, Pre-Lubricated High-Temperature Grease, Load: Radial
- LOWER BEARING: Single Row, Shielded, Ball, Pre-Lubricated High-Temperature Grease, Load: Radial & Thrust
- CORD ENTRY: 50 Ft., 6/4 SOOW - 230 Volt, 12/4 SOOW - 460 Volt, with Strain Relief and Pressure Grommet for Sealing
- MOTOR: Class H Insulation, VPI
- SEAL: Tandem Mechanical, Oil Lubricated
- CONTROL: NEMA 3R Rainproof, w/Circuit Breaker
- OPTIONAL: NEMA-4 Weathertight Control, NEMA-4 Dual Float Control
- WARRANTY: 1 Year
Specifications
Specifications
Power-Flo PF81034HHLC Submersible Dewatering Pump Specifications
- HORSEPOWER: 10.0 HP
- VOLTAGE: 460V
- PHASE: 3 Ph
- HERTZ: 60 Hz
- RPM: 3450 RPM
- FULL LOAD AMPS: 15.0
- SEAL: Tandem Mechanical
- SOLIDS HANDLING: 0.0" Spherical Solids
- DISCHARGE: Hard Anodized Aluminum 3.0" NPT With 2.0" NPT Adaptor
- MAX HEAD: 162.0'
- MAX FLOW RATE: 450 GPM
- IMPELLER TYPE: Hardened 17-4 Stainless Steel
- LEVEL CONTROL: None
Power-Flo Submersible Dewatering Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Power-Flo Submersible Dewatering Pump Product Resources
Download Power-Flo Submersible Dewatering Pump Catalog Sheet
Download Power-Flo Submersible Dewatering Pump Installation and Owners Manual
