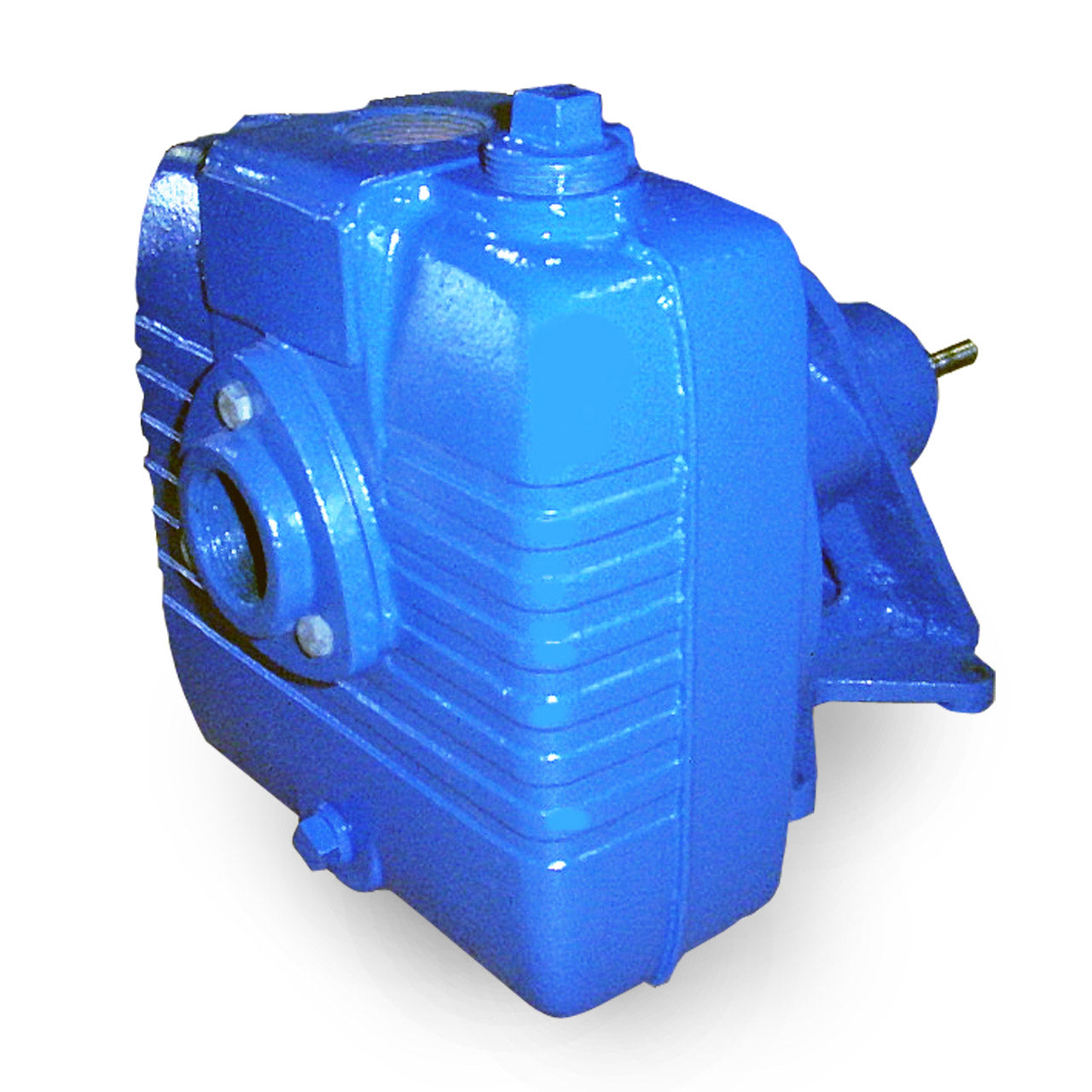

Power-Flo Self Priming Frame Mounted Pump Description

Self-Priming centrifugal frame mounted pumps designed for industrial, Municipal and Marine applications.

Power-Flo Self Priming Frame Mounted Pump Typical Application

• Designed For Marine, Municipal and Industry
• Designed For The User Who Has A Separate Power Source Suitable For Driving Through Couplings Or With Belts.

Power-Flo Self Priming Frame Mounted Pump Features

• SUCTION/DISCHARGE: 1.5"x1.5" NPT, Female
• LIQUID TEMPERATURE: 160°F Continuous
• VOLUTE: Removable, Cast Iron, ASTM, Class 30
• BODY: Cast Iron, ASTM, Class 30
• PEDESTAL: Cast Iron, ASTM, Class 30
• O-RINGS: Buna-N
• SHAFT: Stainless Steel
• HARDWARE: Steel & Stainless Steel
• IMPELLER: Open, Trash Type, Dynamically Balanced, Cast Iron, Class 30
• SEAL: Mechanical, Self Lubricated, 5/8" Dia., Carbon/Ceramic/Buna-N
• CHECK VALVE: Valve Flap-Neoprene, Weight-Steel
• BEARING-DRIVE END: Single Row, Ball, Grease Lubricated
• BEARING-PUMP END: Single Row, Ball, Grease Lubricated
• WARRANTY: 1 Year

Power-Flo PF5CU Specifications

• DISCHARGE SIZE: 1.5" NPT
• INLET SIZE: 1.5" NPT
• MAXIMUM CAPACITY: 125 GPM
• MAXIMUM HEAD: 104'
• IMPELLER MATERIAL: Cast Iron, Open, Trash Type Dynamically Balanced
• BODY CONSTRUCTION: Cast Iron, ASTM, Class 30
• MAXIMUM SOLIDS HANDLING SIZE: 0.375"
• MAXIMUM LIQUID TEMPERATURE: 160°F Continuous

Power-Flo Self Priming Frame Mounted Pump Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Power-Flo Self Priming Frame Mounted Pump Product Resources

Download Power-Flo Self Priming Frame Mounted Pump Catalog Sheet

Download Power-Flo Self Priming Frame Mounted Pump Installation Manual
