Power-Flo PF5CCE3-BF Self-Priming Close Coupled Pump 3.0 HP 208-230/460V 3PH
Power-Flo PF5CCE3-BF Self-Priming Close Coupled Pump 3.0 HP 208-230/460V 3PH
SKU : PFPF5CCE3-BF
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued - Self Priming Pumps

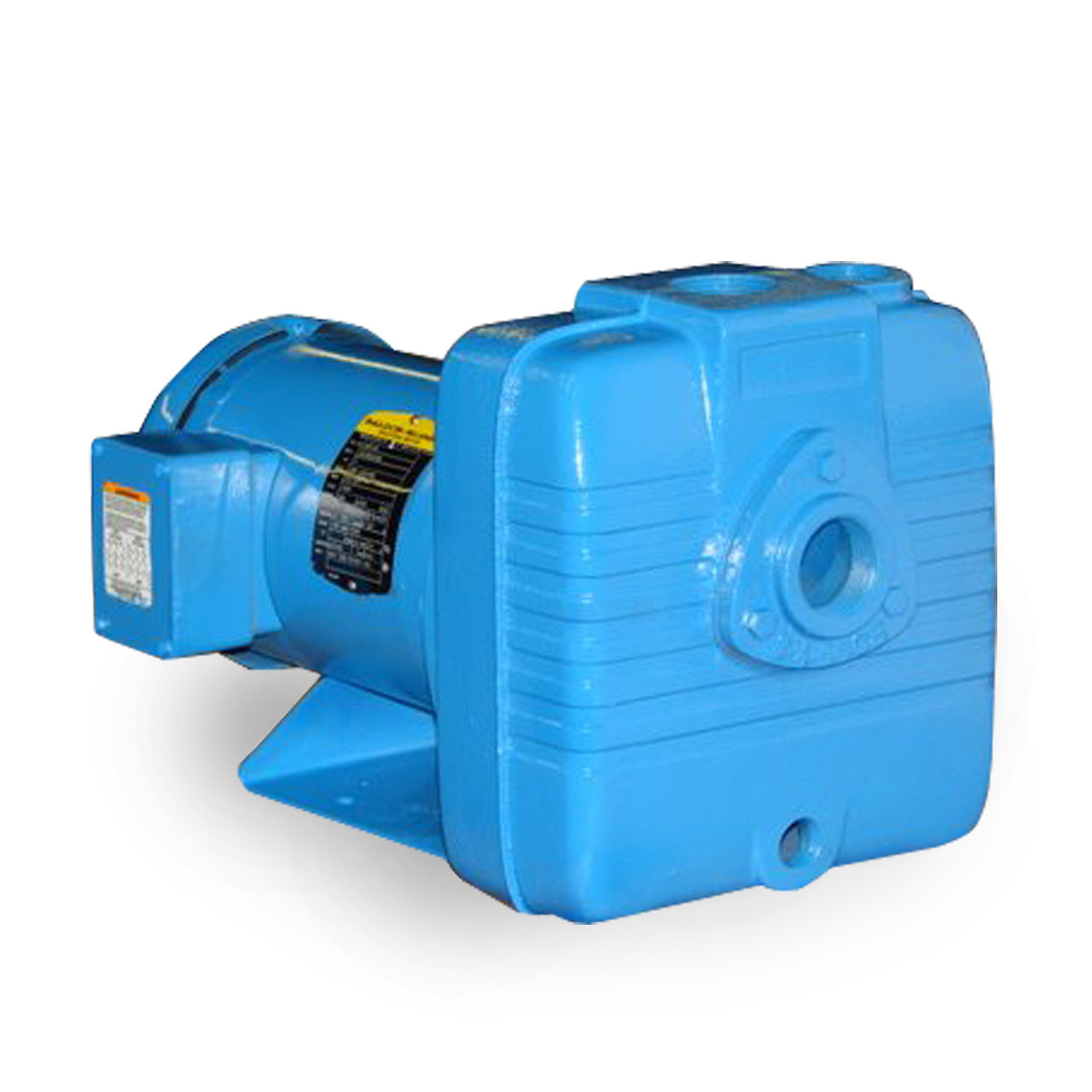

Power-Flo PF5CCE3-BF Is A Self-Priming Pump With A Open Drip-Proof Motor and Bronze Fitted Volute and Impeller
Electric Motor Driven Centrifugal Pump.
Power-Flo PF5CCE3-BF Typical Application
- Designed For Marine, Municipal and Industry
- Commonly Used In Air Conditioning And Refrigeration, High Volume Liquid Transfer, Irrigation, Dewatering And Lawn Sprinkling Applications.
Power-Flo PF5CCE3-BF Features
- Class 30 Cast Iron Housing and Bronze Volute
- Stainless Steel Shaft and Hardware
- Steel Pedestal
- Squirrel Cage Induction Motor
- Three Phase: Dual Voltage 230/460, Usable at 208v
- Temperature Sensor Normally Closed (N/C)
- Self Lubricating Carbon/Ceramic/Buna-N Seal
Specifications
Specifications
Power-Flo PF5CCE3-BF Technical Details
- HORSEPOWER: 3.0 HP
- VOLTAGE: 208-230/460 V
- FULL LOAD AMPS: 8.1-7.6/3.8
- PHASE: 3 Ph
- HERTZ: 60 Hz
- RPM: 3450 RPM
- SUCTION: 1.5" NPT
- DISCHARGE: 1.5" NPT
- CORD LENGTH: None
- MAX HEAD: 110.0'
- MAX FLOW RATE: 130 GPM
- IMPELLER TYPE: Open, Trash Type Dynamically Balanced Bronze
- SPHERICAL SOLIDS: 0.375
- LEVEL CONTROL OPTIONS: None
Power-Flo PF5CCE3-BF Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Power-Flo PF5CCE3-BF Product Resources
Download Power-Flo PF 3 4 5 CCE Catalog Sheet
Download Power-Flo PF 3 4 5 10 15 20 25 CCE Installation Manual
