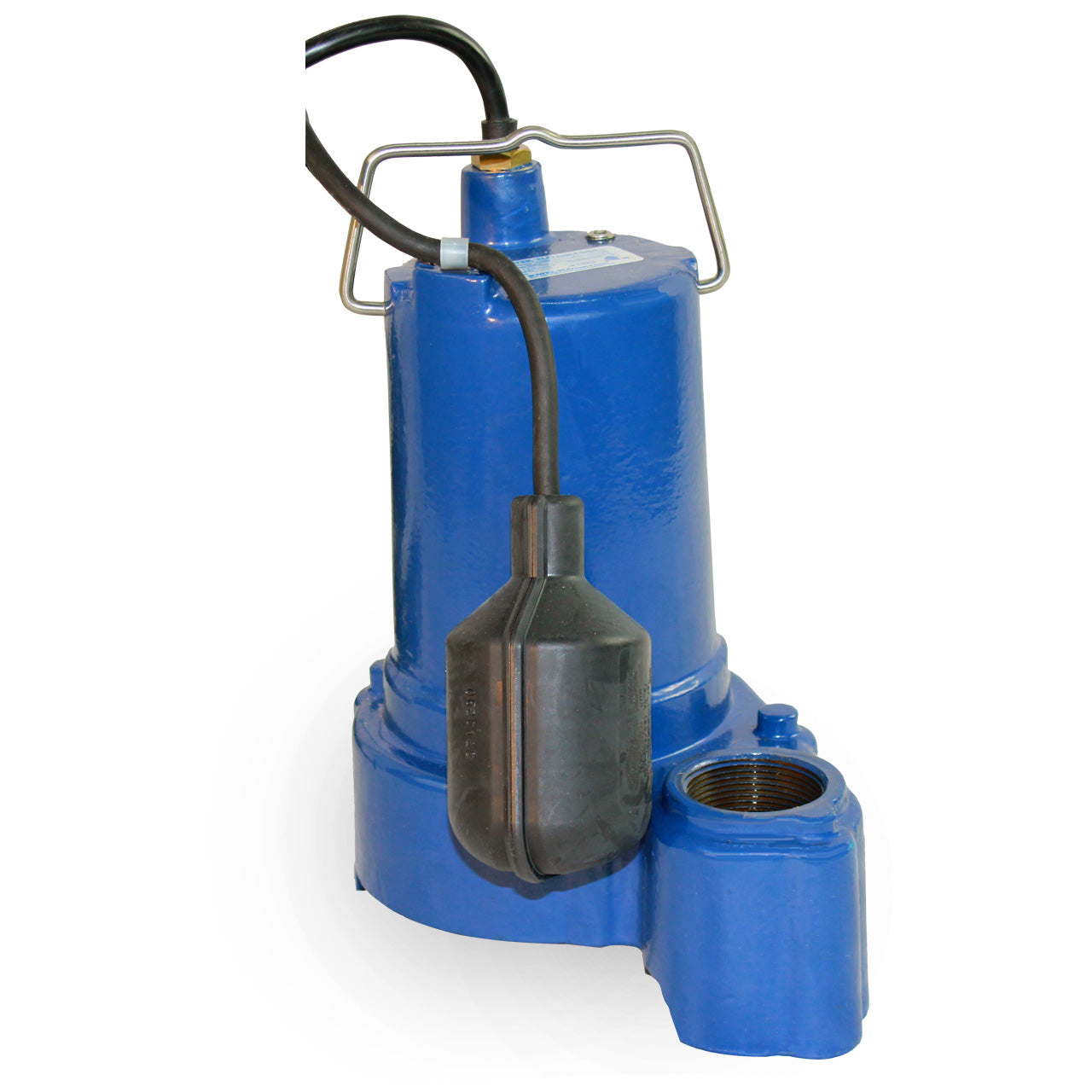

Power-Flo PF50AX Description

The Power-Flo PF50AX Submersible Pump Is Specifically Designed To Meet The Demands Of Residential Septic Tank Effluent Applications.

Power-Flo PF50AX Typical Application

• Basement Sumps
• Dewatering
• Light Effluent
• Industrial Circulators
• Transfer Tanks

Power-Flo PF50AX Features

• Built-In Overload Protection
• Oil-Filled Motor for Lubrication and Cooling
• Uses Single-Row Ball-Bearing Construction

Power-Flo PF50AX Technical Details

• HORSEPOWER: 0.5 HP
• VOLTAGE: 115 V
• PHASE: 1 Ph
• HERTZ: 60 Hz
• RPM: 3450 RPM
• FULL LOAD AMPS: 8.0
• SOLIDS HANDLING: 0.5" Spherical Solids
• DISCHARGE: 1.5" FNPT
• CORD LENGTH: 20' Power Cord
• MAX HEAD: 30.0'
• MAX FLOW RATE: 70 GPM
• IMPELLER TYPE: Non-Clogging Vortex
• LEVEL CONTROL OPTIONS: Wide Angle Float

Power-Flo PF50AX Pump Performance Curve

Power-Flo PF50AX Model Comparison

PF33 Replaces the following units; Barnes model SP33, PACO model PIP700C, Liberty model VMF237 & VMF257, Little Giant model 6CIA & 6CE-CIA-SFS, Goulds model ST31, Dayton model 3BB68, 3BB70, 3BB76, 3BB73, 3BB81, 4HU68, Zoeller model M53

PF50X Replaces the following units; Barnes model SPX50, PACO model PIP701C, Liberty model VMF287, Little Giant model 8CIA & 10CIA, Goulds model ST51, Dayton model 3BB74, 3BB71, 3BB69, 3BB77, 3BB82, 4HU69, Zoeller model M98

Note: Controls -- M-manual, A-automatic, wide angle (PB), VF-vertical float (PB); PB-piggy backHT-High temperature 185 degrees continuous serviceX=20' Cord, X-30=30' Cord

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Power-Flo PF50AX Product Resources

Download Power-Flo PF33/PF50 Catalog Sheet
