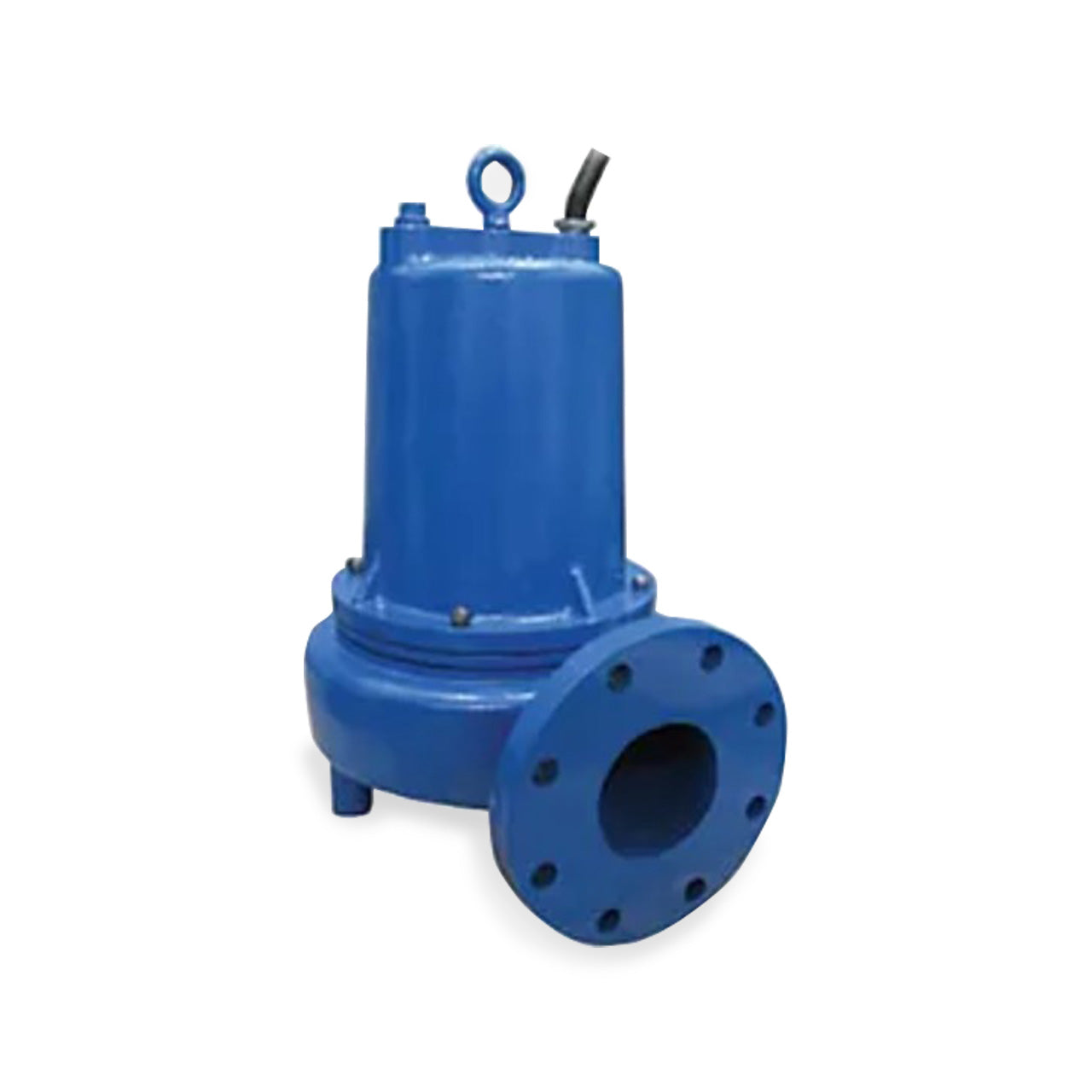

Power-Flo PF4NC5024SS Sewage Pump 5.0 HP 230V 3PH 25' Cord
Power-Flo PF4NC5024SS Sewage Pump 5.0 HP 230V 3PH 25' Cord
SKU : PFPF4NC5024SS
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued - Sewage
Power-Flo PF4NC-SS Series Sewage Pump Description.
Submersible Solids Handling Sewage Pumps are designed for typical raw sewage applications.
Power-Flo PF4NC-SS Series Sewage Pump Typical Application
Submersible Sewage Pump Designed for STEP Systems, Mound Systems, Liquid Waste Transfer and Higher Head De-Watering Applications.
Power-Flo PF4NC-SS Series Sewage Pump Features
- DISCHARGE: 4" 125 lb., ANSI Flange, Horizontal
- LIQUID TEMPERATURE: 104°F
- MOTOR HOUSING, VOLUTE & SEAL PLATE: Cast Iron, Class 30
- IMPELLER: 2 Vane Open Type with Pump Out Vanes on Back Side, Dynamically Balanced, ISO G6.3, Cast Iron, Class 30
- SHAFT & HARDWARE: Stainless Steel
- SQUARE RINGS: Buna-N
- SEAL: Single Mechanical, Inboard, Oil Filled Reservoir, with Secondary Exclusion Seal, Silicon Carbide/Buna-N, 1-Inch
- UPPER BEARING: Single Row, Ball, Oil Lubricated
- LOWER BEARING: Single Row, Ball, Oil Lubricated
-
POWER CORD:
On 2.8 3Ph - 25 Ft. SOW Cord, Pressure Grommet for Sealing and Strain Relief
All Others - 25 Ft. SOW Cord. Epoxy Sealed Housing with Secondary Pressure Grommet for Sealing and Strain Relief. - MOTOR: Class B Insulation, Oil Filled
- SINGLE PHASE: Permanent Split Capacitor (PSC), Included Overload Protection in Motor
- THREE PHASE: 230/460 Volt. Dual Voltage. Requires Overload Protection to be Included in Control Panel.
- WARRANTY: 1 Year.
Specifications
Specifications
Power-Flo PF4NC5024SS Specifications
- VOLTAGE: 1ø, 230V, 60Hz
- HORSEPOWER: 5.0 HP
- AMP DRAW (full load): 28.0
- MOTOR TYPE: Permanent Split Capacitor (PSC)
- RPM: 1750
- MAXIMUM HEAD: 47'
- MAXIMUM CAPACITY: 480 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 4” 125 lb., ANSI Flange, Horizontal
- MAXIMUM SOLIDS HANDLING SIZE: 3.0"
- IMPELLER TYPE: Cast Iron, Class 30, 2 Vane Open Type with Pump Out Vanes on Back Side, Dynamically Balanced
- IMPELLER DIAMETER: 7.00"
- CORD LENGTH: 25', Type: SOW
- CORD SIZE: 10/3
- BODY CONSTRUCTION: Cast Iron, Class 30
- MAXIMUM LIQUID TEMPERATURE: 104°F Continuous
Power-Flo PF4NC-SS Series Sewage Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Power-Flo PF4NC-SS Series Sewage Pump Product Resources
Download Power-Flo PF4NC-SS Series Sewage Pump Catalog Sheet
Download Power-Flo PF4NC-SS Series Sewage Pump Specification Sheet
Download Power-Flo PF4NC-SS Series Sewage Pump Installation Manual
