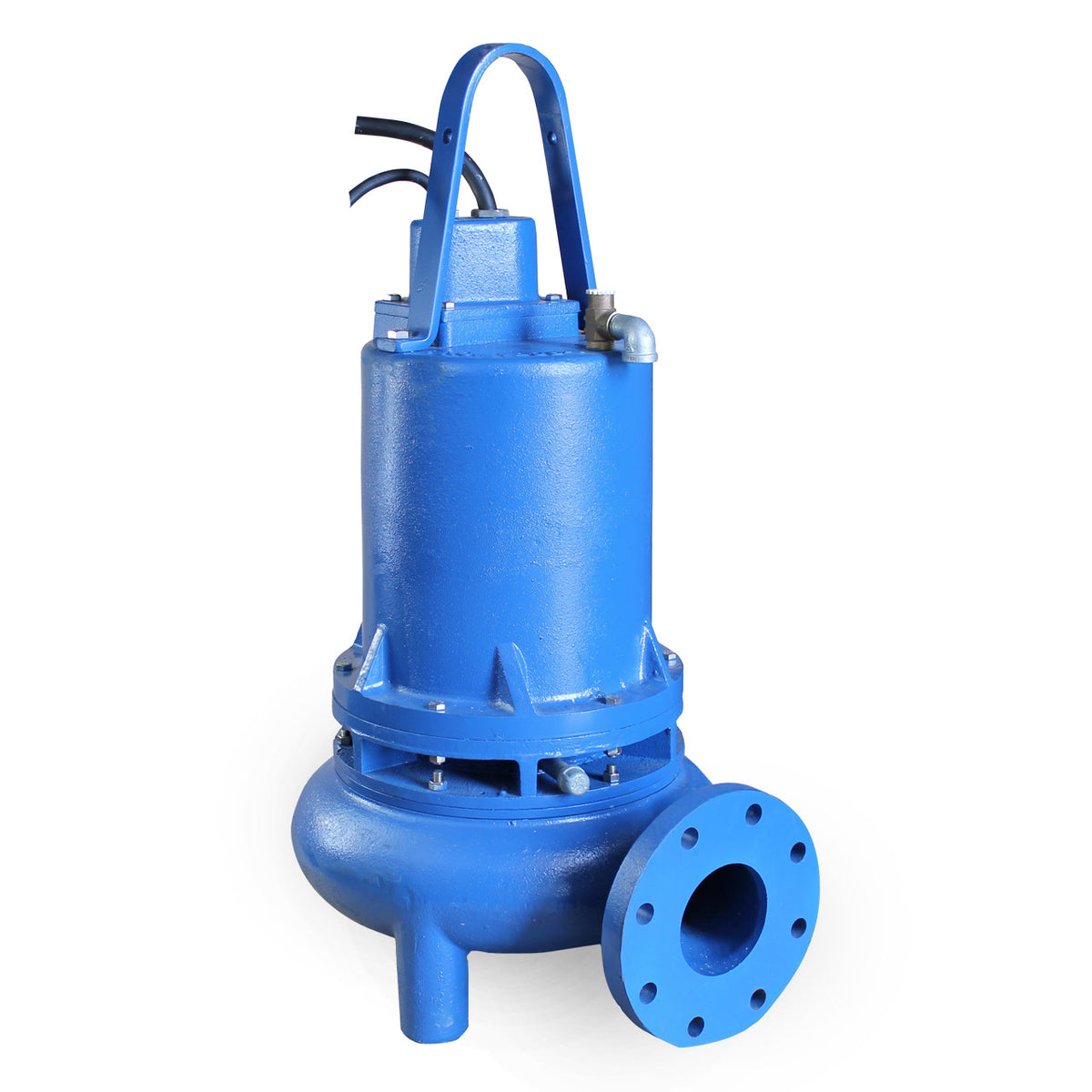

Power-Flo PFC4NC11344 Non-Clog Sewage Pump 11.3 HP 460V 3PH 30' Cord
Power-Flo PFC4NC11344 Non-Clog Sewage Pump 11.3 HP 460V 3PH 30' Cord
SKU : PFPF4NC11344
In Stock Quantity:0
:
Brand
:
Regular price
$9,637.70 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Power-Flo PFC4NC Series Sewage Pump Description.
Submersible Solids Handling Sewage Pumps are designed for typical raw sewage applications.
Power-Flo PFC4NC Series Sewage Pump Features
- DISCHARGE: 4" 125 lb., ANSI Flange, Horizontal
- LIQUID TEMPERATURE: 104°F Continuous
- MOTOR HOUSING/VOLUTE: Cast Iron, Class 30
- IMPELLER: 2 Vane, Open Type with Pump Out Vanes on Back Side, Dynamically Balanced, ISO G6.3, Cast Iron, Class 30
- UPPER BEARING: Single Row, Ball, Oil Lubricated
- LOWER BEARING: Double Row, Ball, Oil Lubricated
- POWER CORD: 25 Ft, SEOOW, 10/4 Cord. Epoxy Sealed Housing with Secondary Pressure Grommet for Sealing an Strain Relief.
- SENSOR CORD: 25 Ft, SEOOW, 18/5 Cord. Epoxy Sealed Housing with Secondary Pressure Grommet for Sealing an Strain Relief.
- MOTOR: Class F Insulation, Oil Filled
- THREE PHASE: 230/460 Dual-Voltage Motor. Requires Overload Protection to be Included in Control Panel (Included in PF panels)
- SEAL LEAK SENSOR: Normally Open (N/O), 2 Probe Design. Requires Relay in Control Panel. (Included in PF panels)
- TEMPERATURE SENSOR: Normally Closed (N/C), Requires Relay in Control Panel. (Included in PF panels)
- WARRANTY: 1 Year.
- SHAFT & HARDWARE: Stainless Steel.
- SEAL PLATE: Cast Iron, Class 30.
- PAINT: Air Dry Enamel
- Square Rings: Buna-N
- Seal: Double Mechanical, 1-1/4″, Oil Filled Pressure Equalized Reservoir, Upper
Specifications
Specifications
Power-Flo PFC4NC11344 Specifications
- VOLTAGE: 3ø, 460V, 60Hz
- HORSEPOWER: 11.3 HP
- AMP DRAW (full load): 14.2
- MOTOR TYPE: Class F Insulation, Oil Filled
- RPM: 1750
- MAXIMUM HEAD: 70'
- MAXIMUM CAPACITY: 860 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 4” 125 lb., ANSI Flange, Horizontal
- MAXIMUM SOLIDS HANDLING SIZE: 3.0"
- IMPELLER TYPE: Cast Iron, Class 30, 2 Vane Semi Open Type with Pump Out Vanes on Back Side, Dynamically Balanced
- IMPELLER DIAMETER: 8.00"
- CORD LENGTH: 30', Type: SEOOW
- CORD SIZE: 10/4 Cord with Plug
- BODY CONSTRUCTION: Cast Iron, Class 30
- MAXIMUM LIQUID TEMPERATURE: 104°F Continuous
Power-Flo PFC4NC Series Sewage Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Power-Flo PFC4NC Series Sewage Pump Product Resources
Download Power-Flo PFC4NC Series Sewage Pump Catalog Sheet
Download Power-Flo PFC4NC Series Sewage Pump Specification Sheet
Download Power-Flo PFC4NC Series Sewage Pump Installation Manual
