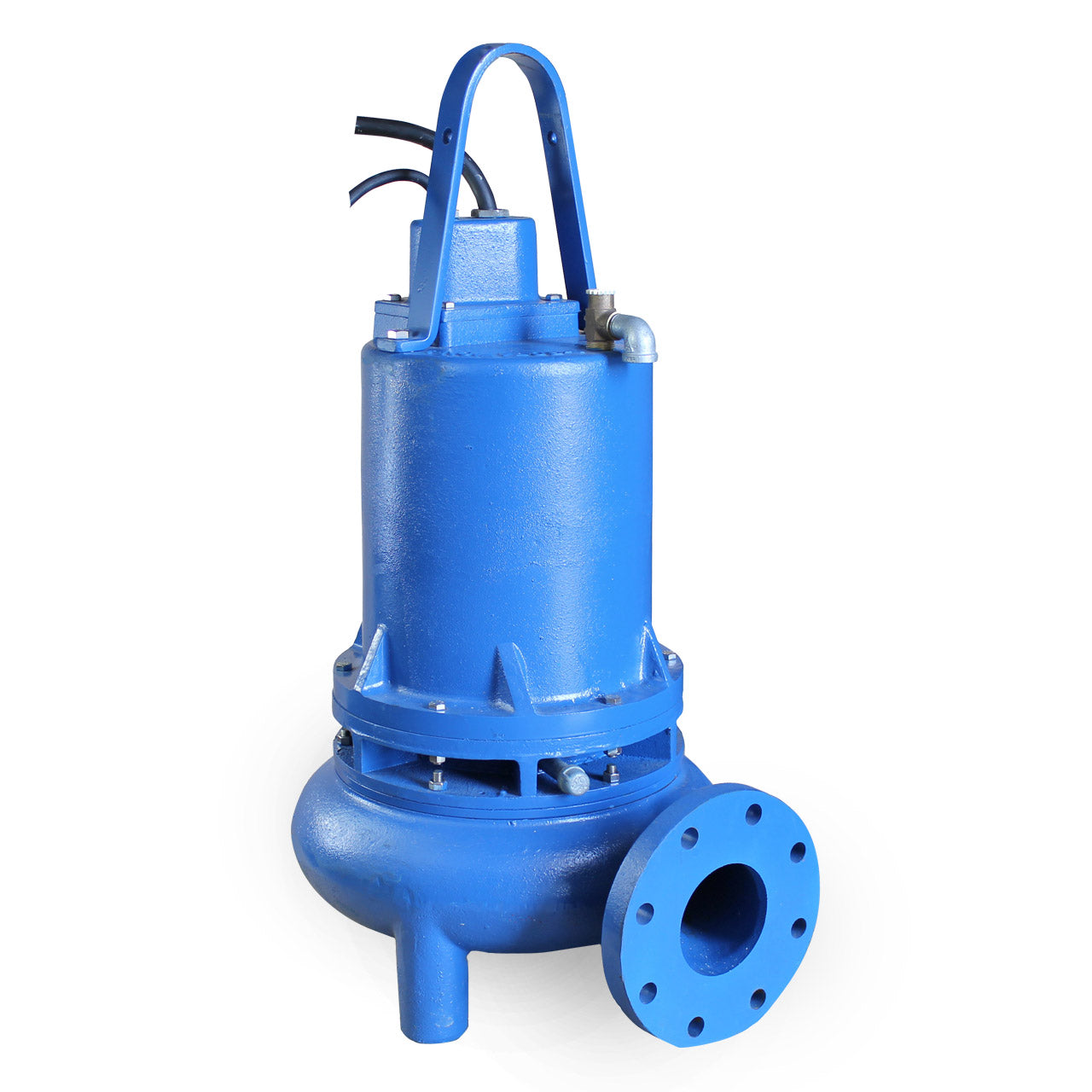

Power-Flo PF4NC11334 Non-Clog Sewage Pump 11.3 HP 230V 3PH 30' Cord
Power-Flo PF4NC11334 Non-Clog Sewage Pump 11.3 HP 230V 3PH 30' Cord
SKU : PFPF4NC11334
In Stock Quantity:0
:
Brand
:
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Discontinued - Sewage
Power-Flo PF4NC Series Sewage Pump Description.
Submersible Solids Handling Sewage Pumps are designed for typical raw sewage applications.
Power-Flo PF4NC Series Sewage Pump Typical Application
Submersible Sewage Pump Designed for STEP Systems, Mound Systems, Liquid Waste Transfer and Higher Head De-Watering Applications.
Power-Flo PF4NC Series Sewage Pump Features
- DISCHARGE: 4" 125 lb., ANSI Flange, Horizontal
- LIQUID TEMPERATURE: 104°F
- MOTOR HOUSING, VOLUTE & SEAL PLATE: Cast Iron, Class 30
- IMPELLER: 2 Vane Semi Open Type with Pump Out Vanes on Back Side, Dynamically Balanced, ISO G6.3, Cast Iron, Class 30
- SHAFT & HARDWARE: Stainless Steel
- SQUARE RINGS: Buna-N
- SEAL: Double Mechanical, 1.25", T21 Oil Filled Pressure Equalized Reservoir, Carbon/Ceramic/Silicone Inner Seal, Carbide/Silicone Carbide/Viton Outer Seal
- UPPER BEARING: Single Row, Ball, Oil Lubricated
- LOWER BEARING: Double Row, Ball, Oil Lubricated
- POWER CORD: 30 Ft., Epoxy Sealed Housing with Secondary Pressure Grommet for Sealing an Strain Relief.
- SENSOR CORD: 30 Ft., Type Cord
- MOTOR: Class F Insulation, Oil Filled
- SINGLE PHASE: Capacitor Start/Capacitor Run. Requires Starter or Panel which Includes Capacitors and Overload Protection
- THREE PHASE: 230/460 Volt. Dual Voltage. Requires Overload Protection to be Included in Control Panel.
- SEAL LEAK SENSOR: Normally Open (N/O), 2 Probe Design. Requires Relay in Control Panel.
- TEMPERATURE SENSOR: Normally Closed (N/C), Requires Relay in Control Panel.
- WARRANTY: 1 Year.
Specifications
Specifications
Power-Flo PF4NC11334 Specifications
- VOLTAGE: 3ø, 230V, 60Hz
- HORSEPOWER: 11.3 HP
- AMP DRAW (full load): 28.4
- MOTOR TYPE: Class F Insulation, Oil Filled
- RPM: 1750
- MAXIMUM HEAD: 70'
- MAXIMUM CAPACITY: 860 GPM
- SWITCH TYPE: Manual
- DISCHARGE PIPE SIZE: 4” 125 lb., ANSI Flange, Horizontal
- MAXIMUM SOLIDS HANDLING SIZE: 3.0"
- IMPELLER TYPE: Cast Iron, Class 30, 2 Vane Semi Open Type with Pump Out Vanes on Back Side, Dynamically Balanced
- IMPELLER DIAMETER: 8.00"
- CORD LENGTH: 30', Type: SEOOW
- CORD SIZE: 10/4 Cord with Plug
- BODY CONSTRUCTION: Cast Iron, Class 30
- MAXIMUM LIQUID TEMPERATURE: 104°F Continuous
Power-Flo PF4NC Series Sewage Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Power-Flo PF4NC Series Sewage Pump Product Resources
Download Power-Flo PF4NC Series Sewage Pump Catalog Sheet
Download Power-Flo PF4NC Series Sewage Pump Specification Sheet
Download Power-Flo PF4NC Series Sewage Pump Installation Manual
