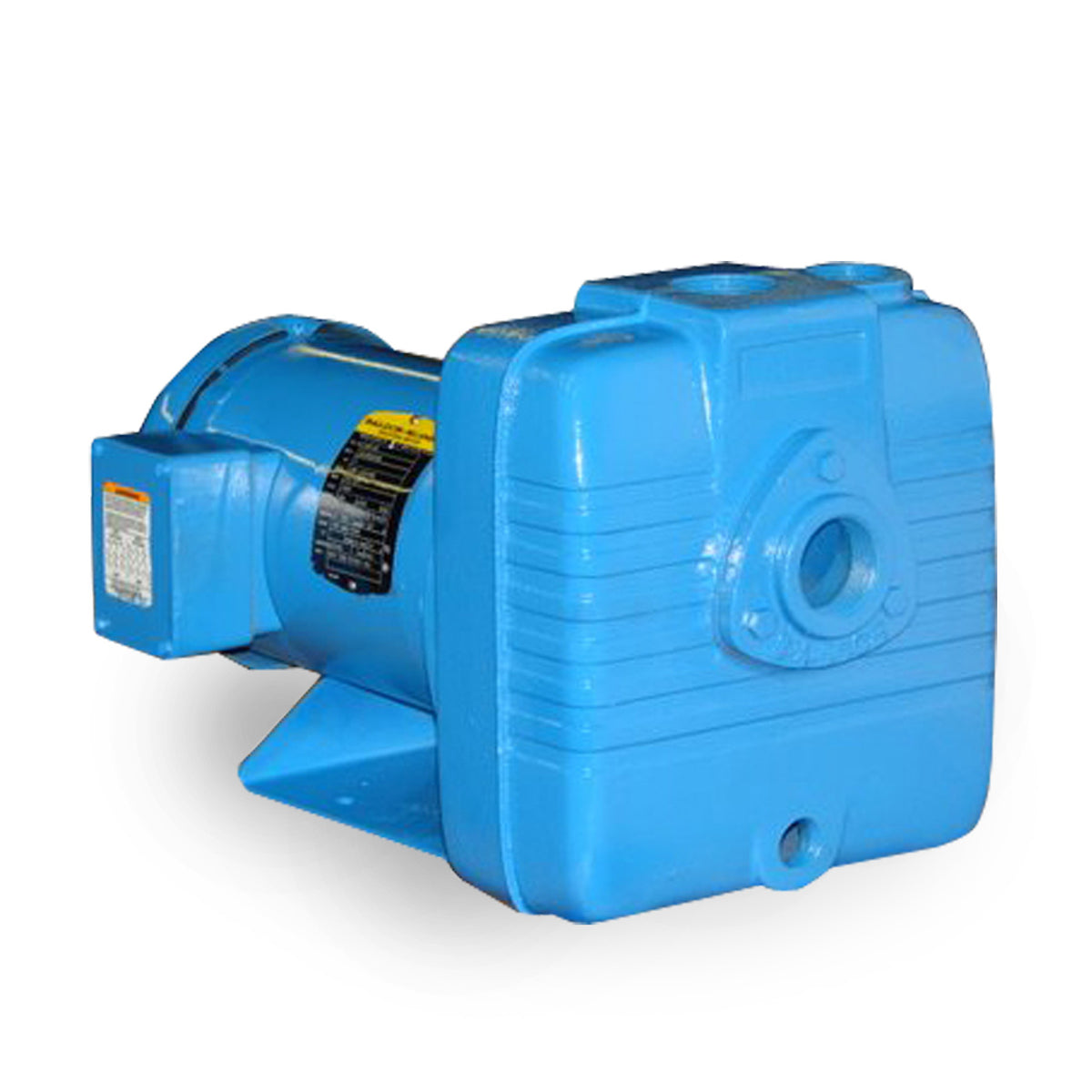

Power-Flo PF4CCE3-BF Self-Priming Close Coupled Pump 2.0 HP 208-230/460V 3PH
Power-Flo PF4CCE3-BF Self-Priming Close Coupled Pump 2.0 HP 208-230/460V 3PH
SKU : PFPF4CCE3-BF
In Stock Quantity:0
:
Brand
:
Regular price
$4,914.21 USD
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Description
Power-Flo Self-Priming Centrifugal Pump Description.
Self-Priming centrifugal pumps designed for marine, municipal and industrial applications.
Power-Flo Self-Priming Centrifugal Pump Typical Application
- Designed For Marine, Municipal and Industry
- Commonly Used In Air Conditioning And Refrigeration, High Volume Liquid Transfer, Irrigation, Dewatering And Lawn Sprinkling Applications.
Power-Flo Self-Priming Centrifugal Pump Features
- DISCHARGE: 1-1/2″ x 1-1/2″ NPT, Female
- LIQUID TEMPERATURE: 160°F Continuous
- INTERMEDIATE: Cast Iron, ASTM Class 30
- VOLUTE: Cast Iron, ASTM Class 30
- BODY: Cast Iron, ASTM Class 30
- PEDESTAL: Steel
- PAINT: Air Dry Enamel
- SQUARE RINGS: Buna-N
- SHAFT: 416 Stainless Steel
- HARDWARE: Steel & Stainless Steel
- IMPELLER: Open, Trash Type, Dynamically Balanced, 3/8″ Spherical Solids, Cast Iron
- SEAL: Mechanical, Self Lubrication, 5/8″, Carbon/Ni-Resist/Buna-N
- CHECK VALVE: Valve Flap - Neoprene, Weight-Steel
- MOTOR: Open Drip Proof - C-Face, Footed, Squirrel Cage Induction, 40ºC Ambient, Class B Insulation or TEFC Class B or F Insulation
- SINGLE PHASE: Dual Voltage 115/230
- THREE PHASE: Dual Voltage 230/460, Usable at 208
- WARRANTY: 1 Year
Specifications
Specifications
Power-Flo PF4CCE3-BF Self-Priming Centrifugal Pump Specifications
- HORSEPOWER: 2.0 HP
- VOLTAGE: 208-230/460 V
- FULL LOAD AMPS: 7.0-5.4/2.7
- PHASE: 3 Ph
- HERTZ: 60 Hz
- RPM: 3450 RPM
- SUCTION: 1.5" NPT
- DISCHARGE: 1.5" NPT
- CORD LENGTH: None
- MAX HEAD: 95.0'
- MAX FLOW RATE: 105 GPM
- IMPELLER TYPE: Open, Trash Type Dynamically Balanced Bronze
- SPHERICAL SOLIDS: 0.375
- LEVEL CONTROL OPTIONS: None
Power-Flo Self-Priming Centrifugal Pump Performance Curve
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Resources
Resources
Power-Flo Self-Priming Centrifugal Pump Product Resources
Download Power-Flo Self-Priming Centrifugal Pump Catalog Sheet
Download Power-Flo Self-Priming Centrifugal Pump Installation Manual
