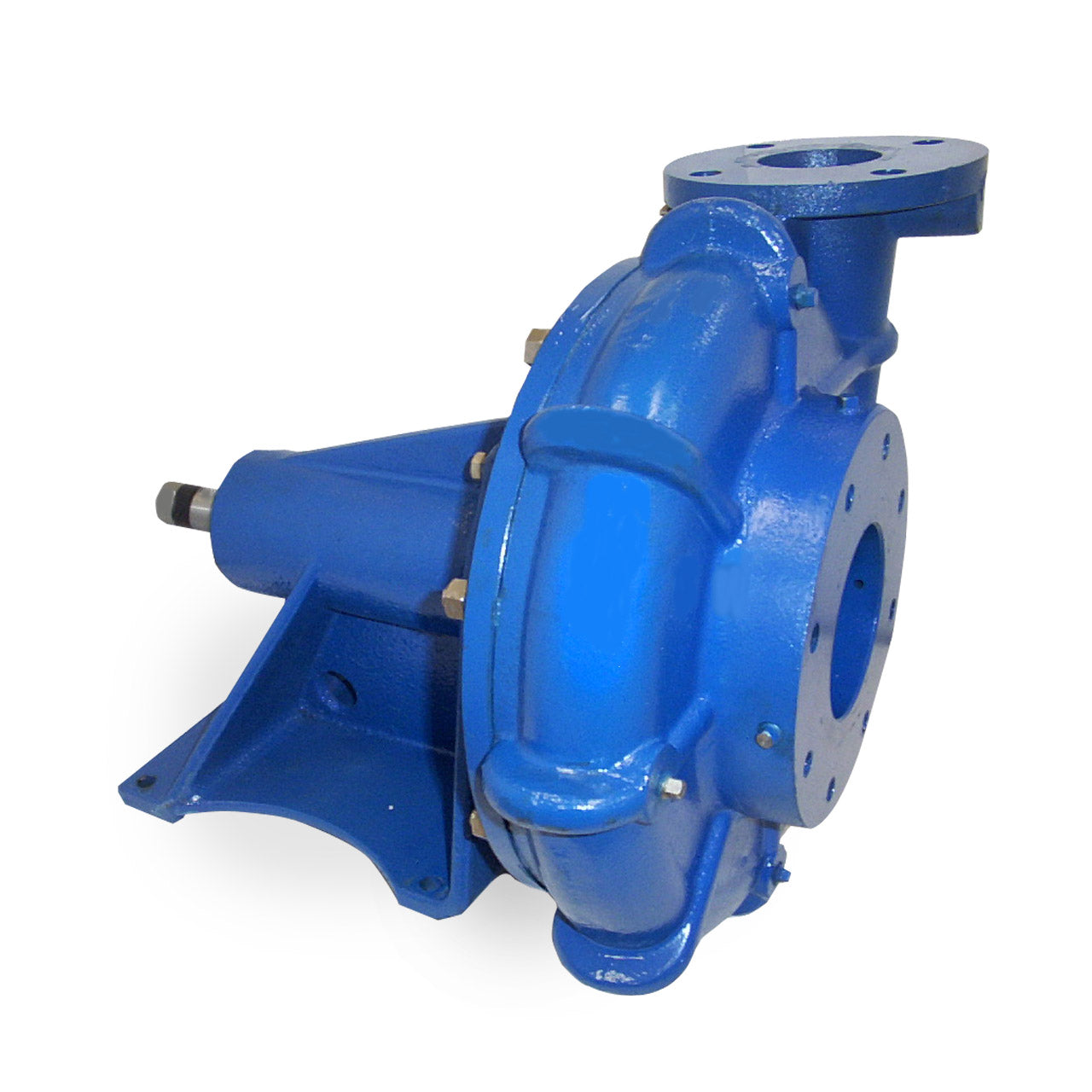

Power-Flo End Suction Centrifugal Pump Description

Suitable for general industrial use such as liquid transfer or as booster pumps.

Power-Flo End Suction Centrifugal Pump Typical Application

• Designed For Marine, Municipal and Industry
• Designed For The User Who Has A Separate Power Source Suitable For Driving Through Couplings or With Belts.

Power-Flo End Suction Centrifugal Pump Features

• DISCHARGE: 3” 125 lb. ANSI, Discharge Can be Placed in 8 Different Locations Depending on Piping Requirements
• SUCTION: 4”
• LIQUID TEMPERATURE: 180°F Continuous
• BODY: Cast Iron, ASTM Class 30, with Air Vent, Vacuum Pressure and Drain Plugs
• PEDESTAL: Cast Iron, Class 30
• IMPELLER: Enclosed Type, Dynamically Balanced, ISO G6.3, Bronze 81-3-7-9
• WEAR RING: Bronze
• SHAFT: Steel
• SHAFT SLEEVE: Bronze
• HARDWARE: Steel
• SEAL: Single Mechanical, Self lubrication, Carbon/Ni-Resist/Buna-N
• BEARING - PUMP END: Single Row, Ball, Pre-Greased at Factory, Load- Radial & Thrust
• BEARING - DRIVE END: Single Row, Ball, Pre-Greased at Factory, Load- Radial & Thrust
• WARRANTY: 1 Year

Power-Flo PF4030HCU Specifications

• DISCHARGE SIZE: 3.0" 125 lb Flange Included
• INLET SIZE: 4.0" 125 lb Flange Included
• MAXIMUM CAPACITY: 700 GPM
• MAXIMUM HEAD: 270'
• IMPELLER MATERIAL: Bronze 81-3-7-9, Enclosed Type, Dynamically Balanced
• BODY CONSTRUCTION: Cast Iron, ASTM, Class 30
• MAXIMUM LIQUID TEMPERATURE: 180°F Continuous

Power-Flo End Suction Centrifugal Pump Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Power-Flo End Suction Centrifugal Pump Product Resources

Download Power-Flo End Suction Centrifugal Pump Catalog Sheet

Download Power-Flo End Suction Centrifugal Pump Installation Manual
