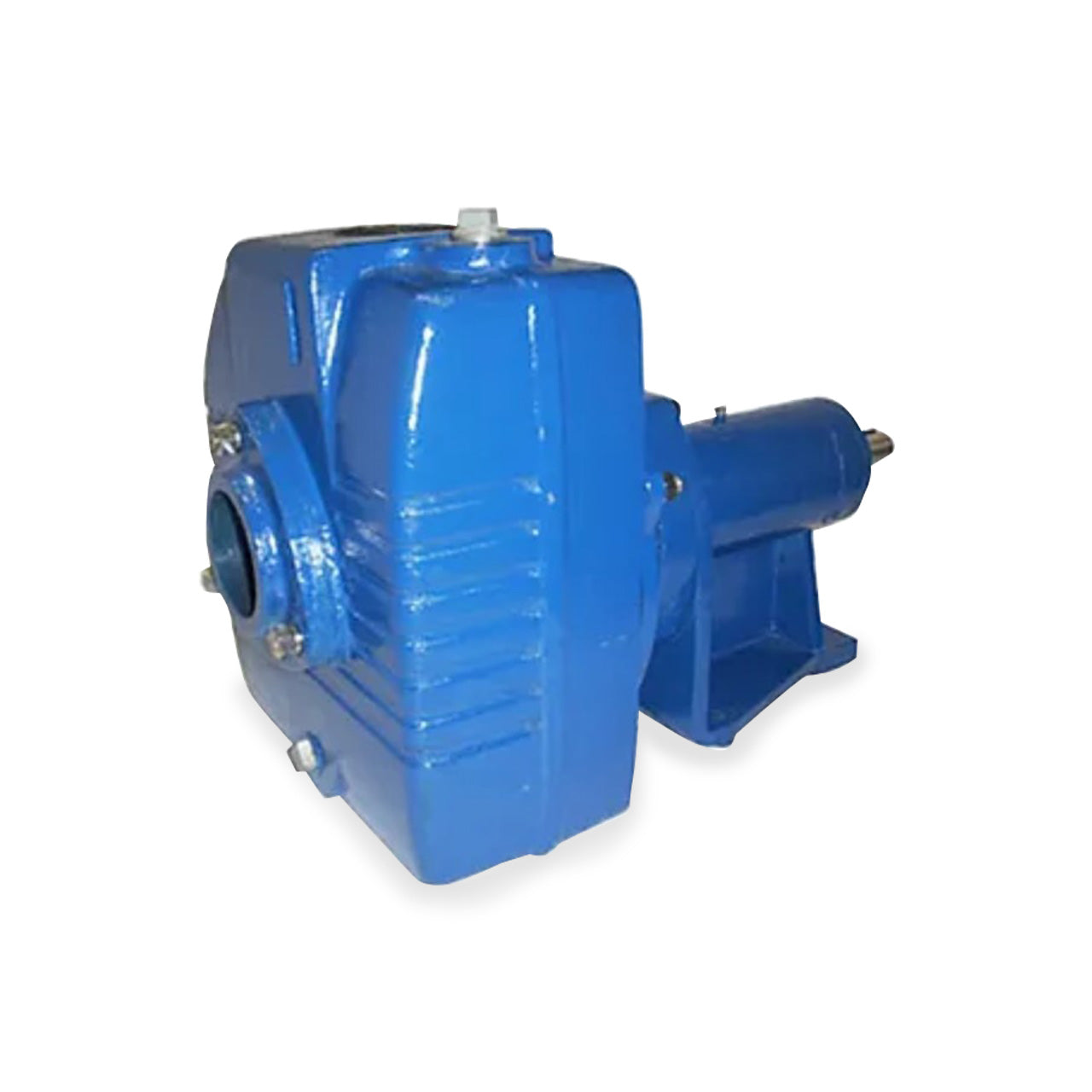

Power-Flo Self-Priming Centrifugal Frame Mounted Pump Description

Self-Priming centrifugal frame mounted pumps are designed for marine, municipal and industrial applications.

Power-Flo Self-Priming Centrifugal Frame Mounted Pump Typical Application

• Designed For Marine, Municipal and Industry
• Designed For The User Who Has A Separate Power Source Suitable For Driving Through Couplings Or With Belts.

Power-Flo Self-Priming Centrifugal Frame Mounted Pump Features

• SUCTION/DISCHARGE: 3” x 3”, NPT, Female
• LIQUID TEMPERATURE: 160°F Continuous
• VOLUTE: Removable, Cast Iron, ASTM, Class 30
• BODY: Cast Iron, ASTM, Class 30
• PEDESTAL: Cast Iron, ASTM, Class 30
• O-RINGS: Buna-N
• SHAFT: Stainless Steel
• SHAFT SLEEVE: Stainless Steel
• HARDWARE: Steel & Stainless Steel
• IMPELLER: Open, Trash Type, Dynamically Balanced, Cast Iron, Class 30
• SEAL: Single Mechanical, with Lip Seal , Grease Lubricated, Carbon/Ceramic/Buna-N
• CHECK VALVE: Valve Flap-Neoprene, Weight- Steel
• BEARING-DRIVE END: : Single Row, Ball, Grease Lubricated
• BEARING-PUMP END: : Single Row, Ball, Grease Lubricated
• WARRANTY: 1 Year

Power-Flo PF120ICU Specifications

• DISCHARGE SIZE: 3.0" NPT Female
• INLET SIZE: 3.0" NPT Female
• MAXIMUM CAPACITY: 310 GPM
• MAXIMUM HEAD: 132'
• IMPELLER MATERIAL: Cast Iron, Open, Trash Type Dynamically Balanced
• BODY CONSTRUCTION: Cast Iron, ASTM, Class 30
• MAXIMUM LIQUID TEMPERATURE: 160°F Continuous

Power-Flo Self-Priming Centrifugal Frame Mounted Pump Performance Curve

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Power-Flo Self-Priming Centrifugal Frame Mounted Pump Product Resources

Download Power-Flo Self-Priming Centrifugal Frame Mounted Pump Catalog Sheet

Download Power-Flo Self-Priming Centrifugal Frame Mounted Pump Installation Manual
