Discontinued - Power-Flo
Power-Flo PF2025CU9

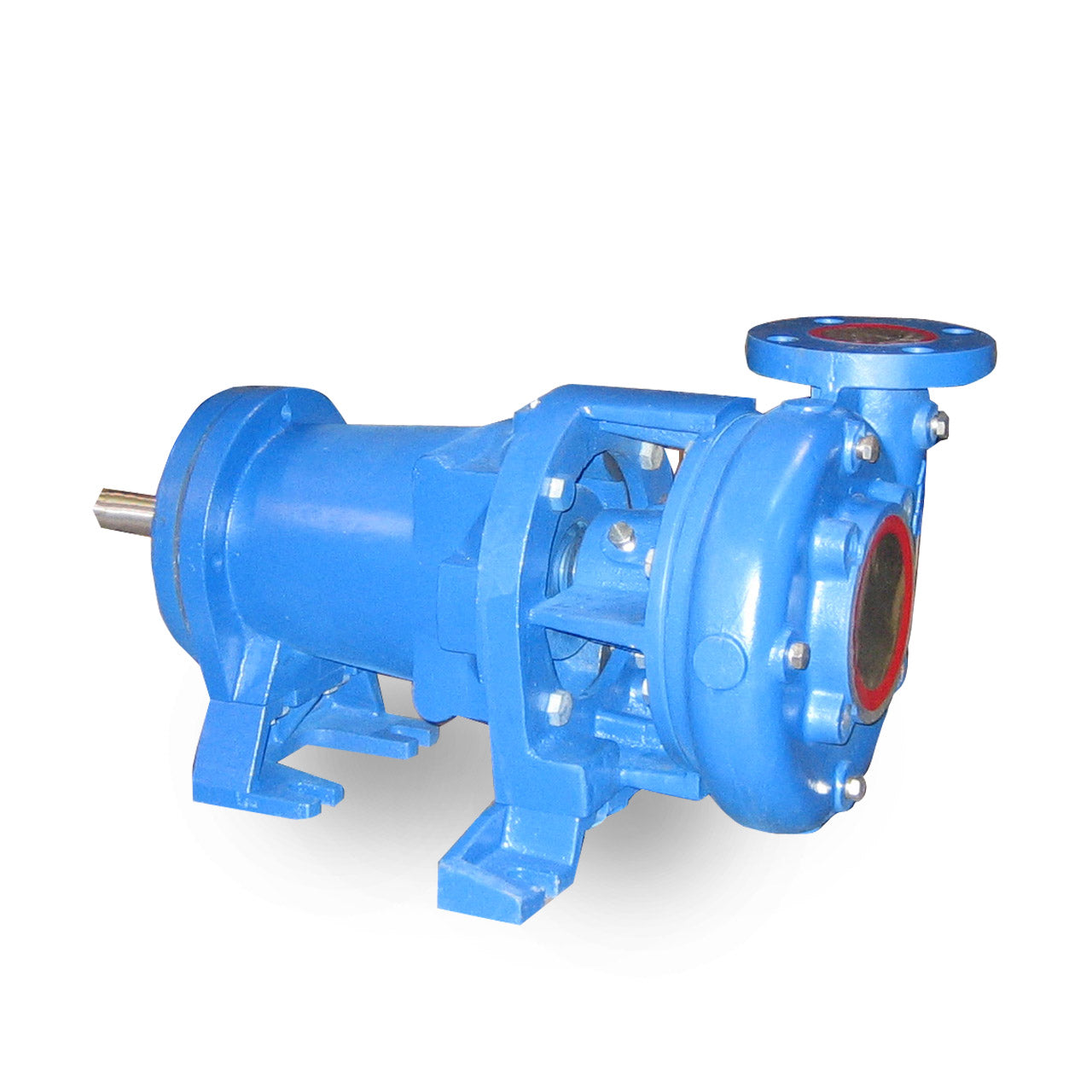

PF2025CU9 Is A 2" x 2.5" End Suction Centrifugal Pump Type B Frame-Mount Pump.
Power-Flo PF2025CU9 Typical Application
- Designed For Marine, Municipal and Industry
- Designed For The User Who Has A Separate Power Source Suitable For Driving Through Couplings Or With Belts.
Power-Flo PF2025CU9 Features
- ASTM A48 Cast Iron Casing with Back Pull-Out Design
- Stainless Steel AISI420 Shaft
- ASTM A48 Cast Iron Bracket & Frame
- Stainless Steel Hardware
Specifications
Specifications
Power-Flo PF2025CU9 Technical Details
- SEAL: Mechanical Type, Carbon/Buna-N/Ni-Resist
- BEARING-PUMP END: Single Row Ball, Grease Lubricated
- BEARING-DRIVE END: Single Row Ball, Grease Lubricated
- MAX HEAD: 95.0' @ 1750 RPM
- MAX FLOW RATE: 260.0 GPM @ 1750 RPM
- IMPELLER TYPE: Enclosed Type, Dynamically Balanced, ISO G6.3, 81-3-7-9 Bronze OR 304 Stainless
- WEAR RING: Bronze C95200
- SPHERICAL SOLIDS: 0.625"
- SUCTION: 2.5" 125 lb ANSI Flange Included
- DISCHARGE: 2.0" 125 lb ANSI Flange Included
Power-Flo PF2025CU9 Pump Performance Curve
